super-hands

Super Hands

Build Status npm Dowloads npm Version js-semistandard-style

Effortlessly add natural, intuitive interactions with tracked controller, touch, or mouse input in A-Frame.

Demo Gif

Super Hans Can't Make a Fist

Description

The super-hands component interprets input from controls and collision detection components into interaction gestures and communicates those gestures to target entities for them to respond.

The currently implemented gestures are:

  • Hover: Holding a controller in the collision space of an entity
  • Grab: Pressing a button while hovering an entity, potentially also moving it
  • Stretch: Grabbing an entity with two hands and resizing
  • Drag-drop: Dragging an entity onto another entity

For an entity to respond to the super-hands gestures, it needs to have components attached to translate the gestures into actions. super-hands includes components for typical reactions to the implemented gestures: hoverable, clickable, grabbable, stretchable, and drag-droppable.

Universal Progressive Controls: The progressive-controls component provides consistent interactivity on any viewer from desktop to full 6-DOF virtual reality by auto-detecting viewer capabilities.

Avatar Locomotion: Inspired by a demo from @caseyyee, the super-hands grab and stretch gestures can also serve as a comfortable locomotion system by moving and scaling the world around the player. Use the a-locomotor primitive to provide intuitive freedom of motion in your WebVR experiences.

Readme contents:

Examples

The examples page showcases a variety of configurations and use cases for super-hands.

Example Scene Description Target VR Devices MoCap preview
Progressive controls with physics Grab, stretch, and drag-drop cubes with simulated physical behavior on any VR platform Desktop, mobile, cardboard, Gear VR, Daydream, Vive, Rift Yes
Gaze and laser pointer controls without physics Showcase fallback controls used for simpler VR devices and fallback interactivity without physics simulation Desktop, mobile, cardboard, Gear VR, Daydream, Vive, Rift Yes
Global Event Handler integration An alternative way to customize interactions using familiar HTML event handler properties like onclick Desktop, mobile, cardboard, Gear VR, Daydream, Vive, Rift Yes
Link Portals Travel the metaverse with A-Frame link portals Desktop, mobile, cardboard, Gear VR, Daydream, Vive, Rift No
Grab-based locomotion Explore a scene by dragging or stretching the world around you Vive, Rift Yes
Custom button mapping Configuring schema properties to change button functions Vive, Rift No

Installation

Browser

Install and use by directly including the browser files:

<head>
  <title>Most Basic Super-Hands Example</title>
  <script src="https://aframe.io/releases/0.6.1/aframe.min.js"></script>
  <script src="//cdn.rawgit.com/donmccurdy/aframe-extras/v3.11.4/dist/aframe-extras.min.js"></script>
  <script src="https://unpkg.com/super-hands@2.0.1/dist/super-hands.min.js"></script>
</head>

<body>
  <a-scene>
    <a-assets></a-assets>
    <a-entity progressive-controls="objects: a-box"></a-entity>
    <!-- hover & drag-drop won't have any obvious effect without some additional event handlers or components. See the examples page for more -->
    <a-box hoverable grabbable stretchable drag-droppable
    color="blue" position="0 0 -1"></a-box>
  </a-scene>
</body>

npm

Install via npm:

npm install super-hands

Then require and use.

require('aframe');
require('super-hands');

News

v2.0.1

  • Bug fixes:
    • 'mouseup' now fires correctly on target entities
    • Fixed lingering hover when progressive-controls advances from gaze mode
    • Fixed lingering hovers when progressive-controls in point mode
    • Fixed some new files being excluded from babelify & breaking uglify

v2.0.0

  • Consistent experience across devices: super-hands now provides interactivity for all levels of VR controls: desktop mouse, mobile touch ("magic window"), cardboard button, 3DOF (GearVR and Daydram), and 6DOF (Vive and Oculus Touch)
    • progressive-controls meta-component to automatically setup interactive controls on any device from desktop to Vive
    • Upgraded grabbable reaction component.
      • Now works with pointing and moving at a distance, e.g. with 3DOF controllers and laser-controls, using controller orientation and position to move grabbed entities
  • Button mapping for reaction components: each reaction component now has startButtons and endButtons schema properties to specify acceptable buttons. This allows different entities to react to different buttons. For example a-locomotor's grabbable can be set to respond to different buttons than other grabbable entities so that grabbing entities and locomotion are separate gestures for the user.
  • a-locomotor now functions independently from colliders; removed add-to-colliders attribute.
  • Performance improvements in grabbable and stretchable
  • Gesture initiation changed to occur only on button press rather than button press and collision. Pressing a button in empty space and then moving into an object will no long scoop it up in a grab.

Previous news

Known Issues

  • When both hands are hovering an entity and one leaves, the entity will lose the hover state for one tick
    • Related to messaging from sphere-collider; unable to distinguish which collider instance is signaling the collision termination.
  • Two-handed physics grabs don't feel great
    • Someone that knows something about game dev could be smarter about the constraints

Compatibility

With progressive-controls, super-hands can provide interactive controls for any device: desktop, mobile ("magic window"), cardboard viewer + button, Daydream, GearVR, Vive, and Rift + Touch.

super-hands dependency version compatibility:

super-hands Version A-Frame Version aframe-extras Version aframe-physics-system Version
^v2.0.0 v0.6.x ^v3.11.4 ^v2.0.0
v1.1.0 v0.6.x v3.8.6 v1.4.2
v1.0.0 v0.5.x v3.8.5 v1.4.1
v0.2.4 v0.4.x v3.7.0 v1.3.0

Core, primitives, and meta-components

super-hands component

The super-hands component is the core of the library. It communicates gesture events to entities based on user-input and entity collisions. The component is generally placed on the controller entities (or the camera for gaze interaction) and depends on a collision detection component (e.g. cursor or aframe-extras sphere-collider) which needs to be placed on the same entity or a child entity of super-hands.

Component Schema

Property Description Default Value
colliderState Name of state added to entities by your chosen collider 'collided' (default for sphere-collider)
colliderEvent Event that your chosen collider emits when identifying a new collision 'hit' (default for sphere-collider and physics-collider)
colliderEventProperty Name of property in event details object which contains the collided entity 'el'
colliderEndEvent Event that your chosen collider emits when a collision ends ''
colliderEndEventProperty Name of property in event details object which contains the un-collided entity ''
grabStartButtons Array of button event types that can initiate grab Button press, touch start, and mouse down events
grabEndButtons Array of button event types that can terminate grab Button release, touch end, and mouse up events
stretchStartButtons Array of button event types that can initiate stretch Button press, touch start, and mouse down events
stretchEndButtons Array of button event types that can terminate stretch Button release, touch end, and mouse up events
dragDropStartButtons Array of button event types that can initiate dragging/hovering Button press, touch start, and mouse down events
dragDropEndButtons Array of button event types that can execute drag-drop Button release, touch end, and mouse up events

Default button events include specific events for vive-controls, hand-controls, oculus-touch-controls, daydream-controls, gearvr-controls, mouse, and touch. For detecting when collisions end, either colliderState or colliderEndEvent/colliderEndEventProperty can be used, depending on the API of the collider in use.

Gesture Events

Events will be emitted by the entity being interacted with. The entity that super-hands is attached to is sent in the event details as the property hand.

Type Description Target details object
hover-start Collided with entity collided entity hand: super-hands entity
hover-end No longer collided with entity collided entity hand: super-hands entity
grab-start Button pressed while collided with entity and hand is empty collided entity hand: super-hands entity
grab-end Button released after grab-start collided entity hand: super-hands entity
stretch-start Both controllers have button pressed while collided with entity collided entity hand: super-hands entity, secondHand: second controller entity
stretch-end Release of button after stretch-start collided entity hand: super-hands entity
drag-start Drag-drop button pressed while collided with entity and hand is empty collided entity hand: super-hands entity
drag-end Drag-drop button released while dragging an entity dragged entity hand: super-hands entity
dragover-start Collision with entity while dragging another entity collided entity & held entity hand: super-hands entity, hovered: collided entity, carried: held entity
dragover-end No longer collided with entity from dragover-start collided entity & held entity hand: super-hands entity, hovered: collided entity, carried: held entity
drag-drop Button released while holding an entity and collided with another collided entity & held entity hand: super-hands entity, dropped: carried entity, on (carried entity only): receiving entity

Notes:

  • References to buttons being "released" and "pressed" are dependent on the schema settings.
  • Only one entity at a time will be targeted for each event type, even if multiple overlapping collision zones exist. super-hands tracks a LIFO stack of collided entities to determine which will be affected.
  • drag-drop: For the receiving entity, on entry in the details is null. If needed, use event.target instead.
  • For events triggered by buttons, the triggering button event is passed along in details.buttonEvent

Global Event Handler Integration

In addition to the A-Frame style gesture events, super-hands also causes standard HTML events analogous to VR interactions to be emitted by the target entities. This allows the use of these common Global Event Handler properties on entities to add reaction directly in the HTML. View the related example to see this in use.

entity HTML attribute conditions event.relatedTarget
onmouseover hovering in an entity's collision zone super-hands entity
onmouseout leaving an entity's collision zone super-hands entity
onmousedown grab started while collided with entity super-hands entity
onmouseup grab ended while collided with entity controller entity
onclick grab started and then ended while collided with entity controller entity
ondragstart drag-drop started while collided with entity controller entity
ondragend drag-drop started while collided with entity controller entity
ondragenter hovering in an entity's collision zone while drag-dropping another entity the other entity*
ondragleave leaving an entity's collision zone while drag-dropping another entity the other entity*
ondrop drag-drop ended while holding an entity over a target the other entity*

The event passed to the handler will be a MouseEvent. At present the only property implemented is relatedTarget, which is set as listed in the table. Drag-dropping events will be dispatched on both the entity being dragged and the drop target, and the relatedTarget property for each will point to the other entity in the interaction.

progressive-controls component

The progressive-controls component makes it easy to design an interactive A-Frame scene that will work on any device. It automatically detects the viewing device, creates appropriate controller entities, and configures super-hands to work with the device. It is progressive because the degree of interactivity increases from gaze-based cursors (desktop, mobile, cardboard), to laser pointer controls (GearVR, Daydream), to natural hand interaction (Vive, Oculus).

Usage

Add progressive-controls to an entity, and it will create appropriate controller and camera entities as children automatically.

<a-entity progressive-controls></a-entity>

To add additional properties or override defaults, specify the entities you want to modify as children of the progressive-controls entity, following the pattern below. Controllers must be given class names 'right-controller' and 'left-controller' to help progressive-controls identify them.

<a-entity progressive-controls>
  <a-camera super-hands>
    <a-entity raycaster></a-entity>
  </a-camera>
  <a-entity class="right-controller" super-hands></a-entity>
  <a-entity class="left-controller" super-hands></a-entity>
</a-entity>

Component Schema

Property Description Default Value
maxLevel Limit the highest interactivity level that will be activated: 'gaze', 'point', or 'touch'. 'touch'
objects CSS selector string to be used by any automatically generated collision detectors '' (all entities)
physicsBody Properties to use when adding static-body to automatically generated controllers. Ignored if physics not added to the scene. 'shape: sphere; sphereRadius: 0.02'
touchCollider Name of collider component to use with touch-level controls 'sphere-collider'

Events

Type Description details object
'controller-progressed' The detected controller type has changed level: new control type, : 'gaze', 'point', or 'touch'

a-locomotor primitive

Add freedom of movement by wrapping the player avatar in an a-locomotor primitive. Users can then grab and move the world around themselves to navigate your WebVR experience in a way that is comfortable even for most people prone to simulation sickness.

The component works by wrapping the player in an entity that responds to grabbing and stretching gestures made on empty space and translates those into movement and scaling for player avatar. To function, the player camera and controllers must be children of a-locomotor. On initialization, a-locomotor will automatically set the default camera as a child unless it has been declared elsewhere (see schema below if you want to disable this), so setting up a-locomotor simply requires wrapping your controller entities like so:

<a-locomotor>
  <a-entity hand-controls="left" super-hands></a-entity>
  <a-entity hand-controls="right" super-hands></a-entity>
</a-locomotor>

a-locomotor does not require a collision detection component to function, so, if the only super-hands functionality you need is locomotion, you do not need to include sphere-collider components on your controllers (as in the above example). By default, a-locomotor gives the player the ability to move freely in the horizontal plane and to scale up or down. Behavior can be customized by setting the attributes below on the a-locomotor entity.

Primitive Attributes

Attribute Description Default Value
fetch-camera Make the default camera a child of a-locomotor so it can be moved with the player true
allow-movement Allow grabbing gestures to reposition the player true
horizontal-only Restrict movement to the X-Z plane true
allow-scaling Allow stretching gestures to rescale the player true

Events

Type Description Target Bubbles
'locomotor-ready' All auto-configuration steps complete a-locomotor yes

Reaction Components

Add these components to entities in your scene to make them react to super-hands gestures.

hoverable component

Used to indicate when the controller is within range to interact with an entity by adding the 'hovered' state. When using a mixin, including another mixin in the assets withe same id + '-hovered' will activate automatically, as in the examples.

States

Name Description
hovered Added to entity while it is collided with the controller

grabbable component

Makes and entity move along with the controller's movement and rotation while it is grabbed. grabbable works with up-close grabbing (6DOF controllers like Vive and Oculus Touch with hand-controls and sphere-collider) and with pointing at a distance (3DOF controllers like GearVR and Daydream with laser-controls).

This works best with aframe-physics-system to manage grabbed entity movement including position and rotation, but it will fallback to manual position updates (without rotation) if physics is not available or is disabled with usePhysics = never.

Allows for multiple hands to register a grab on an entity. In a non-physics setup, this has no effect other than allowing smooth passing of entities between hands. With physics enabled, additional grabbing hands register their own physics constraints to allow for two-handed wielding of entities. Limit or disable this by setting the maxGrabbers schema property.

Component Schema

Property Description Default Value
startButtons Which button events to accept to start grab []
endButtons Which button events to accept to end grab []
usePhysics Whether to use physics system constraints to handle movement, 'ifavailable', 'only', or 'never' 'ifavailable'
maxGrabbers Limit number of hands that can grab entity simultaneously NaN (no limit)
invert Reverse direction of entity movement compared to grabbing hand false
suppressY Allow movement only in the horizontal plane false

The default for startButtons and endButtons is to accept any button recognized by super-hands grabStartButtons and grabDropEndButtons.

States

Name Description
grabbed Added to entity while it is being carried

clickable component

An alternative version of grabbable that registers that a button was pressed, but does not move the entity. Do not use clickable and grabbable on the same entity (just use grabbable and watch the "grabbed" state instead of "clicked")

Property Description Default Value
startButtons Which button events to accept to start grab []
endButtons Which button events to accept to end grab []

The default for startButtons and endButtons is to accept any button recognized by super-hands grabStartButtons and grabDropEndButtons.

States

Name Description
clicked Added to entity while a button is held down

stretchable component

Makes and entity rescale while grabbed by both controllers as they are moved closer together or further apart.

Component Schema

Property Description Default Value
startButtons Which button events to accept to start stretch []
endButtons Which button events to accept to end stretch []
usePhysics Whether to update physics body shapes with scale changes, 'ifavailable' or 'never' 'ifavailable'
invert Reverse the direction of scaling in relation to controller movement false

The default for startButtons and endButtons is to accept any button recognized by super-hands stretchStartButtons and stretchEndButtons.

There is no CANNON api method for updating physics body scale, but stretchable will manually rescale basic shapes. Currently rescalable shapes are: box and sphere.

States

Name Description
stretched Added to entity while it is grabbed with two hands

drag-droppable component

drag-droppable is a shell component that only manages the 'dragover' state for the entity. This can be combined with with a '-dragover' mixin to easily highlight when an entity is hovering in a drag-drop location.

For interactivity, use the global event handler integration, the event-set from kframe with the drag-dropped event, or create your own component.

Component Schema

Property Description Default Value
startButtons Which button events to accept to start drag []
endButtons Which button events to accept to end drag []

The default for startButtons and endButtons is to accept any button recognized by super-hands dragDropStartButtons and dragDropEndButtons.

States

Name Description
dragover Added to while a carried entity is colliding with a a drag-droppable entity

Add drag-droppable to both the carried entity and the receiving entity if you want both of them to receive the dragover state.

Customizing interactivity

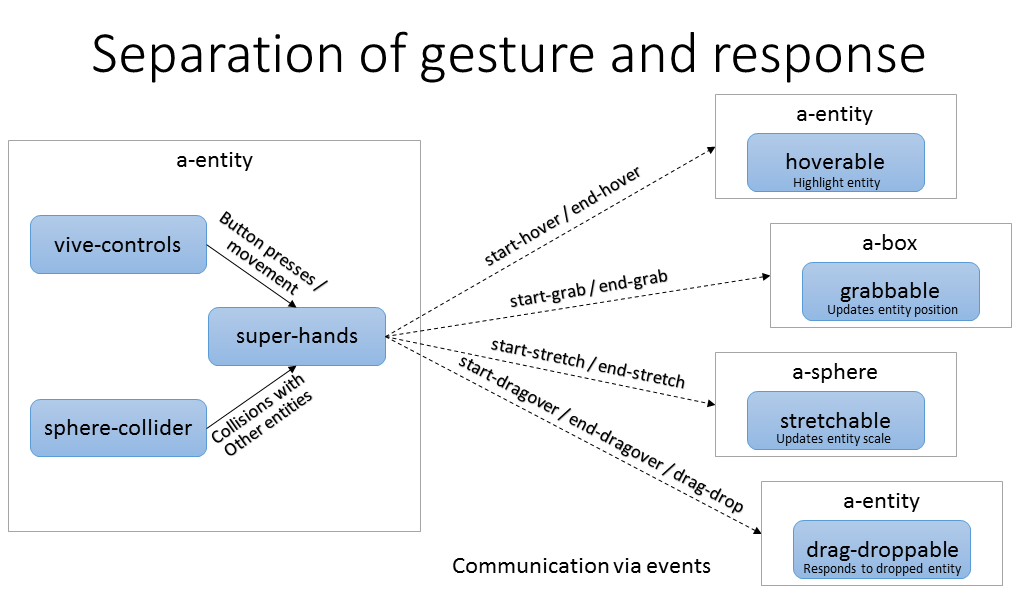

Gesture and Response Concept

Separation of Gesture and Response API

Separating the reaction to be the responsibility of the entity affected allows for extensibility. In response to a grab, you may want some entities to lock to the controller and move, others to rotate around a fixed point, and others still to spawn a new entity but remain unchanged. With this API schema, these options can be handled by adding or creating different reaction components to the entities in your scene, and super-hands can work with all of them.

Interactivity

There are two pathways to adding additional interactivity.

  1. A-Frame style: Each component's API documentation describes the A-Frame custom events and states it uses. These are best processed by creating new A-Frame components that register event listeners and react accordingly.
  2. HTML style: The super-hands component also integrates with the Global Event Handlers Web API to trigger standard mouse events analogous to the VR interactions that can easily be handled through properties like onclick.
