GTFS Accessibility Validator



Validate GTFS transit data accessibility fields

NPM


gtfs-accessibility-validator checks transit data in GTFS format for fields and files related to accessibility.

It checks for:

  • wheelchair_accessible field in trips.txt
  • wheelchair_boarding field in stops.txt
  • tts_stop_name field in stops.txt
  • levels.txt file
  • pathways.txt file
  • Contrast ratio between route_color and route_text_color in routes.txt

These accessibility guidelines are taken from the California Transit Data Guidelines published by Caltrans.

💡 Hosted Web Version Available: A web-based version of this validator is available at https://validator.blinktag.com

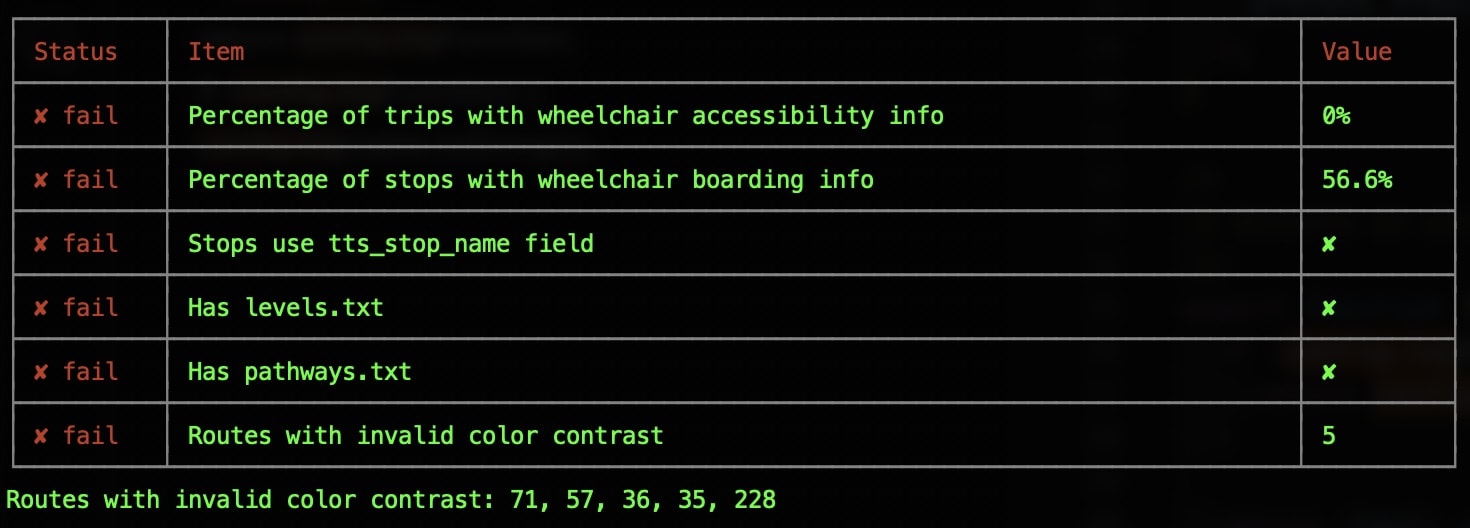

GTFS Accessibility Validator Example Output

Example output from GTFS Accessibility Validator

wheelchair_accessible field in trips.txt

Guideline: The wheelchair_boarding field has a valid, non-empty, and non-null value for every entry in the stops.txt file.

Transit riders with wheelchairs and other mobility aids encounter distinct challenges in accessing transit, including uncertainty as to whether they can board and alight at particular locations using their devices.

Transit providers should support the ability of these riders to plan and take trips on transit by publishing information about the locations where wheelchair users can and cannot access the system in trip-planning applications.

wheelchair_boarding field in stops.txt

Guideline: The wheelchair_accessible field has a valid, non-empty, and non-null value for every entry in the trips.txt file.

Transit riders with wheelchairs and other mobility aids encounter distinct challenges in accessing transit, including the uncertainty as to whether their devices can be used on specific scheduled trips.

Transit providers should support the ability of these riders to plan and take trips on transit by publishing information about the trips on which wheelchair users may or may not be able to travel in trip-planning applications.

tts_stop_name field in stops.txt

Guideline: The tts_stop_name field should include correct pronunciation for all stop names in stops.txt that are commonly mispronounced in trip-planning applications.

Audio annunciation of stop names is an important wayfinding tool for transit riders with visual impairments.

Transit providers should support the ability of these riders to conveniently and accurately plan and take trips on transit by ensuring that stop names will be pronounced correctly in trip-planning applications.

BlinkTag created a different open source tool to review GTFS stop name pronunciations and determine which stops need a tts_stop_name value. See GTFS Text-to-Speech Tester.

levels.txt and pathways.txt files

Guideline: Sufficient data is included within stops.txt, pathways.txt, and levels.txt to navigate to, from, and between any boarding zone to street level with varying physical abilities, including pathway_mode and stair_count where applicable. This includes but is not limited to any stops that use parent_station in stops.txt as well as all significant or named transit facilities where an infrequent visitor may be concerned about accessibility.

Transit riders with wheelchairs and other mobility aids encounter distinct challenges in accessing transit, including uncertainty about navigating between boarding zones and street level at stops.

Transit providers should support the ability of these riders to plan and take trips on transit by providing sufficient information for them to find accessible paths on and off transit using mobile applications.

Contrast ratio between route_color and route_text_color in routes.txt

Guideline: WCAG AA Large Text Contrast

Routes are often identified using the route_color field in routes.txt. Often, the route_short_name is used as text on top of the route_color using the route_text_color.

Installation

If you would like to use this library as a command-line utility, you can install it globally directly from npm:

npm install gtfs-accessibility-validator -g

Or you can use it directly via npx:

npx gtfs-accessibility-validator --gtfsUrl https://agency.com/gtfs.zip

If you are using this as a node module as part of an application, you can include it in your project's package.json file.

Quick Start

There are three ways to use the Accessibility Validator: the web-based version, as a command-line utility, or as part of a node.js app.

Command-line example

Run via npx:

npx gtfs-accessibility-validator --gtfsPath /path/to/your/gtfs

npx gtfs-accessibility-validator --gtfsUrl https://agency.com/gtfs.zip

If installed globally:

gtfs-accessibility-validator --gtfsPath /path/to/your/gtfs

gtfs-accessibility-validator --gtfsUrl https://agency.com/gtfs.zip

Code example

import gtfsAccessibilityValidator from 'gtfs-accessibility-validator';

const config = {
  gtfsPath: '/path/to/gtfs'
}

gtfsAccessibilityValidator(config)
  .then((outputStatus) => {
    console.log(outputStats);
  })
  .catch((err) => {
    console.error(err);
  });

Running

To validate GTFS accessibility, run gtfs-accessibility-validator.

gtfs-accessibility-validator --gtfsPath /path/to/your/gtfs.zip

Options

gtfsPath

Specify a local path to GTFS, either zipped or unzipped.

gtfs-accessibility-validator --gtfsPath /path/to/your/gtfs.zip

or

gtfs-accessibility-validator --gtfsPath /path/to/your/unzipped/gtfs

gtfsUrl

Specify a URL to a zipped GTFS file.

gtfs-accessibility-validator --gtfsUrl http://www.bart.gov/dev/schedules/google_transit.zip

skipImport

Skips importing GTFS into SQLite. Useful if you are rerunning with an unchanged GTFS file. If you use this option and the GTFS file hasn't been imported or you don't have an sqlitePath to a non-in-memory database, you'll get an error.

gtfs-accessibility-validator --skipImport

Contributing

Pull requests are welcome, as is feedback and reporting issues.
