    FlexLayout

    GitHub npm npm

    FlexLayout is a layout manager that arranges React components in multiple tab sets, tabs can be resized and moved.

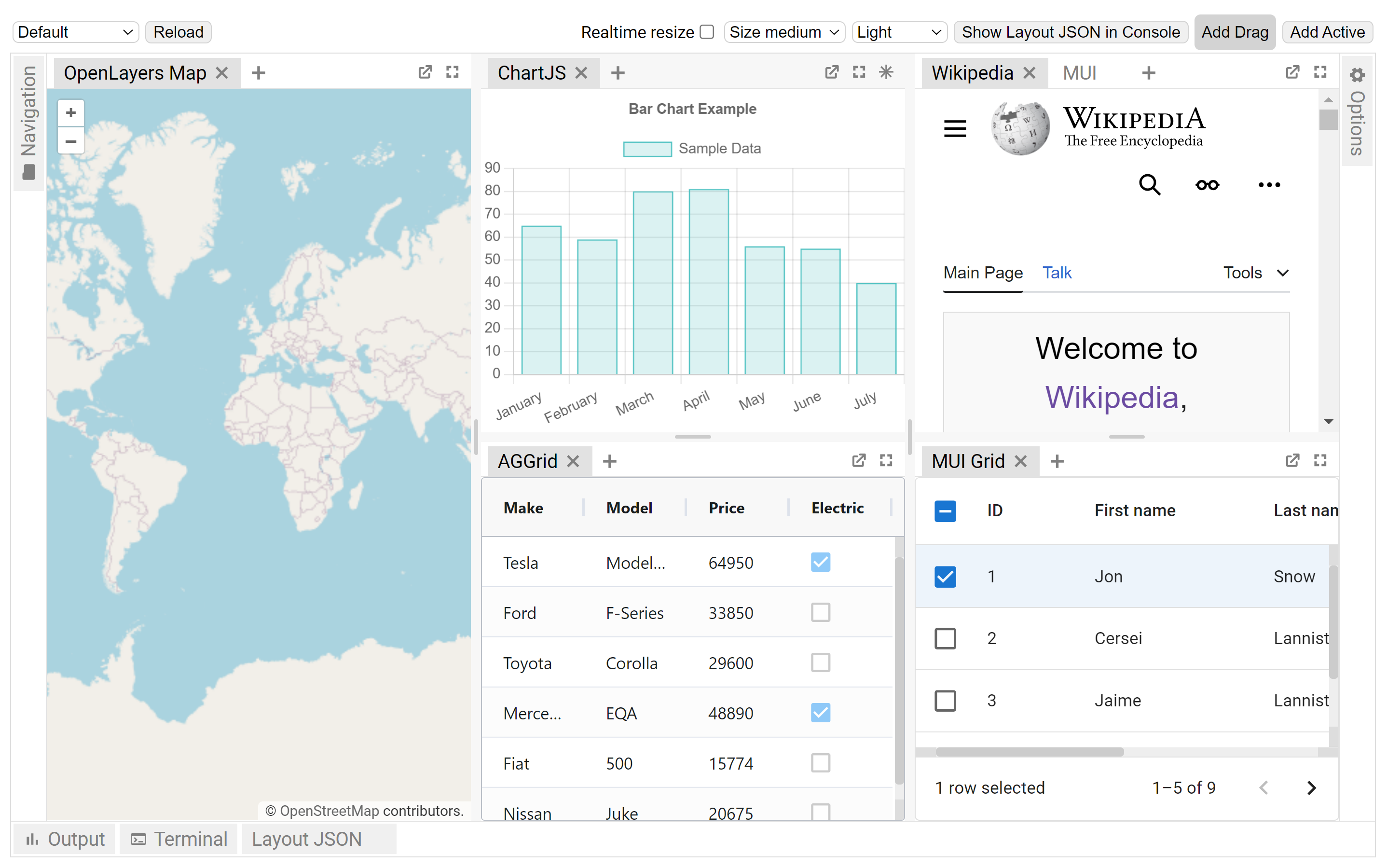

    FlexLayout Demo Screenshot

    Run the Demo

    Try it now using JSFiddle

    API Doc

    Screenshot of Caplin Liberator Explorer using FlexLayout

    FlexLayout's only dependencies are React and uuid.

    Features:

    • splitters
    • tabs
    • tab dragging and ordering
    • tabset dragging (move all the tabs in a tabset in one operation)
    • dock to tabset or edge of frame
    • maximize tabset (double click tabset header or use icon)
    • tab overflow (show menu when tabs overflow, scroll tabs using mouse wheel)
    • border tabsets
    • popout tabs into new browser windows
    • submodels, allow layouts inside layouts
    • tab renaming (double click tab text to rename)
    • theming - light, underline, gray and dark
    • touch events - works on mobile devices (iPad, Android)
    • add tabs using drag, indirect drag, add to active tabset, add to tabset by id
    • preferred pixel size tabsets (try to keep their size when window resizes)
    • headed tabsets
    • tab and tabset attributes: enableHeader, enableTabStrip, enableDock, enableDrop...
    • customizable tabs and tabset header rendering
    • typescript type declarations included

    Installation

    FlexLayout is in the npm repository. Simply install React and FlexLayout from npm:

    npm install react
    npm install react-dom
    npm install flexlayout-react


    Import React and FlexLayout in your modules:

    import * as React from "react";
    import { createRoot } from "react-dom/client";
    import * as FlexLayout from "flexlayout-react";


    Include the light, underline, gray or dark style in your html:

    <link rel="stylesheet" href="node_modules/flexlayout-react/style/light.css" />


    Usage

    The <Layout> component renders the tabsets and splitters, it takes the following props:

    Required props:

    Prop Description
    model the layout model
    factory a factory function for creating React components

    Additional optional props

    The model is tree of Node objects that define the structure of the layout.

    The factory is a function that takes a Node object and returns a React component that should be hosted by a tab in the layout.

    The model can be created using the Model.fromJson(jsonObject) static method, and can be saved using the model.toJson() method.

    this.state = {model: FlexLayout.Model.fromJson(json)};

    render() {
    	<FlexLayout.Layout model={this.state.model} factory={factory}/>
    }

    Example Configuration:

    var json = {
        global: {},
        borders: [],
        layout: {
            type: "row",
            weight: 100,
            children: [
                {
                    type: "tabset",
                    weight: 50,
                    children: [
                        {
                            type: "tab",
                            name: "One",
                            component: "button",
                        }
                    ]
                },
                {
                    type: "tabset",
                    weight: 50,
                    children: [
                        {
                            type: "tab",
                            name: "Two",
                            component: "button",
                        }
                    ]
                }
            ]
        }
    };

    Example Code

    import * as React from "react";
    import { createRoot } from "react-dom/client";
    import * as FlexLayout from "flexlayout-react";

    class Main extends React.Component {

        constructor(props) {
            super(props);
            this.state = {model: FlexLayout.Model.fromJson(json)};
        }

        factory = (node) => {
            var component = node.getComponent();
            if (component === "button") {
                return <button>{node.getName()}</button>;
            }
        }

        render() {
            return (
                <FlexLayout.Layout model={this.state.model} factory={this.factory}/>
            )
        }
    }

    const root = createRoot(document.getElementById("container"));
    root.render(<Main/>);

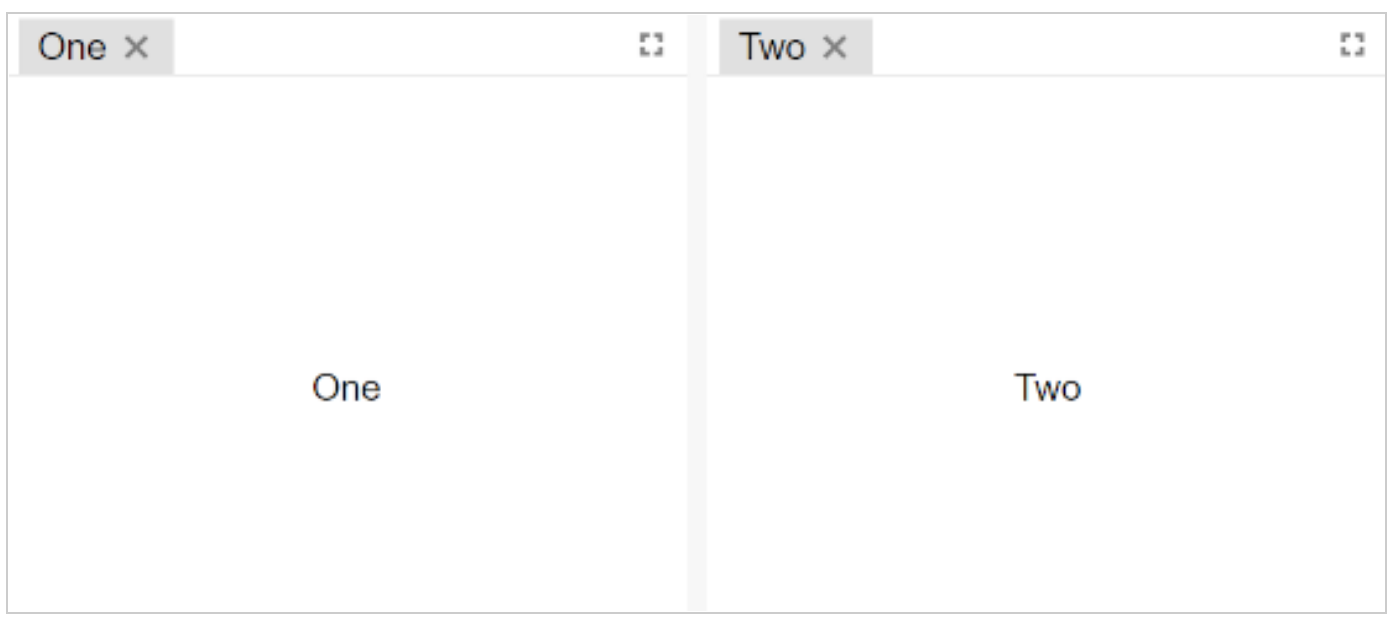

    The above code would render two tabsets horizontally each containing a single tab that hosts a button component. The tabs could be moved and resized by dragging and dropping. Additional grids could be added to the layout by sending actions to the model.

    Try it now using JSFiddle

    A simple Typescript example can be found here:

    https://github.com/nealus/FlexLayout_cra_example

    The model is built up using 4 types of 'node':

    • row - rows contains a list of tabsets and child rows, the top level 'row' will render horizontally (unless the global attribute rootOrientationVertical is set) , child 'rows' will render in the opposite orientation to their parent.

    • tabset - tabsets contain a list of tabs and the index of the selected tab

    • tab - tabs specify the name of the component that they should host (that will be loaded via the factory) and the text of the actual tab.

    • border - borders contain a list of tabs and the index of the selected tab, they can only be used in the borders top level element.

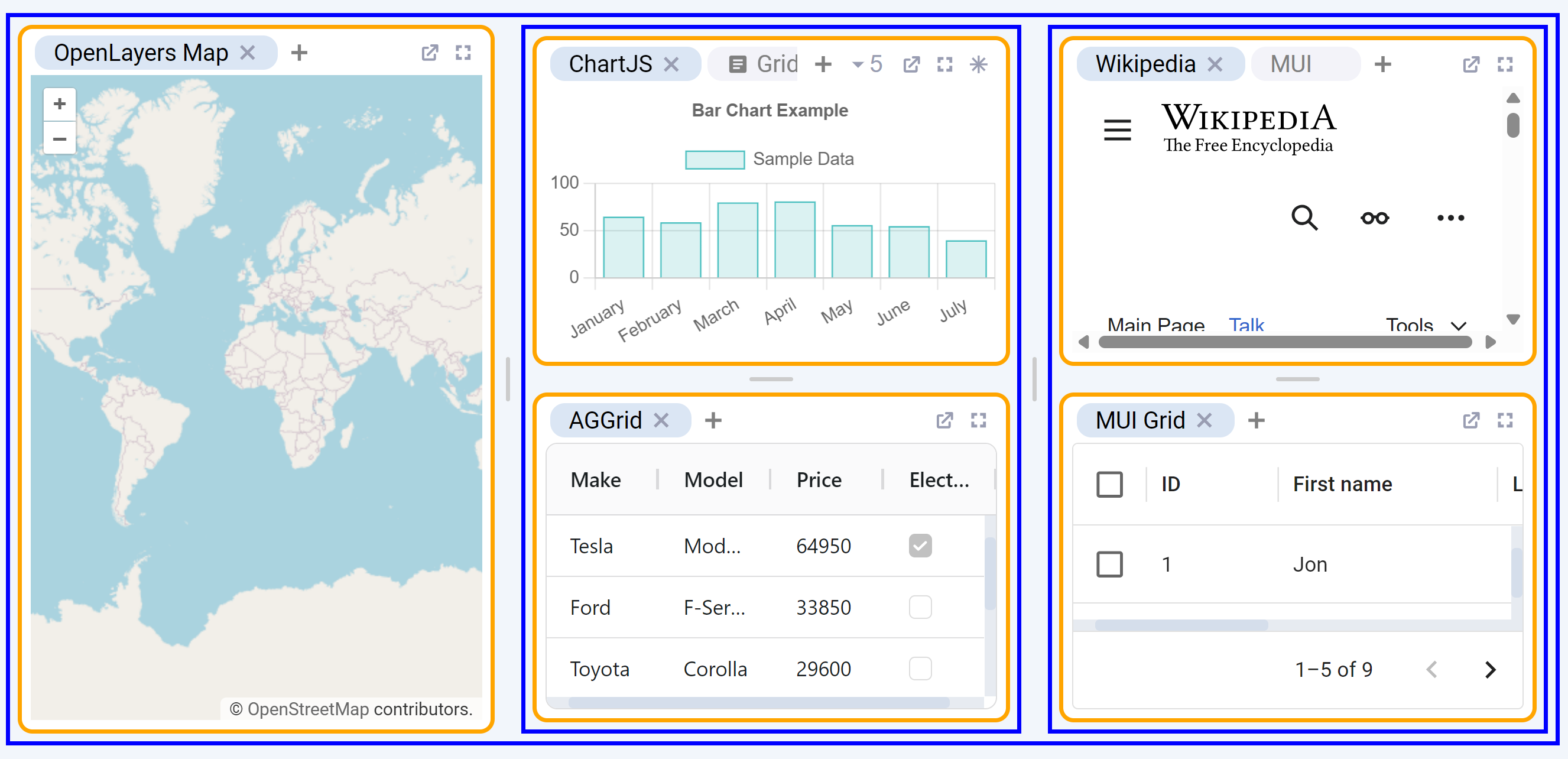

    The main layout is defined with rows within rows that contain tabsets that themselves contain tabs.

    The model json contains 3 top level elements:

    • global - where global options are defined
    • layout - where the main row/tabset/tabs layout hierarchy is defined
    • borders - (optional) where up to 4 borders are defined ("top", "bottom", "left", "right").

    Weights on rows and tabsets specify the relative weight of these nodes within the parent row, the actual values do not matter just their relative values (ie two tabsets of weights 30,70 would render the same if they had weights of 3,7).

    NOTE: the easiest way to create your initial layout JSON is to use the demo app, modify one of the existing layouts by dragging/dropping and adding nodes then press the 'Show Layout JSON in console' button to print the JSON to the browser developer console.

    example borders section:

        borders: [
             {
                type: "border",
                location: "left",
                children: [
                    {
                        type: "tab",
                        enableClose: false,
                        name: "Navigation",
                        component: "grid",
                    }
                ]
            },
            {
                type: "border",
                location: "right",
                children: [
                    {
                        type: "tab",
                        enableClose: false,
                        name: "Options",
                        component: "grid",
                    }
                ]
            },
            {
                type: "border",
                location: "bottom",
                children: [
                    {
                        type: "tab",
                        enableClose: false,
                        name: "Activity Blotter",
                        component: "grid",
                    },
                    {
                        type: "tab",
                        enableClose: false,
                        name: "Execution Blotter",
                        component: "grid",
                    }
                ]
            }
        ]


    To control where nodes can be dropped you can add a callback function to the model:

    model.setOnAllowDrop(this.allowDrop);


    example:

        allowDrop(dragNode, dropInfo) {
            let dropNode = dropInfo.node;

            // prevent non-border tabs dropping into borders
            if (dropNode.getType() == "border" && (dragNode.getParent() == null || dragNode.getParent().getType() != "border"))
                return false;

            // prevent border tabs dropping into main layout
            if (dropNode.getType() != "border" && (dragNode.getParent() != null && dragNode.getParent().getType() == "border"))
                return false;

            return true;
        }


    By changing global or node attributes you can change the layout appearance and functionality, for example:

    Setting tabSetEnableTabStrip:false in the global options would change the layout into a multi-splitter (without tabs or drag and drop).

     global: {tabSetEnableTabStrip:false},


    Floating Tabs (Popouts)

    Tabs can be rendered into external browser windows (for use in multi-monitor setups) by configuring them with the enableFloat attribute. When this attribute is present an additional icon is shown in the tab header bar allowing the tab to be popped out into an external window.

    For popouts to work there needs to be an additional html page 'popout.html' hosted at the same location as the main page (copy the one from examples/demo). The popout.html is the host page for the popped out tab, the styles from the main page will be copied into it at runtime.

    Because popouts are rendering into a different document to the main layout any code in the popped out tab that uses the global document or window objects will not work correctly (for example custom popup menus), they need to instead use the document/window of the popout. To get the document/window of the popout use the following method on one of the elements rendered in the popout (for example a ref or target in an event handler):

        const currentDocument = this.selfRef.current.ownerDocument;
        const currentWindow = currentDocument.defaultView!;


    In the above code selfRef is a React ref to the toplevel element in the tab being rendered.

    Note: some libraries support popout windows by allowing you to specify the document to use, for example see the getDocument() callback in agGrid at https://www.ag-grid.com/javascript-grid-callbacks/

    Optional Props

    Prop Description
    font the tab font (overrides value in css). Example: font={{size:"12px", style:"italic"}}
    icons object mapping keys among close, maximize, restore, more, popout to React nodes to use in place of the default icons, can alternatively return functions for creating the React nodes
    onAction function called whenever the layout generates an action to update the model (allows for intercepting actions before they are dispatched to the model, for example, asking the user to confirm a tab close.) Returning undefined from the function will halt the action, otherwise return the action to continue
    onRenderTab function called when rendering a tab, allows leading (icon), content section, buttons and name used in overflow menu to be customized
    onRenderTabSet function called when rendering a tabset, allows header and buttons to be customized
    onModelChange function called when model has changed
    onExternalDrag function called when an external object (not a tab) gets dragged onto the layout, with a single dragenter argument. Should return either undefined to reject the drag/drop or an object with keys dragText, jsonDrop, to create a tab via drag (similar to a call to addTabToTabSet). Function onDropis passed the added tabNodeand thedrop DragEvent`, unless the drag was canceled.
    classNameMapper function called with default css class name, return value is class name that will be used. Mainly for use with css modules.
    i18nMapper function called for each I18nLabel to allow user translation, currently used for tab and tabset move messages, return undefined to use default values
    supportsPopout if left undefined will do simple check based on userAgent
    popoutURL URL of popout window relative to origin, defaults to popout.html
    realtimeResize boolean value, defaults to false, resize tabs as splitters are dragged. Warning: this can cause resizing to become choppy when tabs are slow to draw
    onTabDrag function called while dragging a tab, whether from the layout or using addTabWithDragAndDrop. Called with the TabNode being dragged / the tab json from addTabWithDragAndDrop, the TabNode being dragged over, the x and y coordinates relative to the dragged-over tab, and the DockLocation that would be used. Should return undefined for default behavior, or an object containing x, y, width, height, callback, cursor fields. Coordinates are in pixels relative to the dragged-over tab, and callback will be called with the same arguments if the tab is dropped. cursor is an optional string field that should contain a CSS cursor value, such as copy or row-resize. If callback is called, the layout does not perform its default behavior on drop.
    onRenderDragRect callback for rendering the drag rectangles
    onRenderFloatingTabPlaceholder callback for rendering the floating tab placeholder
    onContextMenu callback for handling context actions on tabs and tabsets
    onAuxMouseClick callback for handling mouse clicks on tabs and tabsets with alt, meta, shift keys, also handles center mouse clicks
    onShowOverflowMenu callback for handling the display of the tab overflow menu
    onTabSetPlaceHolder callback for rendering a placeholder when a tabset is empty
    iconFactory a factory function for creating icon components for tab bar buttons.

    NOTE: for greater customization of the tab use onRenderTab instead of this callback
    titleFactory a factory function for creating title components for tab bar buttons.

    NOTE: for greater customization of the tab use onRenderTab instead of this callback

    Global Config attributes

    Attributes allowed in the 'global' element

    Attribute Default Description
    splitterSize 8 width in pixels of all splitters between tabsets/borders
    splitterExtra 0 additional width in pixels of the splitter hit test area
    legacyOverflowMenu false use the legacy text only overflow menu
    enableEdgeDock true
    tabEnableClose true allow user to close all tabs via close button
    tabCloseType 1 see values in ICloseType
    tabEnableDrag true allow user to drag all tabs to new location
    tabEnableRename true allow user to rename all tabs by double clicking
    tabEnableFloat false enable popouts in all tabs (in popout capable browser)
    tabClassName null
    tabIcon null
    tabEnableRenderOnDemand true whether to avoid rendering component until tab is visible
    tabDragSpeed 0.3 CSS transition speed of drag outlines (in seconds)
    tabBorderWidth -1 width when added to border, -1 will use border size
    tabBorderHeight -1 height when added to border, -1 will use border size
    tabSetEnableDeleteWhenEmpty true
    tabSetEnableDrop true allow user to drag tabs into all tabsets
    tabSetEnableDrag true allow user to drag tabs out of all tabsets
    tabSetEnableDivide true allow user to drag tabs to region of all tabsets, splitting into new tabset
    tabSetEnableMaximize true allow user to maximize all tabsets to fill view via maximize button
    tabSetEnableClose false allow user to close all tabsets via close button
    tabSetAutoSelectTab true whether to select new/moved tabs in all tabsets
    tabSetClassNameTabStrip null height in pixels of tab strips in all tabsets
    tabSetClassNameHeader null
    tabSetEnableTabStrip true enable tab strip and allow multiple tabs in all tabsets
    tabSetHeaderHeight 0 height of tabset header in pixels; if left as 0 then the value will be calculated from the current fontSize
    tabSetTabStripHeight 0 height of tabset tab bar in pixels; if left as 0 then the value will be calculated from the current fontSize
    borderBarSize 0 size of the border bars in pixels; if left as 0 then the value will be calculated from the current fontSize
    borderEnableAutoHide false hide border if it has zero tabs
    borderEnableDrop true allow user to drag tabs into this border
    borderAutoSelectTabWhenOpen true whether to select new/moved tabs in border when the border is already open
    borderAutoSelectTabWhenClosed false whether to select new/moved tabs in border when the border is curently closed
    borderClassName null
    borderSize 200 initial width in pixels for left/right borders, height for top/bottom borders
    borderMinSize 0 minimum width in pixels for left/right borders, height for top/bottom borders
    tabSetMinHeight 0 minimum width (in px) for all tabsets
    tabSetMinWidth 0 minimum height (in px) for all tabsets
    tabSetTabLocation top show tabs in location top or bottom
    rootOrientationVertical false the top level 'row' will layout horizontally by default, set this option true to make it layout vertically

    Row Attributes

    Attributes allowed in nodes of type 'row'.

    Attribute Default Description
    type row
    weight 100
    width null preferred pixel width
    height null preferred pixel height
    children required a list of row and tabset nodes

    Tab Attributes

    Attributes allowed in nodes of type 'tab'.

    Inherited defaults will take their value from the associated global attributes (see above).

    Attribute Default Description
    type tab
    name required name of tab to be displayed in the tab button
    altName optional if there is no name specifed then this value will be used in the overflow menu
    component required string identifying which component to run (for factory)
    config null a place to hold json config for the hosted component
    id auto generated
    helpText optional An optional help text for the tab to be displayed upon tab hover.
    enableClose inherited allow user to close tab via close button
    closeType inherited see values in ICloseType
    enableDrag inherited allow user to drag tab to new location
    enableRename inherited allow user to rename tabs by double clicking
    enableFloat inherited enable popout (in popout capable browser)
    floating false
    className inherited
    icon inherited
    enableRenderOnDemand inherited whether to avoid rendering component until tab is visible
    borderWidth inherited width when added to border, -1 will use border size
    borderHeight inherited height when added to border, -1 will use border size

    Tab nodes have a getExtraData() method that initially returns an empty object, this is the place to add extra data to a tab node that will not be saved.

    TabSet Attributes

    Attributes allowed in nodes of type 'tabset'.

    Inherited defaults will take their value from the associated global attributes (see above).

    Note: tabsets can be dynamically created as tabs are moved and deleted when all their tabs are removed (unless enableDeleteWhenEmpty is false).

    Attribute Default Description
    type tabset
    weight 100 relative weight for sizing of this tabset in parent row
    width null preferred pixel width
    height null preferred pixel height
    name null named tabsets will show a header bar above the tabs
    config null a place to hold json config used in your own code
    selected 0 index of selected/visible tab in tabset
    maximized false whether tabset is currently maximized to fill view
    enableClose false allow user to close tabset via a close button
    id auto generated
    children required a list of tab nodes
    enableDeleteWhenEmpty inherited
    enableDrop inherited allow user to drag tabs into this tabset
    enableDrag inherited allow user to drag tabs out this tabset
    enableDivide inherited allow user to drag tabs to region of this tabset, splitting into new tabset
    enableMaximize inherited allow user to maximize tabset to fill view via maximize button
    autoSelectTab inherited whether to select new/moved tabs in tabset
    classNameTabStrip inherited
    classNameHeader inherited
    enableTabStrip inherited enable tab strip and allow multiple tabs in this tabset
    headerHeight inherited
    tabStripHeight inherited height in pixels of tab strip
    tabLocation inherited show tabs in location top or bottom
    minHeight inherited minimum width (in px) for this tabset
    minWidth inherited minimum height (in px) for this tabset

    Border Attributes

    Attributes allowed in nodes of type 'border'.

    Inherited defaults will take their value from the associated global attributes (see above).

    Attribute Default Description
    type border
    size inherited size of the tab body when selected
    minSize inherited
    selected -1 index of selected/visible tab in border; -1 means no tab unselected / border closed
    id auto generated border_ + border name e.g. border_left
    config null a place to hold json config used in your own code
    show true show/hide this border
    enableAutoHide false hide border if it has zero tabs
    children required a list of tab nodes
    barSize inherited size of this border's bar in pixels; if left as 0 then the value will be calculated from the current fontSize
    enableDrop inherited
    autoSelectTabWhenOpen inherited whether to select new/moved tabs in border when the border is already open
    autoSelectTabWhenClosed inherited whether to select new/moved tabs in border when the border is currently closed
    className inherited

    Model Actions

    All changes to the model are applied through actions. You can intercept actions resulting from GUI changes before they are applied by implementing the onAction callback property of the Layout. You can also apply actions directly using the Model.doAction() method. This method takes a single argument, created by one of the following action generators (typically accessed as FlexLayout.Actions.<actionName>):

    Action Creator Description
    Actions.addNode(newNodeJson, toNodeId, location, index, select?) add a new tab node to the given tabset node; select specifies whether to select new tab, defaulting to autoSelectTab attribute; returns the created Node
    Actions.moveNode(fromNodeId, toNodeId, location, index, select?) move a tab node from its current location to the new node and location; select specifies whether to select tab, defaulting to new tabset's autoSelectTab attribute
    Actions.deleteTab(tabNodeId) delete the given tab
    Actions.renameTab(tabNodeId, newName) rename the given tab
    Actions.selectTab(tabNodeId) select the given tab
    Actions.setActiveTabset(tabsetNodeId) set the tabset as the active tabset
    Actions.adjustSplit(splitterNodeId, value) adjust the size of the given splitter
    Actions.adjustBorderSplit(borderNodeId, pos) updates the size of the given border node
    Actions.maximizeToggle(tabsetNodeId) toggles whether the given tabset node is maximized
    Actions.updateModelAttributes(attributes) updates the global attributes
    Actions.updateNodeAttributes(nodeId, attributes) updates the attributes of the given node
    Actions.floatTab(nodeId) popout the tab into a floating browser window
    Actions.unFloatTab(nodeId) restore a popped out tab to the main layout

    Examples

    model.doAction(FlexLayout.Actions.updateModelAttributes({
        splitterSize:40,
        tabSetHeaderHeight:40,
        tabSetTabStripHeight:40
    }));

    The above example would increase the size of the splitters, tabset headers and tabs, this could be used to make adjusting the layout easier on a small device.

    model.doAction(FlexLayout.Actions.addNode(
        {type:"tab", component:"grid", name:"a grid", id:"5"},
        "1", FlexLayout.DockLocation.CENTER, 0));

    This example adds a new grid component to the center of tabset with id "1" and at the 0'th tab position (use value -1 to add to the end of the tabs). Note: you can get the id of a node (e.g., the node returned by the addNode action) using the method node.getId(). If an id wasn't assigned when the node was created, then one will be created for you of the form #<uuid> (e.g. #0c459064-8dee-444e-8636-eb9ab910fb27).

    Layout Component Methods to Create New Tabs

    Methods on the Layout Component for adding tabs, the tabs are specified by their layout json.

    Example:

    this.layoutRef.current.addTabToTabSet("NAVIGATION", {type:"tab", component:"grid", name:"a grid"});


    This would add a new grid component to the tabset with id "NAVIGATION" (where this.layoutRef is a ref to the Layout element, see https://reactjs.org/docs/refs-and-the-dom.html ).

    Layout Method Description
    addTabToTabSet(tabsetId, json) adds a new tab to the tabset with the given Id
    addTabToActiveTabSet(json) adds a new tab to the active tabset
    addTabWithDragAndDrop(dragText, json, onDrop) adds a new tab by dragging a marker to the required location, with the drag starting immediately; on success, onDrop is passed the created tab Node; on cancel, no arguments are passed
    addTabWithDragAndDropIndirect(dragText, json, onDrop) adds a new tab by dragging a marker to the required location, the marker is shown and must be clicked on to start dragging
    moveTabWithDragAndDrop( node, dragText) Move a tab/tabset using drag and drop triggered from a custom event

    Tab Node Events

    You can handle events on nodes by adding a listener, this would typically be done in the components constructor() method.

    Example:

        constructor(props) {
            super(props);
            let config = this.props.node.getConfig();

            // save state in flexlayout node tree
            this.props.node.setEventListener("save", (p) => {
                 config.subject = this.subject;
            };
        }


    Event parameters Description
    resize called when tab is resized during layout, called before it is rendered with the new size
    close called when a tab is closed
    visibility called when the visibility of a tab changes
    save called before a tabnode is serialized to json, use to save node config by adding data to the object returned by node.getConfig()

    Running the Examples and Building the Project

    First install dependencies:

    yarn install


    Compile the project and run the examples:

    yarn start


    Open your browser at http://localhost:8080/examples/ to show the examples directory, click on the examples to run them.

    The 'yarn start' command will watch for changes to flexlayout and example source, so you can make changes to the code and then refresh the browser to see the result.

    To run the tests in the Cypress interactive runner use:

    yarn cypress


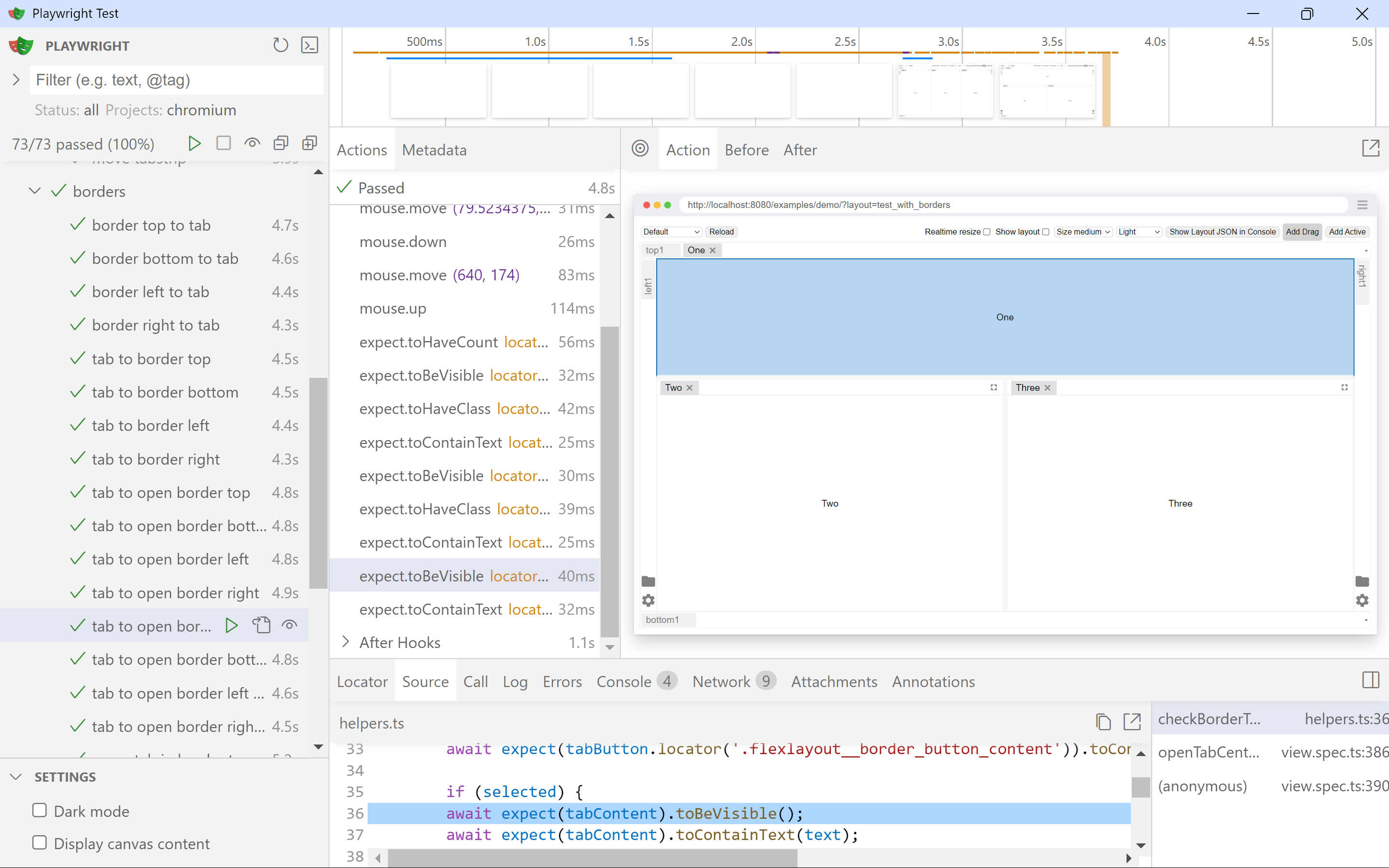

    FlexLayout Cypress tests

    To build the npm distribution run 'yarn build', this will create the artifacts in the dist dir.

    Alternative Layout Managers

    Name Repository
    rc-dock https://github.com/ticlo/rc-dock
    lumino https://github.com/jupyterlab/lumino
    golden-layout https://github.com/golden-layout/golden-layout
    react-mosaic https://github.com/nomcopter/react-mosaic

    Install

    npm i flexlayout-react

    DownloadsWeekly Downloads

    23,552

    Version

    0.7.4

    License

    ISC

    Unpacked Size

    16.4 MB

    Total Files

    6482

    Last publish

    Collaborators

    • nealus
