react-native-bullet-graph

Add customizable bullet graphs to your React Native apps.

Stable Release npm npm npm npm

Gallery 📱

Demo - https://react-native-bullet-graph.web.app/

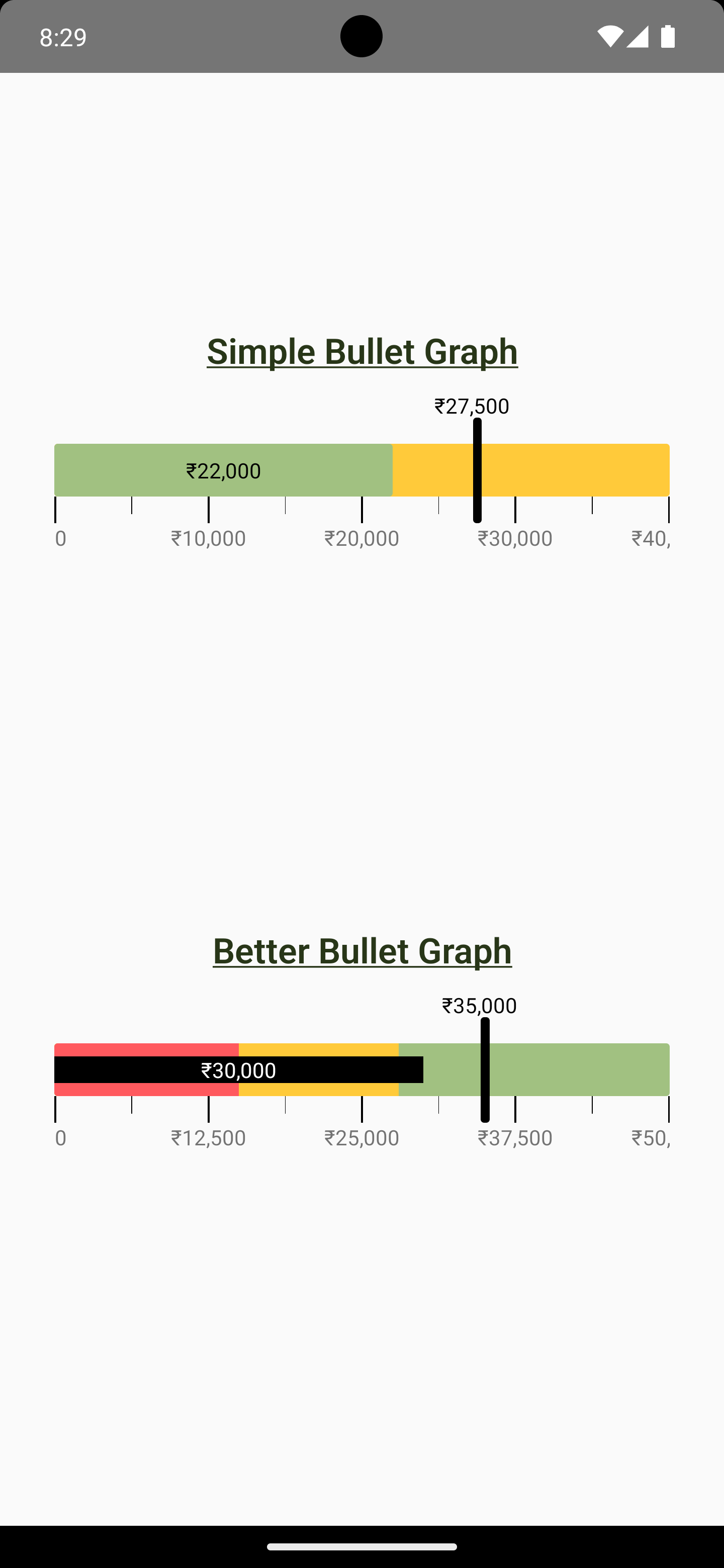

Android

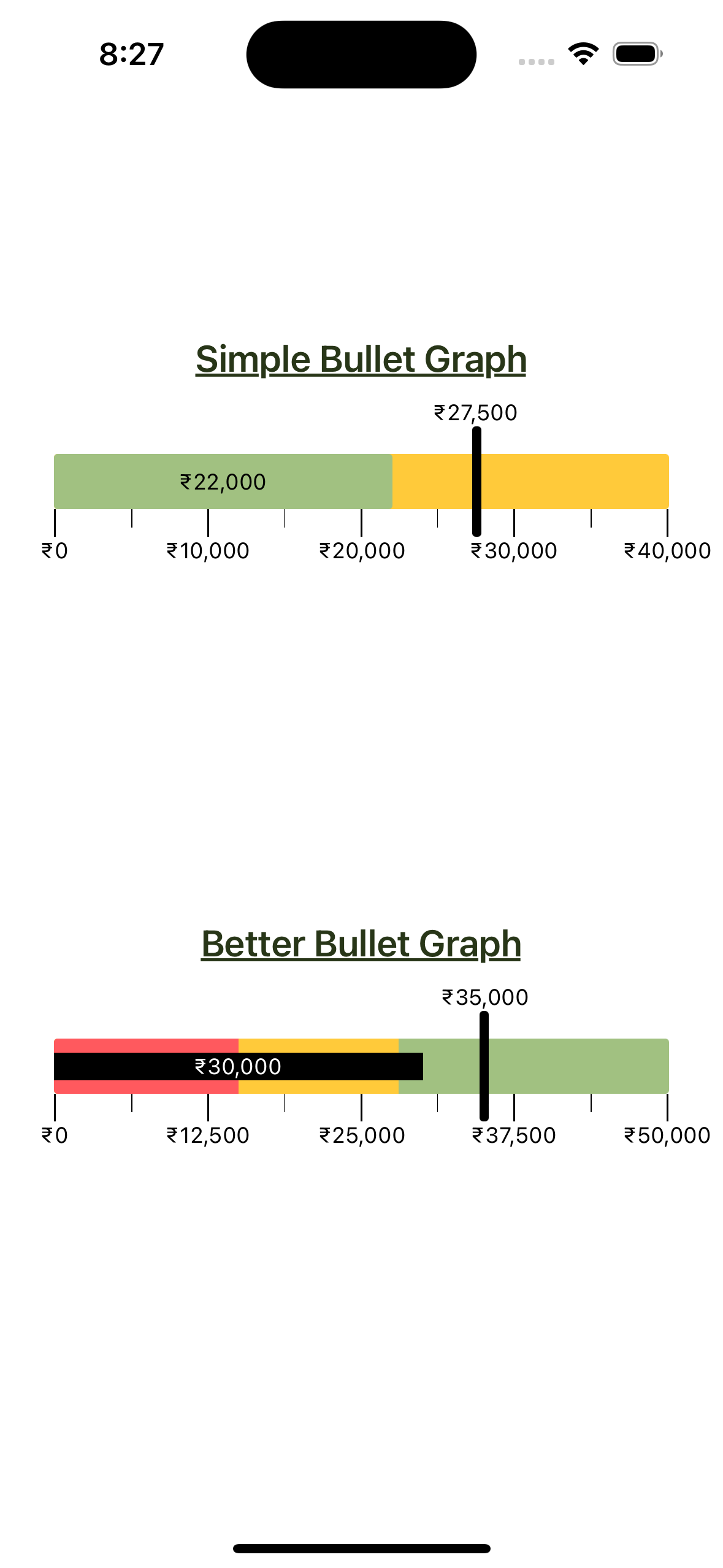

iOS

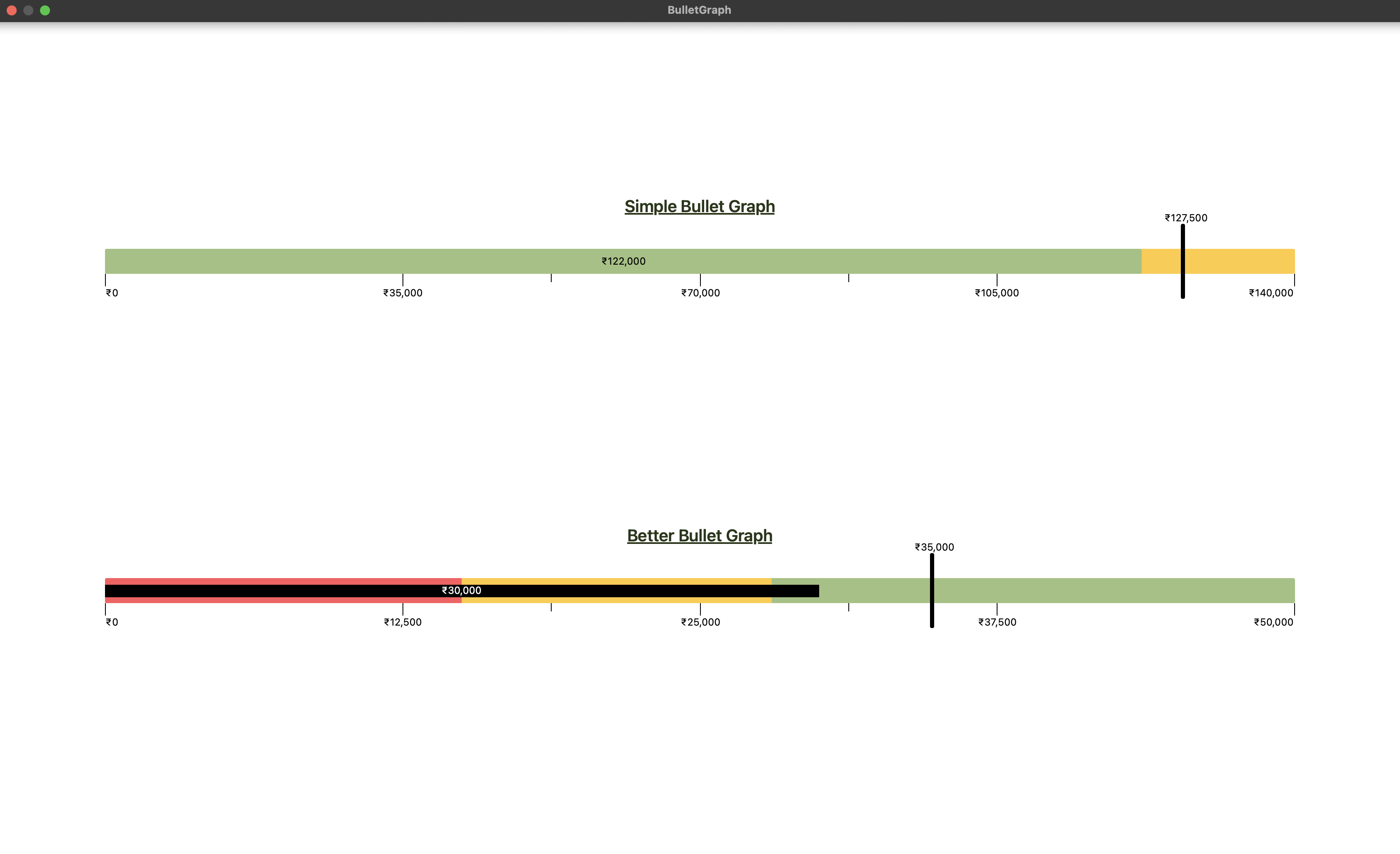

macOS

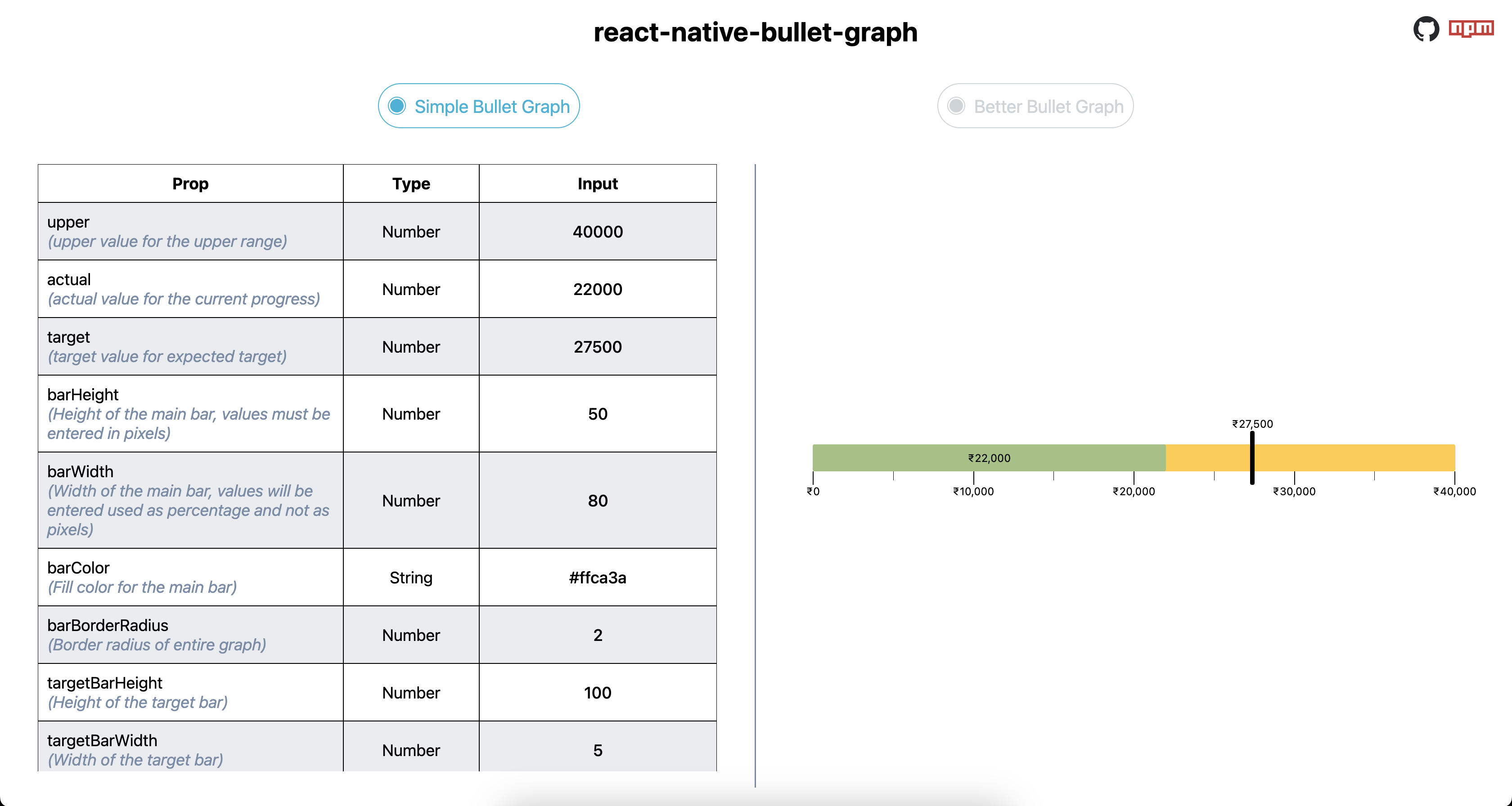

react-native-web

Installation 🚀

npm i react-native-bullet-graph

Usage

Follow the example below to use the graph:

import {
  SimpleBulletGraph,
  BetterBulletGraph,
} from "react-native-bullet-graph";

// Data required for setup of Simple Bullet Graph
var simpleBulletGraphData = {
  upper: 40000, // upper value for the upper range
  actual: 22000, // actual value for the current progress
  target: 27500, // target value for expected target
};

// Data required for setup of Better Bullet Graph
var betterBulletGraphData = {
  upper: 50000,
  actual: 30000,
  target: 35000,
  lower: 15000, // lower value for the bad range
  medium: 28000, // medium value for the satisfactory range
};

const App = () => {
  return (
    <>
      <SimpleBulletGraph
        data={simpleBulletGraphData}
        barHeight={30}
        barWidth={85}
        barColor={colors?.yellow}
        barBorderRadius={2}
        targetBarHeight={60}
        targetBarWidth={5}
        targetBarColor={colors?.black}
        targetTextColor={colors?.black}
        actualBarColor={colors?.green}
        actualTextColor={colors?.black}
        numericSize={12}
        timelineFontSize={12}
        hideActualValue={false}
        hideTargetValue={false}
        numberPrefix={"₹"}
        internationalNumberSystem={false}
        hideScale={false}
      />

      <BetterBulletGraph
        data={betterBulletGraphData}
        barHeight={30}
        barWidth={85}
        barColor={colors?.green}
        barBorderRadius={2}
        targetBarHeight={60}
        targetBarWidth={5}
        targetBarColor={colors?.black}
        targetTextColor={colors?.black}
        actualBarColor={colors?.black}
        actualTextColor={colors?.white}
        actualBarHeight={15}
        lowerBarColor={colors?.red}
        mediumBarColor={colors?.yellow}
        numericSize={12}
        timelineFontSize={12}
        hideActualValue={false}
        hideTargetValue={false}
        numberPrefix={"₹"}
        internationalNumberSystem={false}
        hideScale={false}
      />
    </>
  );
};

Configuration

Available props to configure the graph according to your needs:

Name Type Default value Description
data Object (required) null Mandatory data prop which will contain upper, actual and target values
barHeight Number 20 Height of the main bar, values must be entered in pixels
barWidth Number 90 Width of the main bar, values will be entered used as percentage and not as pixels
barColor String "#f7b801" Fill color for the main bar
barBorderRadius Number 10 Border radius of entire graph
targetBarHeight Number 40 Height of the target bar
targetBarWidth Number 5 Width of the target bar
targetBarColor String "#000000" Fill color for target bar
targetTextColor String "#000000" Text color of the target amount shown on bar
actualBarColor String "#a1c181" Fill color for denoting actual progress value
actualTextColor String "#000000" Text color of the target amount shown on bar
actualBarHeight Number 15 Height of actual bar (Performance Bar)
lowerBarColor String "#ff595e" Fill color for the Lower bar (Bad Range)
mediumBarColor String "#ffca3a" Fill color for the Medium bar (Satisfactory Range)
numericSize Number 12 Font size of target and actual values
timelineFontSize Number 12 Font size of timeline values
hideActualValue Boolean false Show or hide the actual value shown on bar
hideTargetValue Boolean false Show or hide the target value shown on bar
numberPrefix String null Prefix value to be added to all values
internationalNumberSystem Boolean true 2 or 3 digit comma separator for numeric values
hideScale Boolean false Show or hide range scale
scaleColor String "#000000" Text and bar color of the scale

License

MIT
