fig-tree-editor-react

Demo/Playground

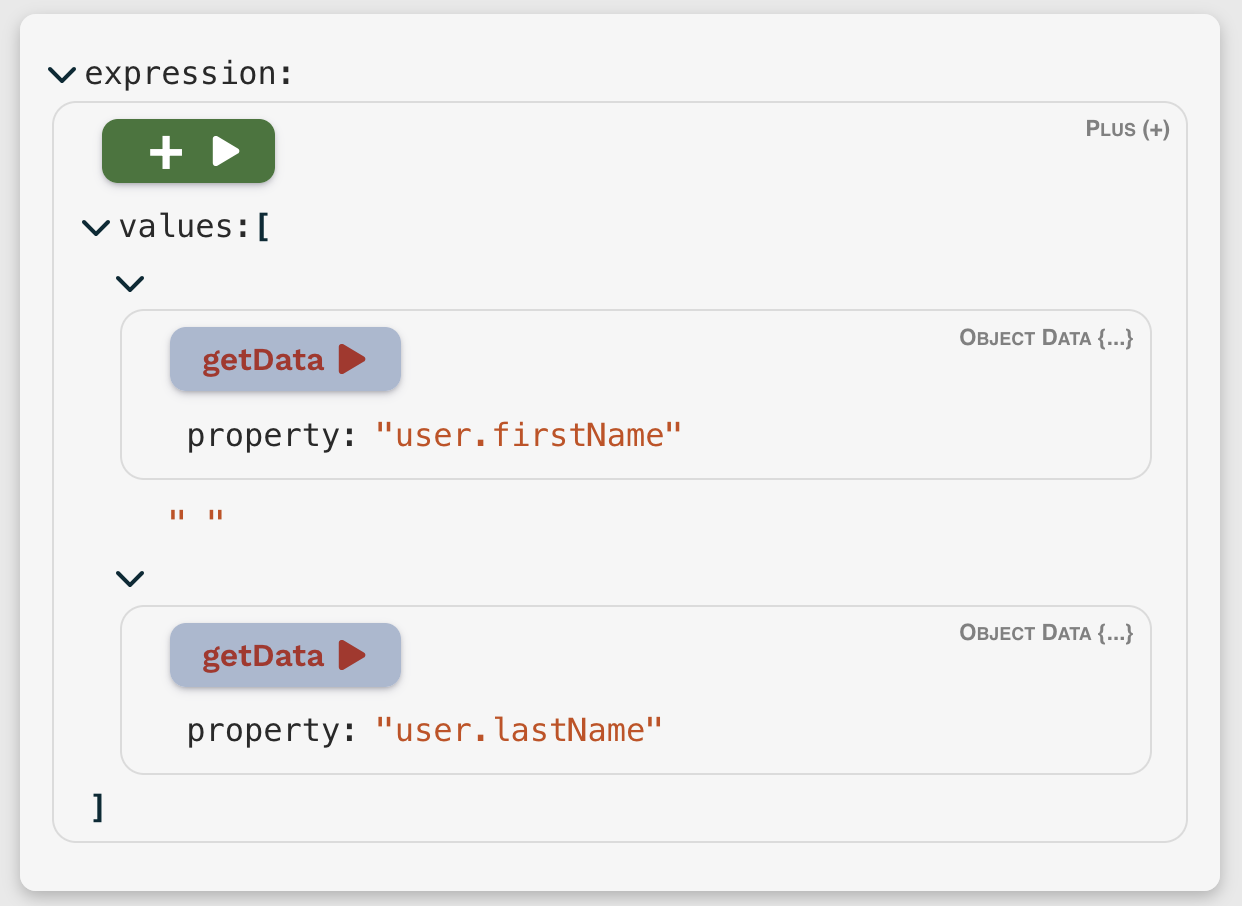

A React component for constructing and editing FigTreeEvaluator expressions.

It's built on json-edit-react (a JSON/object data viewer/editor), so usage is basically the same as for that component. The main addition is the use of Custom Nodes to handle the specifics of FigTree expressions, providing validation and custom UI to select and manipulate the various operators.

Your best bet is to have a play with the Demo to get a feel for it.

Installation

npm i fig-tree-builder-react

yarn add fig-tree-builder-react

Implementation

import { FigTreeEditor } from 'fig-tree-builder-react'

// In your React component:
return
  <FigTreeEditor
    // These 3 props are required, the rest are optional
    figTree={figTree} // your FigTree instance
    expression={expressionObject} // your FigTree expression object
    setData={ (data) => updateMyExpression(data) } // function to update your expression object
    { ...otherProps } />

Available props

The majority of props are those for json-edit-react, so won't be covered here. The ones specific to this component are:

Required

Prop	Type	Description
`figTree`	`FigTreeEvaluator`	A FigTree instance to run evaluations on
`expression`	`EvaluatorNode`(object/array/value)	The FigTree expression
`setExpression`	`(data: EvaluatorNode) => void`	React state update function

Optional

Prop	Type	Description
`objectData`	`object`	Data object accessed by FigTree's `getData`/`objectProperties` operator.
`onEvaluate`	`(value: unknown) => void`	Optional function to call on the evaluated result after clicking one of the "Evaluate" buttons. Can be used (for example) to display a Notification with the result.
`onEvaluateStart`	`() => void`	Called when an "Evaluate" button is clicked. Some evaluations can take some time (e.g. network requests), so this can be used to trigger a "Loading" indicator.
`operatorDisplay`	`Operator Display Data`	Used to set the background and text colours for the various Operator "Evaluate" buttons. See [below] for details.

Operator UI customisation

You can override the colour scheme for each operator in the UI by passing in an object to the operatorDisplay prop. Each operator can have the backgroundColor, textColor and displayName defined — see defaults file for specific structure.

You can also specify the colours for Fragments and Custom Operators in their metadata definitions.

Help, Feedback, Suggestions

Please open an issue: https://github.com/CarlosNZ/fig-tree-editor-react/issues

Changelog

v0.7.0:
- Use updated editor package (json-edit-react) in order to restrict to enum values when appropriate
- Correct defaults for all operator properties
v0.6.6: Respect editing restrictions in Custom Nodes
v0.5.0 – v0.6.5: Initial release
