Express Router Diagram

A lightweight utility for visualizing Express.js routes. This package helps you understand the structure of your Express application by extracting and displaying all defined routes in an interactive D3.js visualization.

✨ Features

📊 Extract all routes from an Express application
🔄 Generate interactive web-based flow diagrams of your routes
🎨 Color-coded HTTP methods (GET, POST, PUT, DELETE, PATCH)
🖱️ Interactive navigation with zoom, pan, and pinch-to-zoom support
📱 Mobile and touch device support
💾 Export diagram as PNG
🛣️ Customizable visualization URL path

📦 Installation

npm install express-router-diagram

🚀 Quick Start

As Middleware

The simplest way to use express-router-diagram is as middleware in your Express application:

const express = require('express');
const routerDiagram = require('express-router-diagram');

const app = express();

// Define your routes
app.get('/', (req, res) => res.send('Hello World!'));
app.post('/users', (req, res) => res.json({ success: true }));
// ... more routes

// Add the router diagram middleware at the end
app.use(routerDiagram({
  generateWeb: true,  // Enable web visualization
  // Optional:
  //  customize the visualization URL
  //  (default: express-routes)
  // webRoute: 'routes/diagram'
}));

app.listen(3000, () => {
  console.log('Server started on port 3000');
});

Note: The webRoute option doesn't need a leading slash. If provided, it will be added automatically. This helps avoid issues when using the CLI where paths with leading slashes might be interpreted as file paths.

CLI Usage

You can also use the CLI tool to start a standalone web server that visualizes the routes of your Express app:

npx express-router-diagram --app ./app.js --server [port]

This will start a web server (default port: 3000) that displays the flow diagram. You can access it at:

http://localhost:3000/express-routes

You can customize the visualization URL path:

npx express-router-diagram --app ./app.js --server 3000 --diagram-route routes/diagram

Then access the visualization at:

http://localhost:3000/routes/diagram

Note: When using the --diagram-route parameter, do not include a leading slash. This helps avoid issues where paths with leading slashes might be interpreted as file paths in some environments.

📊 Web Visualization

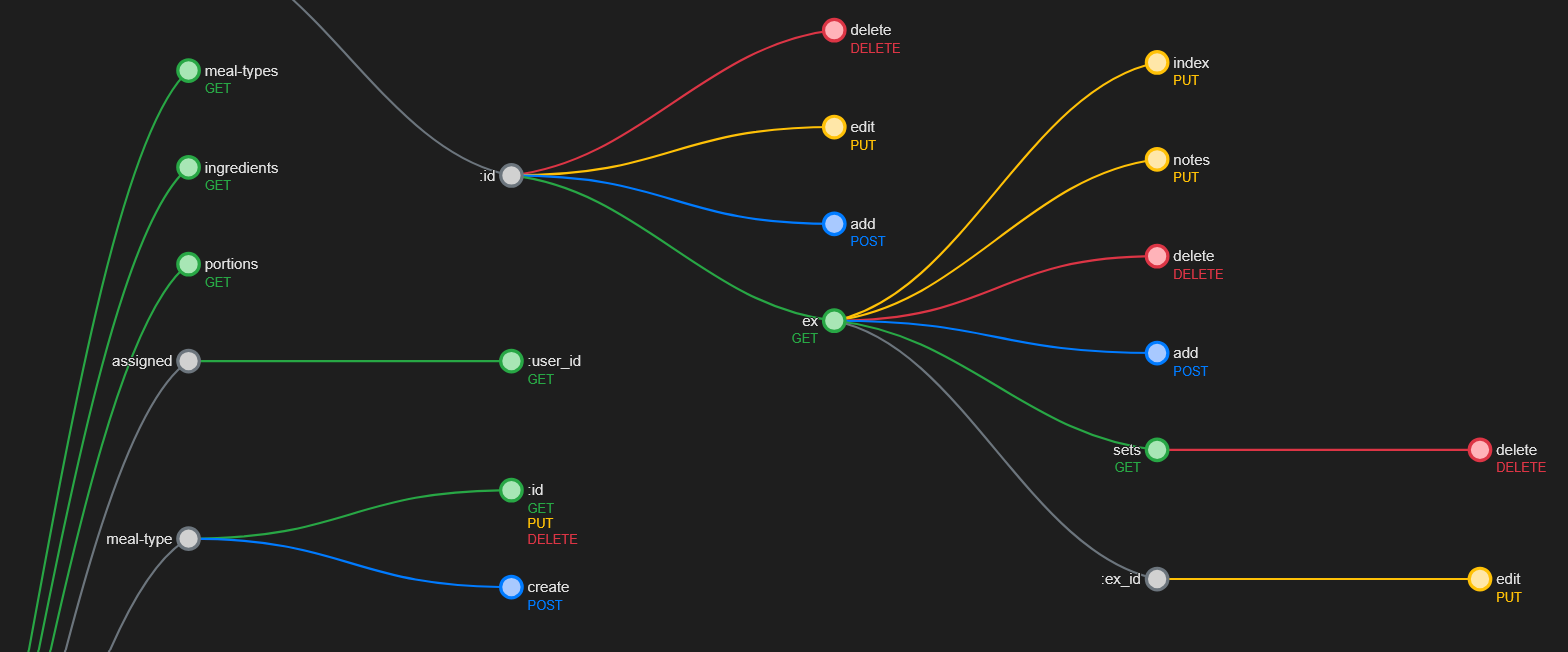

When you enable the web-based visualization with the generateWeb option, a route at /express-routes (or your custom path) is added to your application. This route displays an interactive D3.js diagram of your API routes.

The diagram provides:

A hierarchical view of your API structure
Color-coded HTTP methods (GET: green, POST: blue, PUT: yellow, DELETE: red, PATCH: teal)
Interactive navigation with zoom, pan, and pinch-to-zoom support
A floating menu for navigating between related nodes
Export functionality to save the diagram as a PNG image

Interactive Features

The diagram includes several interactive features:

Zoom and Pan: Click and drag to move around, use the mousewheel to zoom
Pinch-to-Zoom: Use pinch gestures on touchscreens or trackpads to zoom in and out
Node Navigation: Click on any node to open a floating menu showing parent and child nodes
Draggable Menu: The node menu can be dragged around for better visibility
Direct Navigation: Click on any node in the menu to navigate directly to that node

⚙️ Configuration

You can customize the middleware behavior with options:

app.use(routerDiagram({
  // Whether to print routes to console
  logToConsole: true,

  // Save routes to a file
  outputFile: './routes.txt',

  // Exclude routes matching these patterns
  excludePatterns: ['/admin'],

  // Display routes in a hierarchical structure (default: true)
  hierarchical: true,

  // Generate web-based flow diagram (default: false)
  generateWeb: true,

  // Custom route path for the web visualization (default: "express-routes")
  webRoute: 'routes/diagram'
}));

🧰 CLI Options

The CLI tool provides several options:

Options:
  -a, --app <file>         Express application module to analyze (required)
  -o, --output <file>      Output file (default: stdout)
  -s, --server [port]      Start a web server to visualize routes (default port: 3000)
  --color-file             Include ANSI color codes in the output file (default: no colors)
  --diagram-route <path>   Custom route path for the web visualization (default: express-routes)
                           Note: Do not include a leading slash, it will be added automatically
  -h, --help               Show this help message

Examples:

# Output routes to console
express-router-diagram --app ./app.js

# Save routes to a file
express-router-diagram --app ./app.js --output routes-diagram.txt

# Save routes to a file with color codes
express-router-diagram --app ./app.js --output routes-diagram.txt --color-file

# Start a web server on port 8080
express-router-diagram --app ./app.js --server 8080

# Start a web server with a custom route path
express-router-diagram --app ./app.js --server 8080 --diagram-route routes/diagram

📝 API Reference

Middleware

routerDiagram(options)

Returns an Express middleware function that extracts and prints routes.

Options:

logToConsole (boolean): Whether to print routes to console (default: true)
outputFile (string): Path to save routes diagram (default: null)
excludePatterns (array): Array of regex patterns to exclude from output (default: [])
hierarchical (boolean): Display routes in a hierarchical structure (default: true)
generateWeb (boolean): Generate web-based flow diagram (default: false)
webRoute (string): Custom route path for the web visualization (default: "express-routes"). Leading slash is optional and will be added automatically if missing.

Functions

printAppRoutes(app, options): Extract and print routes from an Express app
extractRoutesFromApp(app): Extract routes from an Express app
printRoutes(routes, options): Print routes to the console
generateTextDiagram(routes, options): Generate a text representation of routes
saveDiagram(diagram, outputPath): Save a diagram to a file
organizeRoutesHierarchy(routes): Organize routes into a hierarchical structure

🌐 Browser Support

The web-based visualization supports all modern browsers, including:

Chrome, Firefox, Safari, Edge
Mobile browsers on iOS and Android
Touch-enabled devices with pinch-to-zoom support

📚 Examples

Programmatic Usage

You can use the package programmatically in your code:

const express = require('express');
const { printAppRoutes } = require('express-router-diagram');

const app = express();

// Define your routes
app.get('/', (req, res) => res.send('Hello World!'));
app.post('/users', (req, res) => res.json({ success: true }));

// Print routes with hierarchical view (default)
printAppRoutes(app);

Output to File

You can output the routes to a file instead of starting a web server:

npx express-router-diagram --app ./app.js --output routes.txt

To include ANSI color codes in the output file, use the --color-file flag:

npx express-router-diagram --app ./app.js --output routes.txt --color-file

🤝 Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.

📦 Dependencies

express: Web framework for Node.js
d3: Data visualization library for creating dynamic diagrams
