    antd-form-builder

    The FormBuilder is a small helper (< 500 lines of source code) for building forms with React and ant.design easily while not preventing you from using the original antd form API. It can not only be used as editable form but also to display readonly information with form layout. It supports both antd v3 and v4 versions.

    NPM JavaScript Style Guide MIT licensed

    Examples

    You can see the live demo at: https://rekit.github.io/antd-form-builder

    Philosophy

    The key principle in my mind to create antd-form-builder is it should just help to define form fields and the layout while it doesn't reduce the flexibility of antd's original form API. So in simple patterns you can create a form very easily but if a form is much complicated you can still use the original form API. You can even use antd-form-builder together with the raw API in a mixed way.

    Meta Driven

    Besides the simplified API which helps to create form easily, the FormBuilder is also very useful if you have meta driven requirement. For example if your form structure needs to be configurable, the meta could be a pure JSON object which can be easily saved and managed separately.

    About the New Form API of Ant.Design v4

    The new v4 version of ant.design has been released. The form component has been re-written so some API is not backward-compatible now. One of main reasons why antd re-wrote form is for performance improvment of large and complicated forms. But it also lost some flexibilty of creating dynamic forms. In v3, when any form field is changed, the component will be re-rendered because it's hign-order-component based. But in v4 whenever a field is changed the component in which antd form is used will never re-render. That means it's now impossible to create dynamic forms with such code:

    <Form>
      {form.getFieldValue('f1') === 'foo' && <Form.Item {...}/>}
    </Form>

    Instead, you will need similar code like below:

    <Form form={form}>
      <Form.Item label="Field1" name="f1">
        <Input />
      </Form.Item>
      <Form.Item shouldUpdate>
        {() =>
          form.getFieldValue("f1") === "foo" && (
            <Form.Item label="Field2" name="f2">
              <Input />
            </Form.Item>
          )
        }
      </Form.Item>
    </Form>

    Then when you type in 'foo' in the field1 the second field2 will appear.

    IMO, this API design looks hacky because the nested form item here is meaningless but the outer one is just a wrapper. The new shouldUpdate property means when other fileds are changed the Form.Item will re-render.

    The new API is much less flexible for dynamic forms because you have to put all dynamic logic in the render props. That also means you have to break components into small parts that update separately in render props.

    So for the new form API of antd v4, the antd-form-builder can still save much time for building dynamic forms.

    New API for antd v4

    Though the API of antd-form-builder is backward-compatible, the new form builder still increases the major version to 2.0 since there're some new API for antd v4. If you still use antd v3 you don't need to change any code after upgrading to form builder 2.0. If you use v4, below is the key difference.

    1. For class components

    You need to create a form instance by FormBuilder.createForm() and pass it to the antd's Form:

    import FormBuilder from 'antd-form-builder';

    export default class App extends Component {
      formRef = React.createRef()
      render() {
        const meta = [{ key: 'name', label: 'Name' }]
        return (
          <Form ref={formRef} onValuesChange={() => this.forceUpdate()}>
            <FormBuilder meta={meta} form={this.formRef} />
          </Form>
        )
      }
    }

    2. For functional components

    You need to create a form with the hook Form.useForm() and pass it to the antd's Form:

    import { Form } from 'antd';
    import FormBuilder from 'antd-form-builder'

    export default () => {
      const [form] = Form.useForm()
      const forceUpdate = FormBuilder.useForceUpdate();
      const meta = [{ key: 'name', label: 'Name' }]
      return (
        <Form form={form} onValuesChange={forceUpdate}>
          <FormBuilder meta={meta} form={form} />
        </Form>
      )
    }

    3. Pass forceUpdate to antd's Form's onValuesChange

    This is because in the v4 Form, when fields are changed, the component is not re-renderred. This "urgly" mechanism ensure the wrapper component is always re-renderred when fields change. The reason why it took a bit long time for the FormBuilder 2.0 is just I also think this API looks a bit stange but unitl now I've not found a better way. However you don't need to worry about using this API because it will not bring incompatabilty issue. However, if you don't need dynamic field capability, you don't need to do this. If you want to control the dynamic logic more flexible, you can use shouldUpdate with Form.Item yourself.

    Install

    npm install --save-dev antd-form-builder

    Usage

    The most simple usage is like below (for antd v4):

    import React from 'react'
    import { Form, Button } from 'antd'
    import FormBuilder from 'antd-form-builder'

    export default () => {
      const [form] = FormBuilder.useForm()
      const meta = {
        fields: [
          { key: 'username', label: 'User Name' },
          { key: 'password', label: 'Password', widget: 'password' },
        ],
      }

      return (
        <Form form={form}>
          <FormBuilder meta={meta} form={form} />
          <Form.Item wrapperCol={{ span: 16, offset: 8 }}>
            <Button type="primary">Login</Button>
          </Form.Item>
        </Form>
      )
    }

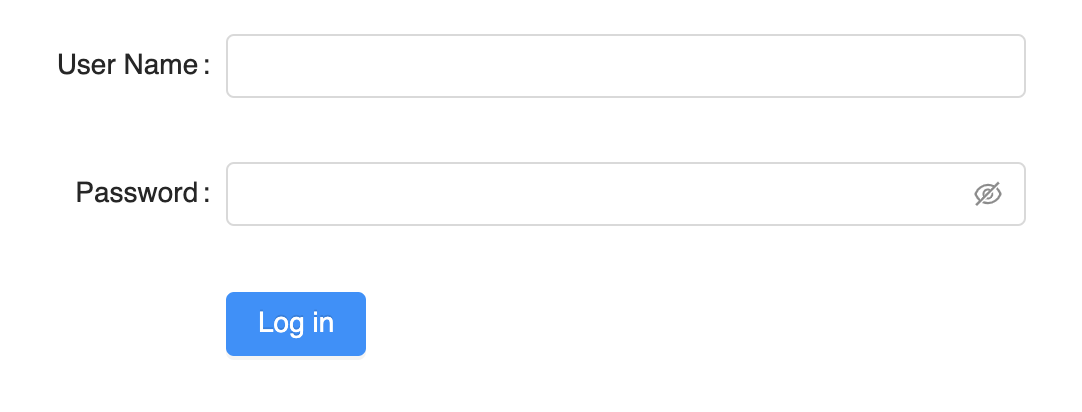

    Then you get a form:

    To see more examples, please go to https://rekit.github.io/antd-form-builder

    NOTE: if you use antd v3.x, you may see a warning about module not found: rc-field-form/lib/useForm. It's not a problem because it needs to dynamically detect if the current Form is v3 or v4. If you know a better way without warning, feel free to create a PR.

    API Reference

    The FormBuilder could be used for both antd v3 and v4, but the API set has a little difference. They will be marked as and .

    General API for antd v4

    Name Description
    FormBuilder.useForceUpdate If you need dynamic form, that is meta is changed when fields value changed, you should manually trigger re-render by set onValuesChange={forceUpdate}.

    FormBuilder

    Props:

    Name Type Description
    form object The antd form instance, unnecessary in viewMode
    meta object/array The meta for building the form. See below docs for detailed usage
    getMeta(form, props) function You can pass a function to get form meta rather than give meta object directly. This is new from v2.1.0.
    viewMode bool In view mode, FormBuild uses viewWidget property for a field, show value directly if viewWidget not defined. And labels are left aligned in the form. Default to false.

    meta

    meta property tells FormBuilder about all information of form structure. Its basic structure is like below:

    const meta = {
      columns: 2, // how many columns to layout fields
      fields: [], // which fields in form
    };

    If meta is an array, it will be used as fields:

    const realMeta = { fields: meta }

    If meta is an object without fields property, it's treated as a single field meta, so it will be converted to:

    const realMeta = { fields: [meta] }

    Properties are listed below:

    Name Type Default Description
    columns number 1 How many columns of the form layout.
    formItemLayout object/array [8, 16] The labelCol and wrapperCol passed to Form.Item. If it's an array, will be converted to { labelCol: { span: arr[0] }, wrapperCol: { span: arr[1] }}. If a filed has different layout, define it in its own meta.
    viewMode bool In view mode, FormBuild uses viewWidget property for a field, show value directly if viewWidget not defined. And labels are left aligned in the form. Default to false.
    disabled bool false If true, all fields components will be given a disabled property.
    initialValues object null Set initialValues to the form, usually used in form which edit values or in viewMode. You can also set initialValue for each field.
    fields array null Fields definition for the form. See below info for how to define a field.
    gutter number 0 The gap between columns.

    Field meta

    Field meta is used to define each field. Each field meta is an object defined in meta.fields. It's a central place to combine parameters to FormBuilder itself, <Form.Item> and getFieldDecorators. All options are listed below:

    Name Type Default Description
    key string Required. The field key. Could be nested like user.name.last. It's just the key value passed to getFieldDecorator(key, options)
    name string/array Alternative of key. In form v4, if you need nested property for colleced form values like : { name: { first, last } } you can define an array for the name property: ['name', 'first']. If you prefer name.first, use key to define it.
    label string Label text.
    viewMode bool false Whether the field is in view mode. Note if a field is in viewMode but FormBuilder is not, the label in the field is still right aligned.
    readOnly bool false Whether the field is readOnly. The difference compared to viewMode is a read-only field is managed by form that is the value is collected when use form.getFieldsValue, but viewMode is not. It is also validated if some rules are configured for the field.
    tooltip string/React Node If set, there is a question mark icon besides label to show the tooltip.
    widget string/Component Input Which component used to render field for editing. The component should be able to be managed by antd form.
    widgetProps object Props passed to widget.
    viewWidget string/Component text Which component used to render field in view mode.
    viewWidgetProps object Props passed to viewWidget
    formItemLayout object/array [8, 16] This applies formItemLayout only to this field rather than which defined in the root meta.
    render function If provided, this is used for rendering the whole field in both edit and view mode, should render <Form.Item>, getFieldDecorator itself. widget property will be ignored.
    renderView function If provided, this is used for rendering field value in view mode, viewWidget will be ignored.
    colSpan number 1 How many columns the field should take up.
    initialValue any The initialValue to be passed to the field widget. In view mode, it's the value to be display.
    getInitialValue func(field, initialValues, form) Get the initialValue of the field. This may be used to combine multiple fields into one field
    disabled bool false If set to true, every widget in field will be given a disabled property regardless of if it's supported.
    clear enum In multiple columns layout, used to clear left, right or both side fields. Like the clear property in css. Could be left: the field starts from a new row; right: no fields behind the field; both: no other fields in the same row.
    forwardRef bool If your field widget is a funcional component which doesn't implement forwardRef, set this to true so that React doesn't prompt warning message.
    noFormItem bool false By default, each field is wrapped with <Form.Item>, if set to true, it just use getFieldDecorators.
    noStyle bool false The same with old noFormItem. Provlide the alias noStyle to be consitent with antd v4.
    children ReactNode The children of widget defined in meta.
    required bool false Whether the field is required.
    message string If a field is required, you can define what message provided if no input. By default, it's ${field.label} is required.
    options array Only used by select, radio-group. checkbox-group components, explained below.
    formItemProps object The props passed to <Form.Item>. Below properties are short way to pass props to <Form.Item>. See more from antd's doc
    colon bool true Used with label, whether to display : after label text.
    extra string/ReactNode The extra prompt message. It is similar to help. Usage example: to display error message and prompt message at the same time.
    hasFeedback bool false Used with validateStatus, this option specifies the validation status icon. Recommended to be used only with Input.
    help string/ReactNode The prompt message. If not provided, the prompt message will be generated by the validation rule.
    htmlFor string Set sub label htmlFor.
    labelCol object The layout of label. You can set span offset to something like {span: 3, offset: 12} or sm: {span: 3, offset: 12} same as with <Col>.
    validateStatus string The validation status. If not provided, it will be generated by validation rule. options: 'success' 'warning' 'error' 'validating'
    wrapperCol object The layout for input controls, same as labelCol.
    fieldProps object The options to pass to getFieldDecorator(id, options). Below properties are short way to pass options to getFieldDecorator(id, options). See more from antd's doc
    getValueFromEvent function(..args) Specify how to get value from event or other onChange arguments
    getValueProps function(value) Get the component props according to field value.
    normalize function(value, prevValue, allValues) Normalize value to form component
    preserve bool false Keep the field even if field removed.
    rules object[] Includes validation rules. Please refer to "Validation Rules" part for details.
    trigger string 'onChange' When to collect the value of children node
    validateFirst bool false Whether stop validate on first rule of error for this field.
    validateTrigger string / string[] 'onChange' When to validate the value of children node.
    valuePropName string Props of children node, for example, the prop of Switch is 'checked'.

    Use String Key to Define a Widget

    To define the widget for a field, you can use either a string which maps to a widget or a react component directly.

    const meta = { key: 'name', label: 'Name', widget: 'input'}
    // or
    const meta = { key: 'name', label: 'Name', widget: Input }

    The reason why you can use a string for widget property is because there are some key-component mapping pre-defined in antd-form-builder/defineAntdWidget.js. Normally you can use a component for widget/viewWidget property of a field meta, but sometimes it's more convenient to use string so that you don't need to import the component while defining meta. And it's especially useful if you want to save meta in some config json.

    The predefined components are listed below:

    key Component meta convention
    input Input
    password Input.Password
    textarea Input.TextArea
    number InputNumber
    select Select Typically you need to provide children property for Option array to the field meta metioned above. To make it easy to use, you can provide an options array to the field meta, internally it will be convented to children property. Explained below.
    date-picker DatePicker
    radio Radio
    checkbox CheckBox
    checkbox-group CheckBox.Group Use options for children, same as select.
    switch Switch
    radio-group Radio.Group Use options for children, same as select. Also you can set buttonGroup to true for tab button style instead of radio style.
    button Button

    options

    options is a special field meta just mentioned. It's only used for select, checkbox-group or radio-group. You can define children by options in 3 formats:

    1. [opt1, opt2, opt3, ...], here value and label are same as opt1, opt2, opt3....

    2. [[value1, label1], [value2, label2], ...]

    3. [{value: 'v1', label: 'label1'}, {value: 'v2', label: 'label2'}, ...]

    Extend FormBuilder: Define Keys for Your Components

    Besides built-in pre-defined components, you can define your own by FormBuilder.defineWidget static method like below:

    const MyComp = ({ value, onChange}) => {...}
    FormBuilder.defineWidget('my-comp', MyComp)

    Then you can use it:

    const meta = { key: 'comp', label: 'Comp', widget: 'my-comp' }

    This mechanism not only makes it easy to define meta easily in your project, but also useful if you want your meta could be pure JSON object.

    FormBuilder.defineWidget(key, component, metaConvertor)

    Define the key for a widget so that you can use string key in the meta like 'date-picker', 'select'. You can also provide a meta convertor to to provide easier way to give props to the widget.

    key

    string key to used for the widget

    component :

    The react component to used in form field

    metaConvertor

    function, convert field meta to a new meta.

    For example: to make it easier to define a Select widget for the field, FormBuilder uses below code internally:

    const mapOptions = options => {
      if (!_.isArray(options)) {
        throw new Error('Options should be array in form builder meta.')
      }
      return options.map(opt => {
        if (_.isArray(opt)) {
          return { value: opt[0], label: opt[1] }
        } else if (_.isPlainObject(opt)) {
          return opt
        } else {
          return { value: opt, label: opt }
        }
      })
    }

    FormBuilder.defineWidget('select', Select, field => {
      if (field.options && !field.children) {
        return {
          ...field,
          children: mapOptions(field.options).map(opt => (
            <Select.Option value={opt.value} key={opt.value}>
              {opt.label}
            </Select.Option>
          )),
        }
      }
      return field
    })

    Then you can define options for select component with below meta:

    const meta = { key: 'select', label: 'Select', options: ['opt1', 'opt2']}

    Here options property from meta is converted to chilren property to Select component. You can define options in two mode:

    [[value1, label1], [value2, label2]]
    // or
    [valueAndLabel1, valueAndLabel2]

    Otherwise without metaConvertor, you have to define your meta like below:

    const meta = {
      key: 'select',
      label: 'Select',
      children: ['opt1', 'opt2'].map(key => <Option key={key}>{key}</Option>),
    };

    So if you define you own widget, you can give a metaConvertor to provide a convenient way to define field widget.

    Contribute

    Local development

    This project is bootstraped by create-react-library. To start development locally, follow below steps:

    # 1. Clone repo
    git clone https://github.com/rekit/antd-form-builder.git

    # 2. Install dependencies
    cd antd-form-builder
    npm install

    # 3. Run rollup in watch mode
    npm start

    # 4. Start example dev server (in anther tab)
    cd example
    npm start

    Now, anytime you make a change to your library in src/ or to the example app's example/src, create-react-app will live-reload your local dev server so you can iterate on your component in real-time.

    Build examples

    cd examples
    npm run build

    This will build examples into root docs folder which is used as gh-pages root. So after build, commit or pr the changes to the repo.

    License

    MIT © supnate
