@wavequery/analyser

WaveQuery Database Analyser

Visualize and Master Your Database Schemas with Ease

Try Live Demo • GitHub

🚀 Features

• Support for major databases:
  • PostgreSQL
  • Clickhouse
  • MariaDB
  • BigQuery
  • MySQL
  • SQLite
• Comprehensive schema analysis
• Interactive visualization using D3.js
• Smart relationship detection
• Junction table identification
• Stored procedures and views analysis
• Manual relationship mapping
• Schema export as JSON

🎮 Try it Live

Experience WaveQuery Database Analyser instantly at WaveQuery Playground:

• Explore sample database schemas
• Test with live databases
• Visualize complex relationships
• No setup required

Installation

npm install @wavequery/analyser

Usage

CLI

To analyze a database and start the visualization server:

npx @wavequery/analyser -t <database_type> -h <host> -p <port> -u <username> -P <password> -d <database_name> -s -o /path/to/somewhere/

Options:

• -t, --type: Database type (postgres, mariadb, sqlite)
• -h, --host: Database host
• -p, --port: Database port
• -u, --user: Database user
• -P, --password: Database password
• -d, --database: Database name
• -f, --file: SQLite database file path (for SQLite only)
• -o, --output <path>, Path to export the JSON file
• -s, --serve: Start the visualization server after analysis
• --debug: Enable debug logging

Example:

npx @wavequery/analyser -t postgres -h localhost -p 5432 -u myuser -P mypassword -d mydb -s

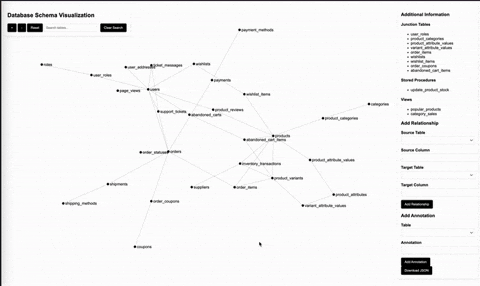

After running the command, open a web browser and navigate to the URL provided in the console output to view the schema visualization.

As a Library

You can also use DB Schema Finder as a library in your own projects. Here's a basic example:

import { analyzeDatabase } from '@wavequery/analyser';
import { PostgresConnector } from '@wavequery/analyser';

async function runAnalysis() {
  const connector = new PostgresConnector({
    host: 'localhost',
    port: 5432,
    user: 'myuser',
    password: 'mypassword',
    database: 'mydb'
  });

  try {
    const result = await analyzeDatabase({connector, exportData});
    console.log(JSON.stringify(result, null, 2));
  } catch (error) {
    console.error('Analysis failed:', error);
  }
}

runAnalysis();

Contributing

Feel free to submit a Pull Request.

License

This project is licensed under the MIT License.
