React Topography

A CLI tool to generate a topography of React component relationships.

Description

React Topography is a command-line tool that visualizes the component hierarchy and relationships in React applications. It generates an interactive static site displaying a flow from the root of the app to its components, allowing you to explore their connections.

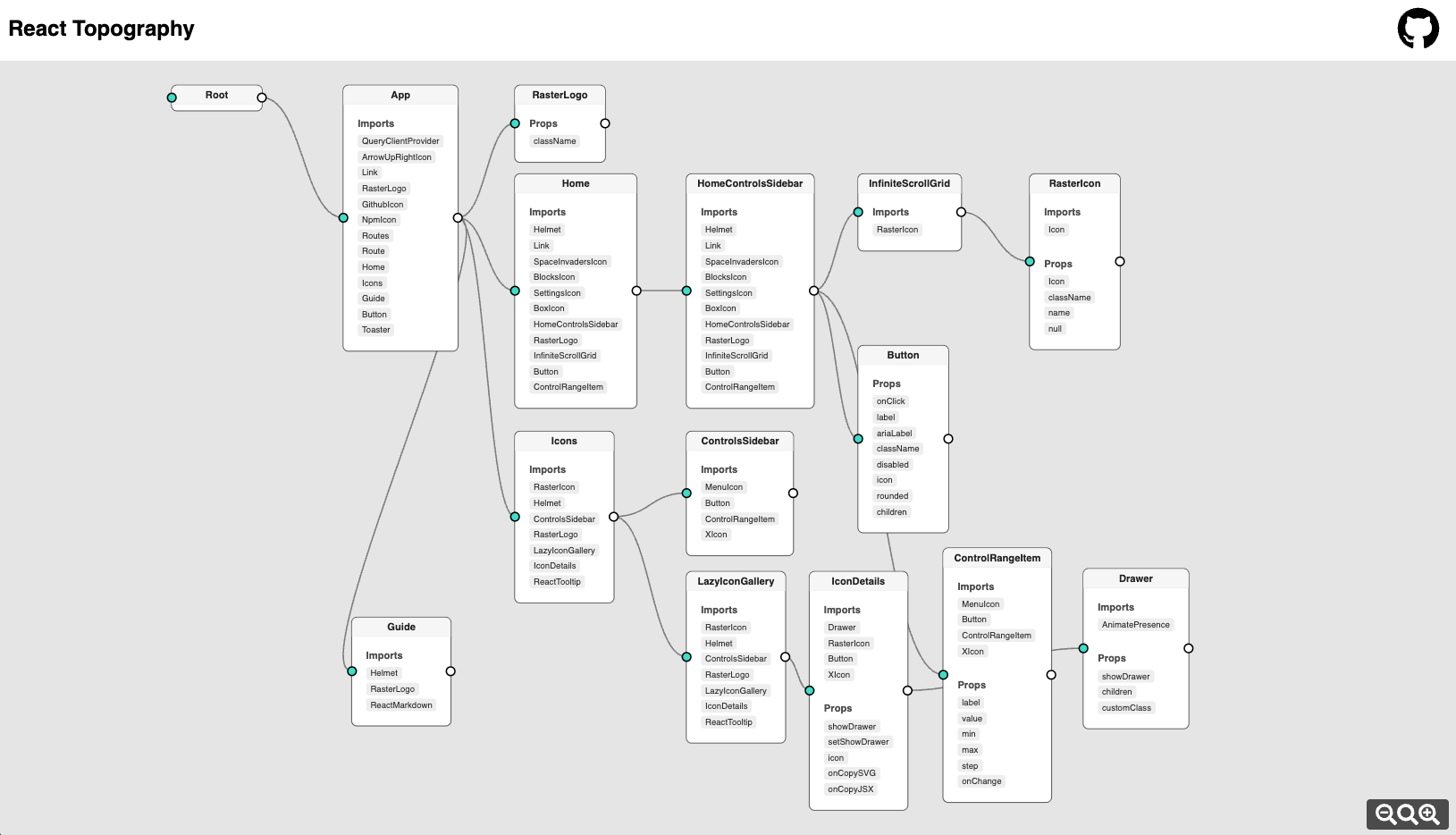

Topography Sample

Installation

pnpm install -g react-topography

Usage

Run the CLI from your project’s root directory, specifying the source directory where your React code resides (e.g., where main.tsx or app.tsx is located) using the -s flag.

Command

react-topography -s <source-directory>

Examples

  • If your React code is in the src directory:

    react-topography -s ./src
  • If your React code is in packages/demo/src:

    react-topography -s ./packages/demo/src

After running the command, the tool spins up a static site at http://localhost:4001/. The site displays an interactive visualization of your React app’s component relationships, where you can:

  • Drag nodes to reposition them
  • Zoom in and out
  • Move around the topography

Supported Environments

React Topography currently supports React applications created with:

  • Create React App
  • Vite

Note: Support for Next.js or Remix React apps is not yet available.

Limitations

  • The tool may have bugs, and some components might not be recognized.
  • It may not work well for default exports that are imported with a different name than the export name.

Contributing

Feel free to report issues or contribute to the project on GitHub. We welcome feedback and improvements!

License

MIT
