React ERD

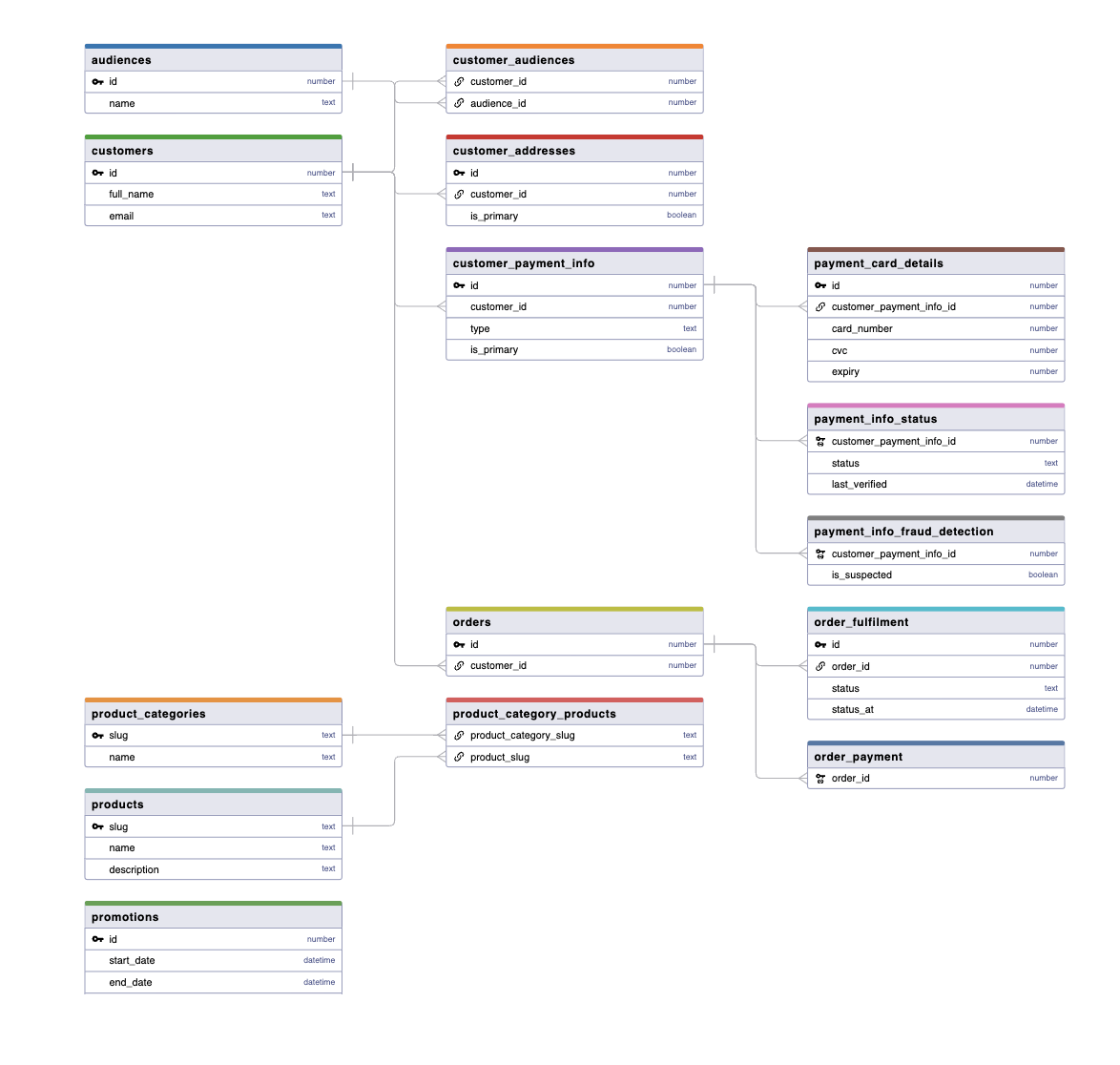

An easy-to-use component for rendering Entity Relationship Diagrams in React

Installation

Install react-erd using npm:

npm install --save react-erd

or yarn:

yarn add react-erd

Compatibility

React ERD is compatible with React v16.8+ and supports ES modules only.

Usage

import { RelationshipDiagram } from 'react-erd';
import 'react-erd/style.css'

function MyComponent() {
  return (
    <RelationshipDiagram
      schemas={[
        {
          name: "order_data",
          tables: [
            {
              name: "orders",
              primaryKey: "id",
              columns: [
                {
                  name: "id",
                  type: "number",
                  foreignKeys: [],
                },
                {
                  name: "customer_id",
                  type: "number",
                  foreignKeys: [
                    {
                      foreignSchemaName: "customer_data",
                      foreignTableName: "customers",
                      foreignColumnName: "id",
                      constrained: true,
                    },
                  ],
                },
              ],
            }
          ]
        },
        ...
      ]}
      onSchemasChange={...}
      onCreateForeignKey={...}
      onDeleteForeignKey={...}
      onAttemptToRecreateExistingRelationship={...}
      onAttemptToConnectColumnToItself={...}
      onAttemptToDeleteConstrainedRelationship={...}
      tableColors={['red', 'blue', 'green']}
    />
  );
}

Caveats

Note that the diagrams produced by this library are not Entity Relationship Diagrams in the strictest sense.

Traditionally, associative/junction tables used in many-to-many relationships are not represented as their own entity in an ERD. Instead the entities on each side of the relationship are joined by a single line, annotated with the appropriate "crow foot" notation to represent the many-to-many relation type.

React ERD was designed for use-cases where you want to provide users with a more 1:1 insight into the actual tables in their database, rather than the entities represented in your application.

In future React ERD may support more traditional forms of ERDs (see roadmap below).

Roadmap

  • Provide a controls overlay for navigating the diagram as an alternative to mouse/touch gestures.
  • Improve control over diagram styles - potentially move towards a "headless" model.
  • Support rendering many-to-many relationships in the traditional way using crow-foot notation and hidden junction table (see caveats).
  • Allow configuration of table positions on screen.
