    ng-chartjs
    TypeScript icon, indicating that this package has built-in type declarations

    0.2.1 • Public • Published

    ng-chartjs npm version LICENSE

    A fully functional Angular2+ chart.js library.This chart library based on ng2-charts.

    NPM

    Thanks to valor-software's ng2-charts.

    Usage & Demo

    Demo

    Installation

    1.You can install ng-chartjs using npm

    npm install ng-chartjs --save


    2.You need to install Chart.js library in application.

    npm install chart.js --save
    npm install @types/chart.js -D


    Usage

    • [ ] To be added

    API

    Import

    1.Normal import.

    import { NgChartjsModule } from 'ng-chartjs';

    // In your App's module:
    imports: [
       NgChartjsModule
    ]


    2.Importing global plugin.

    import { NgChartjsModule } from 'ng-chartjs';

    // In your App's module:
    imports: [
       NgChartjsModule.registerPlugin([...])
    ]


    3.Lazy Module

    import { NgChartjsModule } from 'ng-chartjs';

    // In your lazy module:
    imports: [
       NgChartjsModule.registerPlugin([...])
    ]



    Chart types

    • line
    • bar
    • radar
    • pie
    • polarArea
    • ...

    Plugins

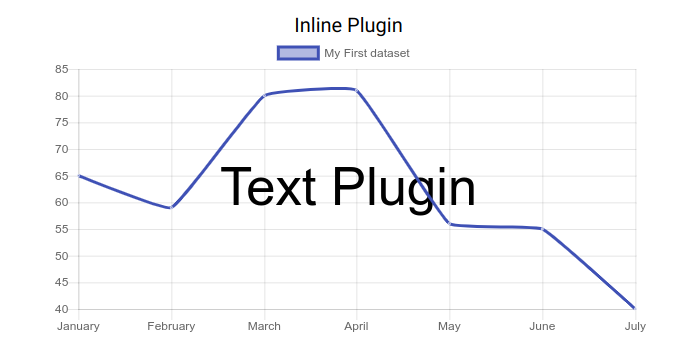

    inline plugin

    Use the plugins Properties.

    eg. source code

    html file.

    <canvas ngChartjs [datasets]="lineChartData" [labels]="lineChartLabels"
              [options]="lineChartOptions" [legend]="lineChartLegend" [chartType]="lineChartType"
              [inlinePlugins]="inlinePlugin">
    </canvas>


    ts file.

    ...
    import { Chart } from 'chart.js';

    lineChartData: Chart.ChartDataSets[] = [
        {
          label: 'My First dataset',
          fill: false,
          lineTension: 0.1,
          backgroundColor: 'rgba(75,192,192,0.4)',
          borderColor: 'rgba(75,192,192,1)',
          borderCapStyle: 'butt',
          borderDash: [],
          borderDashOffset: 0.0,
          borderJoinStyle: 'miter',
          pointBorderColor: 'rgba(75,192,192,1)',
          pointBackgroundColor: '#fff',
          pointBorderWidth: 1,
          pointHoverRadius: 5,
          pointHoverBackgroundColor: 'rgba(75,192,192,1)',
          pointHoverBorderColor: 'rgba(220,220,220,1)',
          pointHoverBorderWidth: 2,
          pointRadius: 1,
          pointHitRadius: 10,
          data: [65, 59, 80, 81, 56, 55, 40],
        },
      ];
      lineChartLabels: Array<any> = ['January', 'February', 'March', 'April', 'May', 'June', 'July'];
      lineChartOptions: any = {
        responsive: true
      };
       lineChartLegend = true;
      lineChartType = 'line';
      inlinePlugin: any;
      textPlugin: any;

      ngOnInit() {
        // inline plugin
        this.textPlugin = [{
          id: 'textPlugin',
          beforeDraw(chart: any): any {
            const width = chart.chart.width;
            const height = chart.chart.height;
            const ctx = chart.chart.ctx;
            ctx.restore();
            const fontSize = (height / 114).toFixed(2);
            ctx.font = `${fontSize}em sans-serif`;
            ctx.textBaseline = 'middle';
            const text = 'Text Plugin';
            const textX = Math.round((width - ctx.measureText(text).width) / 2);
            const textY = height / 2;
            ctx.fillText(text, textX, textY);
            ctx.save();
          }
        }];

        this.inlinePlugin = this.textPlugin;
      }
      ...


    View

    The plugins properties is an array of objects that allows multiple inline plugins to be used simultaneously.

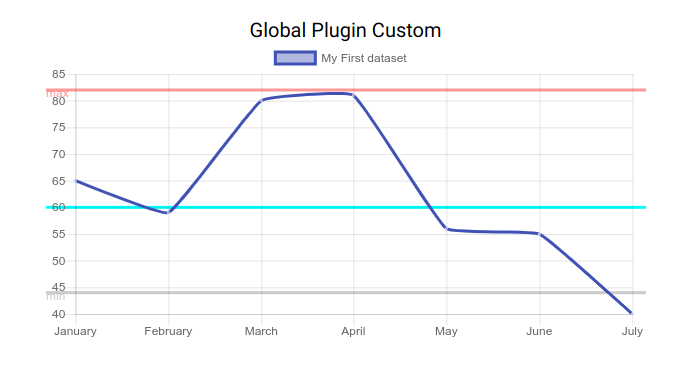

    global plugin

    Using the registration API in app.module.ts.

    eg. source code

    Customize global plugin.

    export function horizonalLine(chartInstance) {
      const yScale = chartInstance.scales['y-axis-0'];
      const canvas = chartInstance.chart;
      const ctx = canvas.ctx;
      let index;
      let line;
      let style;
      let yValue;
      if (chartInstance.options.horizontalLine) {
        for (index = 0; index < chartInstance.options.horizontalLine.length; index++) {
          line = chartInstance.options.horizontalLine[index];

          if (!line.style) {
            style = 'rgba(169,169,169, .6)';
          } else {
            style = line.style;
          }

          if (line.y) {
            yValue = yScale.getPixelForValue(line.y);
          } else {
            yValue = 0;
          }

          ctx.lineWidth = 3;

          if (yValue) {
            ctx.beginPath();
            ctx.moveTo(0, yValue);
            ctx.lineTo(canvas.width, yValue);
            ctx.strokeStyle = style;
            ctx.stroke();
          }

          if (line.text) {
            ctx.fillStyle = style;
            ctx.fillText(line.text, 0, yValue + ctx.lineWidth);
          }
        }
        return;
      }
    }

    const horizonalLinePlugin = {
      beforeDraw: horizonalLine
    };


    Register global plugin

    import { NgChartjsModule } from 'ng-chartjs';

    // In your App's module:
    imports: [
       NgChartjsModule.registerPlugin([horizonalLinePlugin])
    ]


    html file.

     <canvas ngChartjs [datasets]="lineChartData" [labels]="lineChartLabels"
                [options]="lineChartOptions" [legend]="lineChartLegend" [chartType]="lineChartType">
    </canvas>


    ts file.

    lineChartData: Array<any> = [
        {
          label: 'My First dataset',
          fill: false,
          lineTension: 0.1,
          backgroundColor: 'rgba(75,192,192,0.4)',
          borderColor: 'rgba(75,192,192,1)',
          borderCapStyle: 'butt',
          borderDash: [],
          borderDashOffset: 0.0,
          borderJoinStyle: 'miter',
          pointBorderColor: 'rgba(75,192,192,1)',
          pointBackgroundColor: '#fff',
          pointBorderWidth: 1,
          pointHoverRadius: 5,
          pointHoverBackgroundColor: 'rgba(75,192,192,1)',
          pointHoverBorderColor: 'rgba(220,220,220,1)',
          pointHoverBorderWidth: 2,
          pointRadius: 1,
          pointHitRadius: 10,
          data: [65, 59, 80, 81, 56, 55, 40],
        },
      ];
      lineChartLabels: Array<any> = ['January', 'February', 'March', 'April', 'May', 'June', 'July'];
      lineChartOptions: any = {
        responsive: true,
        horizontalLine: [{  // use custom global plugin
          y: 82,
          style: 'rgba(255, 0, 0, .4)',
          text: 'max'
        }, {
          y: 60,
          style: '#00ffff',
        }, {
          y: 44,
          text: 'min'
        }]
      };
      lineChartLegend = true;
      lineChartType = 'line';


    View

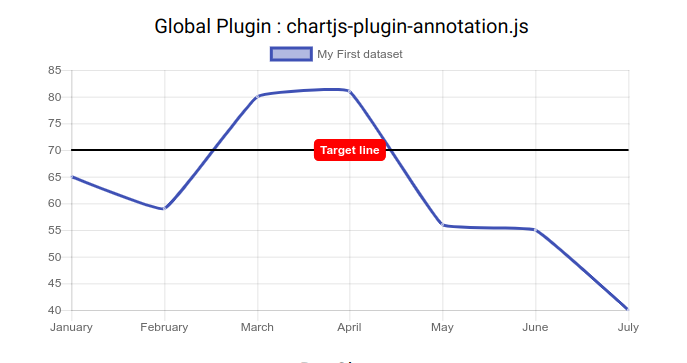

    Import third-party plugin libraries.

    eg. source code

    import * as ChartAnnotation from 'chartjs-plugin-annotation';
    const chartAnnotation = ChartAnnotation;
    ...

    // In your App's module:
    imports: [
       NgChartjsModule.registerPlugin([chartAnnotation])
    ]


    Using the plugin directly within the options property.

    options = {
        responsive: true,
        annotation: {  // use global plugin.
              annotations: [
              {
              drawTime: 'afterDraw',
              type: 'line',
              mode: 'horizontal',
              scaleID: 'y-axis-0',
              value: 70,
              borderColor: '#000000',
              borderWidth: 2,
              label: {
                backgroundColor: 'red',
                content: 'Target line',
                enabled: true,
                position: 'center',
              }
            }
              ]
        }
    };


    View

    The parameter of registerPlugin function is an array of objects.

    Get chart.js instance

    Set the id attribute of the element,then Get the chart.js object by id. see source code

    html file

        <div style="position: relative; width: 600px;">
          <canvas id="testChart" ngChartjs [datasets]="lineChartData" [labels]="lineChartLabels"
          [options]="lineChartOptions" [legend]="lineChartLegend" [chartType]="lineChartType" [resetOption]="resetOption"></canvas>
        </div>


    ts file

    ...
    import { NgChartjsService } from 'ng-chartjs';
    ...
    ngInit() {
        const chart: any = this.ngChartjsService.getChart('testChart');
        chart.options.scales.xAxes[0].ticks.display = false;
        chart.update();
    }
    ...


    Get NgChartjs Directive instance

    html

    <canvas #ngChartjs="ngChartjs"></canvas>


    ts

    @ViewChild('ngChartjs', {static: true})
    private readonly ngChartjs: NgChartjsDirective;


    Get random color

    import { getColors } from 'ng-chartjs';


    generateColor, generateColors...

    Properties

    Property Type Explanation
    data Array<number[]> number[]
    datasets Array<{data: Array<number[]> number[], label: string}>
    labels ?Array x axis labels. It's necessary for charts: line, bar and radar. And just labels (on hover) for charts: polarArea, pie and doughnut
    chartType ?string indicates the type of charts, it can be: line, bar, radar, pie, polarArea, doughnut
    options ?any chart options (as from Chart.js documentation)
    colors ?Array data colors, will use default and
    legend ?boolean=false if true show legend below the chart, otherwise not be shown
    inlinePlugins any[] Chart.js inline plugin. Chart.js Plugins, Other Reference
    adding { labels: any[], data: any[][] } You can add new data and update chart. It needs to be reassigned to trigger.
    removing {orientation: string} You can delete the latest or oldest data.It needs to be reassigned to trigger
    resetOption any Reset options can trigger update chart
    noZone boolean Default value is true, if enabled it, it will protected from zone effects and improve performance.

    Method

    • chart -- Get chartjs instance
    • update -- Update chartjs
    • addData -- Dynamically add data to chart Parameter: labels and data
    • remove -- Dynamically remove data to chart Parameter: oldest or latest

    Events

    • chartClick : fires when click on a chart has occurred, returns information regarding active points and labels
    • chartHover : fires when mousemove (hover) on a chart has occurred, returns information regarding active points and labels

    License

    The MIT License (see the LICENSE file for the full text)
