fields-cli

fieldset-cli

Create boxes in the terminal

This is temporary fork of boxen with posibility to set title of box

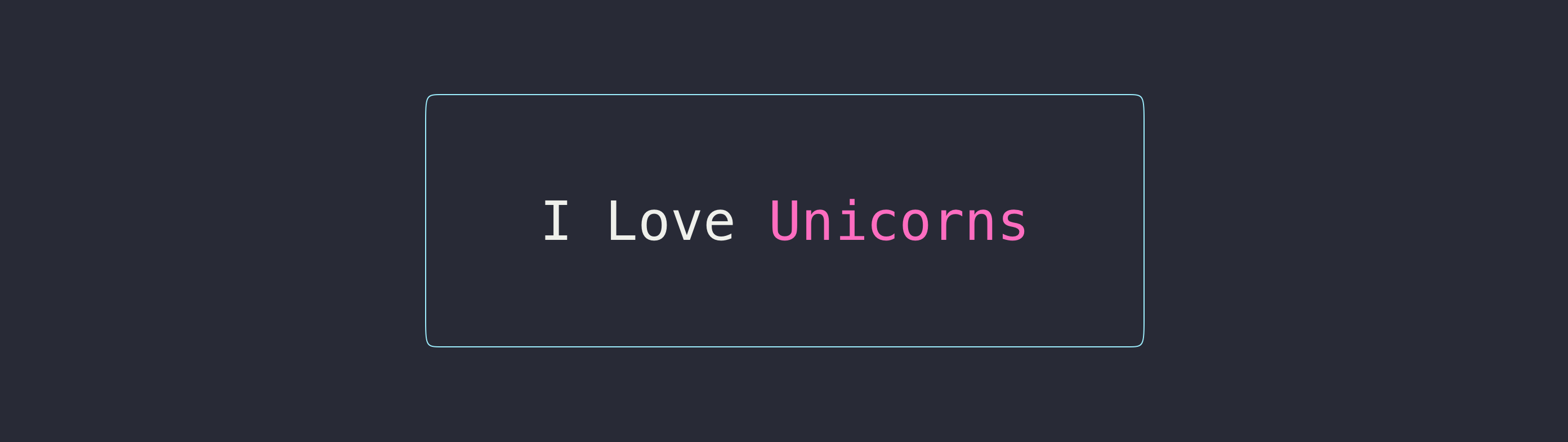

Example

Install

$ npm install fieldset-cli

Usage

const fieldset = require('fieldset-cli');

console.log(fieldset('unicorn', {padding: 1}));
/*
┌─────────────┐
│             │
│   unicorn   │
│             │
└─────────────┘
*/

console.log(fieldset('unicorn', {padding: 1, margin: 1, borderStyle: 'double'}));
/*

   ╔═════════════╗
   ║             ║
   ║   unicorn   ║
   ║             ║
   ╚═════════════╝

*/

API

fieldset(text, options?)

text

Type: string

Text inside the box.

options

Type: object

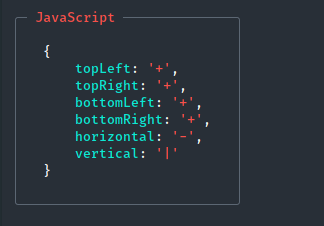

title

Type: string
Title of box

titleColor

Type: string
Values: 'black' 'red' 'green' 'yellow' 'blue' 'magenta' 'cyan' 'white' 'gray' or a hex value like '#ff0000'

Color of the box title.

titleDim

Type: boolean
Default: false

Reduce opacity of the box title.

borderColor

Type: string
Values: 'black' 'red' 'green' 'yellow' 'blue' 'magenta' 'cyan' 'white' 'gray' or a hex value like '#ff0000'

Color of the box border.

borderStyle

Type: string | object
Default: 'single'
Values:

• 'single'

┌───┐
│foo│
└───┘

• 'double'

╔═══╗
║foo║
╚═══╝

• 'round' ('single' sides with round corners)

╭───╮
│foo│
╰───╯

• 'bold'

┏━━━┓
┃foo┃
┗━━━┛

• 'singleDouble' ('single' on top and bottom, 'double' on right and left)

╓───╖
║foo║
╙───╜

• 'doubleSingle' ('double' on top and bottom, 'single' on right and left)

╒═══╕
│foo│
╘═══╛

• 'classic'

+---+
|foo|
+---+

Style of the box border.

Can be any of the above predefined styles or an object with the following keys:

{
    topLeft: '+',
    topRight: '+',
    bottomLeft: '+',
    bottomRight: '+',
    horizontal: '-',
    vertical: '|'
}

dimBorder

Type: boolean
Default: false

Reduce opacity of the border.

padding

Type: number | object
Default: 0

Space between the text and box border.

Accepts a number or an object with any of the top, right, bottom, left properties. When a number is specified, the left/right padding is 3 times the top/bottom to make it look nice.

margin

Type: number | object
Default: 0

Space around the box.

Accepts a number or an object with any of the top, right, bottom, left properties. When a number is specified, the left/right margin is 3 times the top/bottom to make it look nice.

float

Type: string
Default: 'left' Values: 'right' 'center' 'left'

Float the box on the available terminal screen space.

backgroundColor

Type: string Values: 'black' 'red' 'green' 'yellow' 'blue' 'magenta' 'cyan' 'white' 'gray' or a hex value like '#ff0000'

Color of the background.

align

Type: string
Default: 'left'
Values: 'left' 'center' 'right'

Align the text in the box based on the widest line.
