Database Notebook

Database Notebook is a Visual Studio Code extension that allows access to various databases through the VSCODE Notebook interface.

It also provides a CSV and Har file preview feature.

Features

Access various databases through Notebooks, Sidebars, and panel UIs
- MySQL, PostgreSQL, SQL Server, SQLite, Redis, AWS, Keycloak, Auth0
Execute & stop SQL, JavaScript code in node.js
Execute SQL mode
- Execute query (Default)
- Execute explain plan (Generates a query plan).
- Execute explain analyze (Displays actual execution time and statistics)
SQL history management
Variable sharing between notebook cells
ER diagram creation in mermaid format
Count all tables in the schema
Provide IntelliSense with database resource names and comments
Intuitive visualization of result sets
- Difference display using comparison key (Primary or Unique key)
- Label display using code label resolver
- Verify result sets comply with a rule.
- Output in Excel file format
- Generate descriptive statistics
- Support graphs
Create and execute SQL statements to undo changes
Export notebook as an HTML file
File preview
- CSV file preview
- Har file preview
Evaluate SQL statements with AI
Generate SQL queries with AI

Screenshots

Setup connection settings, access to Mysql through the Side-panel
Access to Mysql through the Notebook ( Create a new blank Database Notebook )
Execute SQL mode
- Execute query (Default)
- Execute explain plan (Generates a query plan).
- Execute explain analyze (Displays actual
Variable sharing between notebook cells
ER diagram creation in mermaid format
Format SQL statement
Count all tables in the schema
Export notebook as an HTML file
Create DB Notebook from an sql file
Evaluate SQL statements with AI
Generate SQL queries with AI

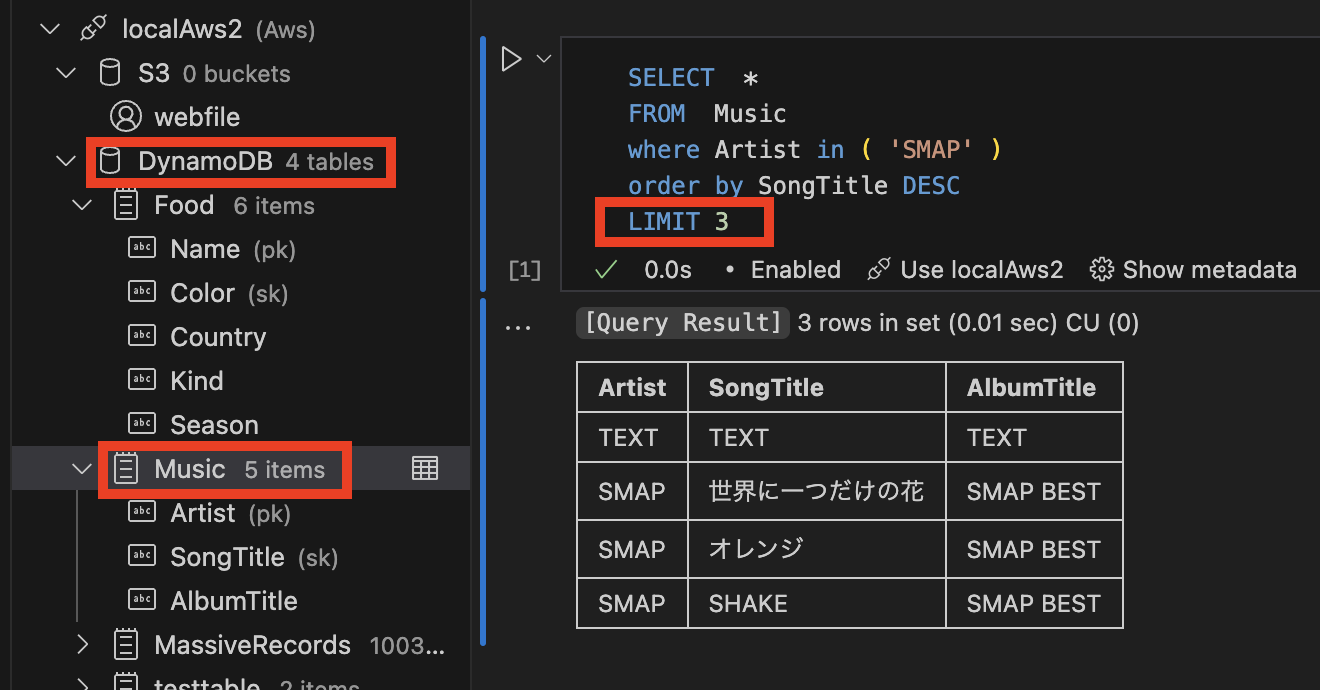

Access to Aws( DynamoDB ) through the Notebook
- On the DB Notebook, specify the number of counts in the LIMIT clause

Screenshots ( Intuitive visualization of result sets ) ( Click here )

Difference display using comparison key (Primary or Unique key)

Create and execute SQL statements to undo changes

Label display using code label resolver ( `Create a new blank Code label resolver` )

Verify records comply with a rule ( `Create a new blank DB record rule` )

Generate descriptive statistics

Screenshots ( Access to the Keycloak from the side panel ) ( Click here )

Access to the Keycloak from the side panel to display changes in user information.

Expand and display JSON items in columns.

Screenshots ( File viewer ) ( Click here )

Csv file viewer

After previewing the CSV file, descriptive statistics were displayed according to its content.

Har file viewer

Tips

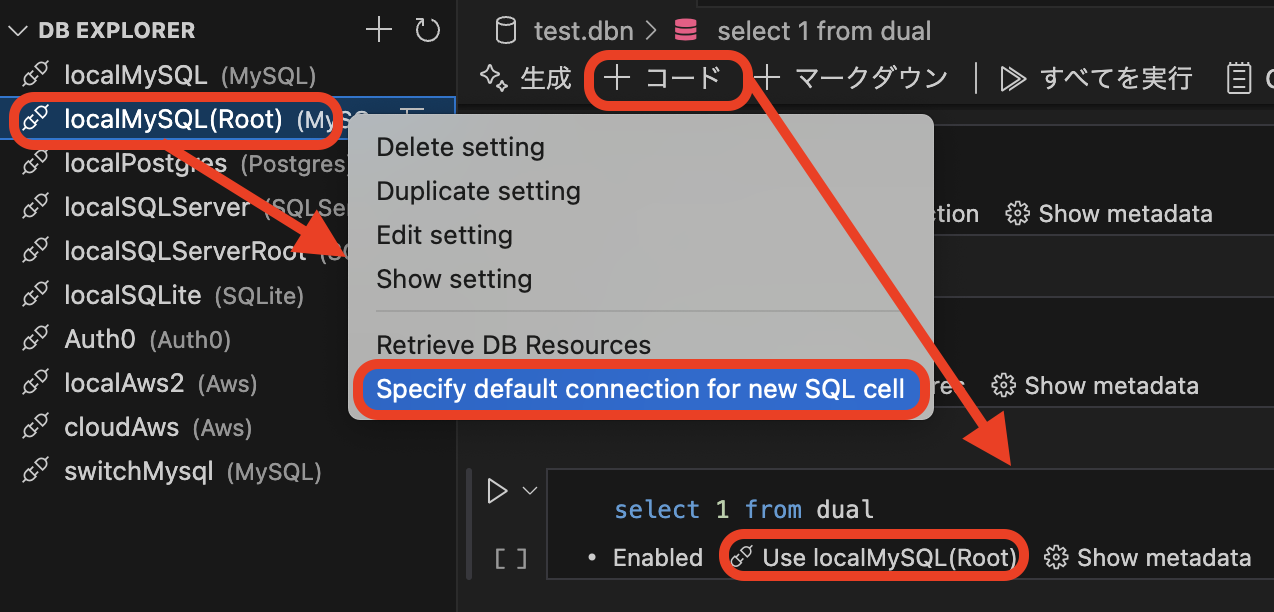

You can specify a default connection definition each time you add a new SQL cell to the notebook

Examples

Keyboard shortcuts

You can open this editor by going to the menu under Code > Settings > Keyboard Shortcuts or by using the Preferences: Open Keyboard Shortcuts command (⌘K ⌘S).

Command	Keybindings	When	Source
Mark cell as skip or not	ctrl+alt+s	notebookType == 'database-notebook-type' && notebookCellListFocused && notebookCellType == 'code'	Database notebook
Specify connection to use	ctrl+alt+c	notebookType == 'database-notebook-type' && notebookCellListFocused && cellLangId == 'sql'	Database notebook
Notebook: cell execution	ctrl+enter	-	System (default)

Requirements

node.js >= 18

Recommended Extensions

The ER diagram is output in mermaid format. It is recommended to use the "Markdown Preview Mermaid Support" extension together to visualize it.
