@kitazaki/node-red-contrib-mcu-display-image

node-red-contrib-mcu-display-image

Node to display JPEG/PNG with Node-RED MCU

Overview

There are two nodes, mcu_displayjpeg and mcu_displaypng.

How to use

1. Build the environment for the Node-RED MCU plugin

2. Install this node

Add node-red-contrib-mcu-display-image from the "Manage palette" in Node-RED

or execute the following command.

npm install <folder_path>

3. Try to build with the Node-RED MCU plugin.

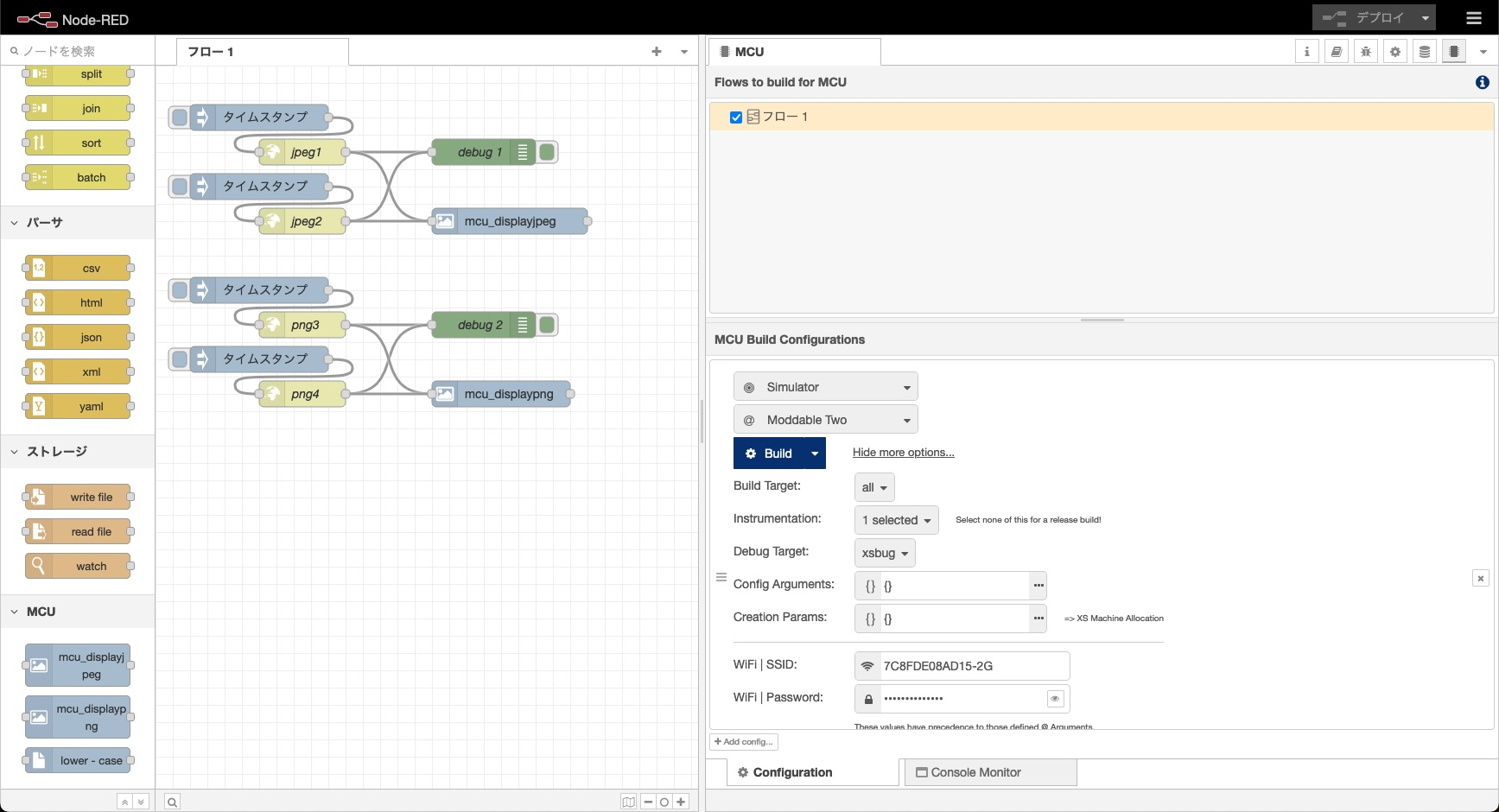

Node-RED flow

Node-RED flow

Sample test

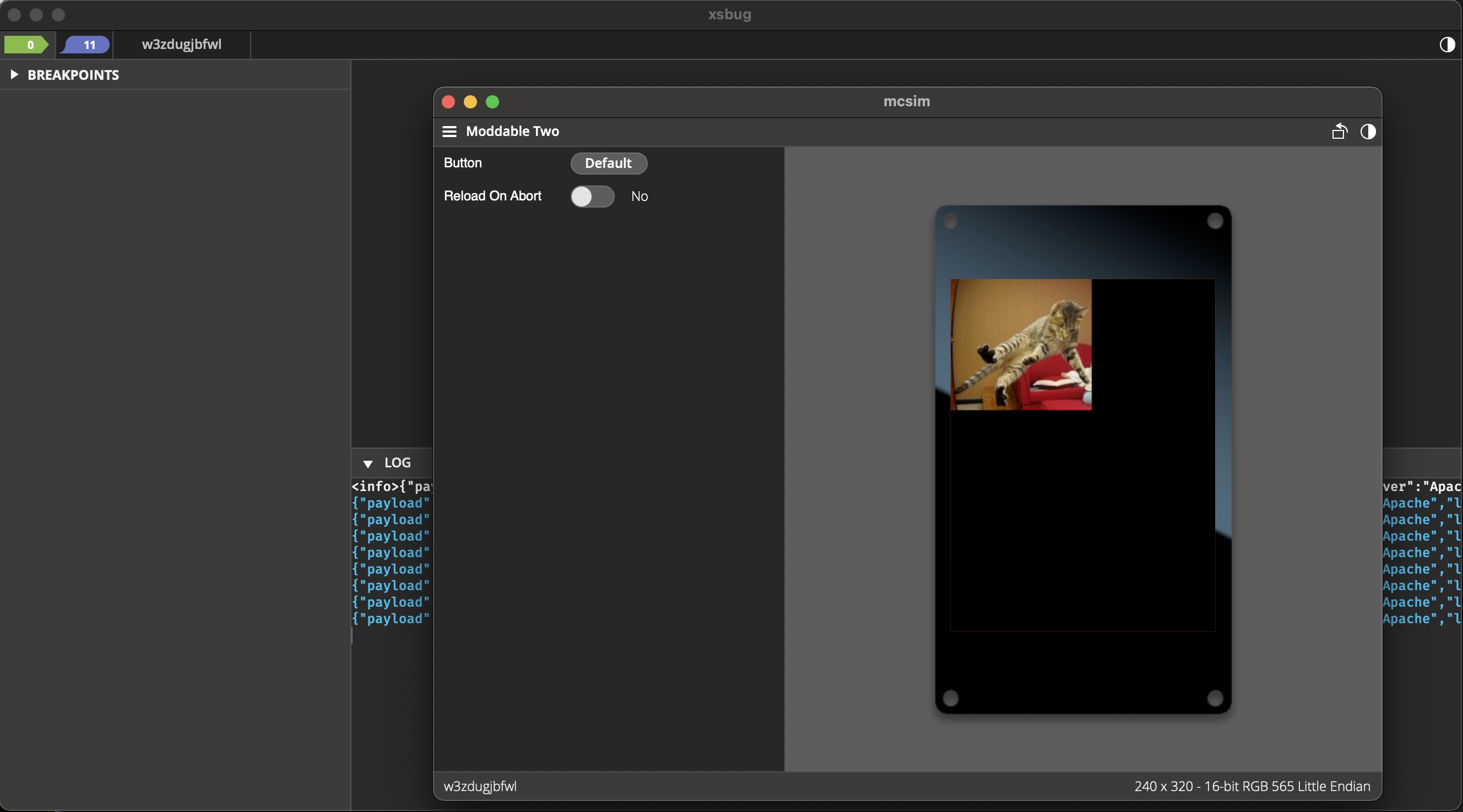

Sample test on simulator
