@feedzai/autovizua11y

AutoVizuA11y

Description

AutoVizuA11y is a React library that automates the process of creating accessible data visualizations. It focuses on features that improve the exploration of charts with screen readers, without requiring extensive accessibility knowledge from developers.

This tool focuses on three different key components that were identified after consulting with several screen reader users: chart navigability; shortcuts that allow one to navigate the charts and get insights more quickly; and insightful chart descriptions.

Install AutoVizuA11y

Via npm

npm i @feedzai/autovizua11y

Via Github

Clone the repository into a local directory using:

git clone https://github.com/feedzai/autovizua11y.git
cd autovizua11y

AutoVizuA11y for Developers

Inputs

• A set of props, passed in the AutoVizuA11y component, with information regarding the data visualization wrapped.
• The chart that will receive AutoVizuA11y's accessibility features.

Outputs

• Navigation
  • Between data visualizations wrapped by AutoVizuA11y present on the same page;
  • Between those same data visualizations and underlying data elements;
  • Between the underlying data elements.
• Descriptions
  • Labels for every data element;
  • Two descriptions for every data visualization wrapped by AutoVizuA11y. Both are composed of a title, information on the visualization type, and a human-like description generated using the gpt-3.5-turbo model from OpenAI. They can be made longer or shorter, depending on the user's requirements. The shorter description is announced by default once the data visualization gets focused. The descriptions can also be inputted manually.
• Shortcuts
  • That improves navigation by increasing speed and efficiency in the exploration of a chart;
  • That provides statistical insights about the data.

AutoVizuA11y properties

Property	Required/Optional	Type	Description
data	Required	array of objects	It accepts an array of objects. The values of each pair are added, in order, to a string and read when the corresponding DOM element is focused. Note: the number of objects need to match the total data points represented in the DOM.
selectorType	Required	object	It expects either the HTML type (for example "rect", "circle", or "path") of the data elements or their class name — only one can be chosen. This way, the data elements should be navigable and have an aria-label. AutoVizuA11y assumes that the number of data elements with the specified class or type matches the number of elements passed through the data prop (ensuring that no element is left without a label).
type	Required	string	Accepts a string that specifies the type of data visualization. It is announced once a data visualization gets focused, after the title and before the descriptions.
title	Required	string	Expect a string containing the title of the visualization, which should be short and concise, showcasing the purpose of the content inside the data visualization. It is announced once a data visualization gets focused, before the type and the longer or shorter descriptions.
context	Required	string	Requires a string that provides the context in which the data visualization is present. This way, when generating the descriptions, better results are achieved.
insights	Required	string	Expects a string that corresponds to the key in the data object from which values will be used to derive statistical insights. For example, If the insights should be derived from the amount in the data, then that's what should be passed in this property. If an empty string "" is passed, the user will receive an alert stating 'This shortcut does not work in this chart.' This applies to shortcuts related to minimum, average, and maximum values, as well as those involving comparisons to these insights and other data points. Note: the values used for insights need to be of type Number.
descriptor	Optional	string	By receiving a string, this descriptor helps better contextualize what data elements are. It is added at the end of each data element. If no descriptor is provided, blank text (””) is set instead.
multiSeries	Optional	string	When working with multi-series data, provide a string that corresponds to the key in the data object that defines each series, allowing users to navigate between different series/clusters in addition to regular navigation. If an empty string "" is passed, the tool interprets the data as single series.
autoDescriptions	Required (option A)	object	Accepts an object with various options regarding the creation of automatic descriptions with OpenAI models. AutoVizuA11y does two API calls per wrapped visualization, one for each type of description (longer and shorter). The options for this prop can be checked here. This prop cannot be used at the same time as "manualDescriptions".
manualDescriptions	Required (option B)	object	Accepts an object with two descriptions. By providing this prop, no automatic descriptions are generated, thus not having any costs associated. The options for this prop can be checked here. This prop cannot be used at the same time as "autoDescriptions".

autoDescriptions prop options

Keys	Required/Optional	Type	Description
dynamicDescriptions	Optional	boolean	Setting this to false stops the component from generating the two descriptions for that chart after the first render (the descriptions get saved in localstorage). This should be useful for static visualizations.
apiKey	Required	string	Accepts a string containing the OpenAI API key so that human-like descriptions of the data visualization can be automatically generated. You can get yours here, It is recommended for the developer to take the necessary precautions in order to hide the API key.
model	Optional	string	Accepts a string containing the OpenAI model responsible for generating both descriptions. You can check the models available here. If no model is provided, gpt-3.5-turbo will be chosen by default.
temperature	Optional	number	Accepts a number, from 0 to 1 representing the temperature used in the model responsible for generating both descriptions. Descriptions with temperatures closer to 0 should be more deterministic between API calls while being closer to 1 should be more random between API calls. You can check the models available here. If no model is provided, 0 will be chosen by default.

manualDescriptions prop options

Keys	Required/Optional	Type	Description
longer	Required	string	Accepts a string with the longer description associated with the wrapped data visualization.
shorter	Required	string	Accepts a string with the shorter description associated with the wrapped data visualization.

Sample Implementation

import { AutoVizuA11y } from "@feedzai/autovizua11y";

// ...

const barData = [
	{
		day: "Monday",
		hours: 8,
	},
	{
		day: "Tuesday",
		hours: 6.5,
	},
	{
		day: "Wednesday",
		hours: 7,
	},
	{
		day: "Thursday",
		hours: 9,
	},
	{
		day: "Friday",
		hours: 11,
	},
	{
		day: "Saturday",
		hours: 2,
	},
	{
		day: "Sunday",
		hours: 3,
	},
];

const multiLineData = [
	{
		x: 2010,
		y: 4.37,
		series: "Croatia",
	},
	{
		x: 2015,
		y: 4.25,
		series: "Croatia",
	},
	{
		x: 2020,
		y: 4.1,
		series: "Croatia",
	},
	{
		x: 2022,
		y: 4.03,
		series: "Croatia",
	},
	{
		x: 2010,
		y: 4.25,
		series: "Latvia",
	},
	{
		x: 2015,
		y: 4.25,
		series: "Latvia",
	},
	{
		x: 2020,
		y: 4.25,
		series: "Latvia",
	},
	{
		x: 2022,
		y: 4.25,
		series: "Latvia",
	},
	{
		x: 2010,
		y: 4.25,
		series: "Lithuania",
	},
	{
		x: 2015,
		y: 4.25,
		series: "Lithuania",
	},
	{
		x: 2020,
		y: 4.25,
		series: "Lithuania",
	},
	{
		x: 2022,
		y: 4.25,
		series: "Lithuania",
	},
];

const longerDesc = "...";
const shorterDesc = "...";

// ...

function App() {
	return (
		<>
			{/* SingleSeries with automatic descriptions */}
			<AutoVizuA11y
				data={barData}
				selectorType={{ element: "rect" }}
				type="bar chart"
				title="Number of hours spent looking at a screen per day of the week."
				context="Screen time dashboard"
				insights="hours"
				descriptor="hours"
				autoDescriptions={{
					dynamicDescriptions: false,
					apiKey: API_KEY,
					model: "gpt-3.5-turbo",
					temperature: 0.1,
				}}
			>
				<BarChart></BarChart>
			</AutoVizuA11y>

			{/* MultiSeries with manual descriptions */}
			<AutoVizuA11y
				data={multiLineData}
				selectorType={{ element: "circle" }}
				type="Multi line chart"
				title="Latvia, Lithuania, and Croatia are among the countries where population is decreasing"
				context={"Countries in Europe are seeing some of the sharpest population decreases. "}
				insights="y"
				descriptor="millions"
				multiSeries="series"
				manualDescriptions={{
					longer: longerDesc,
					shorter: shorterDesc,
				}}
			>
				<LineChart></LineChart>
			</AutoVizuA11y>
		</>
	);
}

AutoVizuA11y for screen reader users

All the following shortcuts only work once focused on a data visualization (or adjacent data elements) covered by AutoVizuA11y.

Besides the navigation between data visualizations, every other shortcut outcome (namely the statistical insights) only regards each individual visualization.

The tool was tested with VoiceOver, JAWS and NVDA, as well as the most commonly used browsers. The key combinations for each shortcut were chosen with the intention to avoid collisions with others from the tested screen readers and browsers. That said, it is suggested for users of JAWS and NVDA turn on "Focus mode" (Insert + Space) so that the navigation with arrow keys can be done between and inside the visualizations.

Examples

You can check a series of examples built using AutoVizuA11y here (it requires an OpenAI API key).

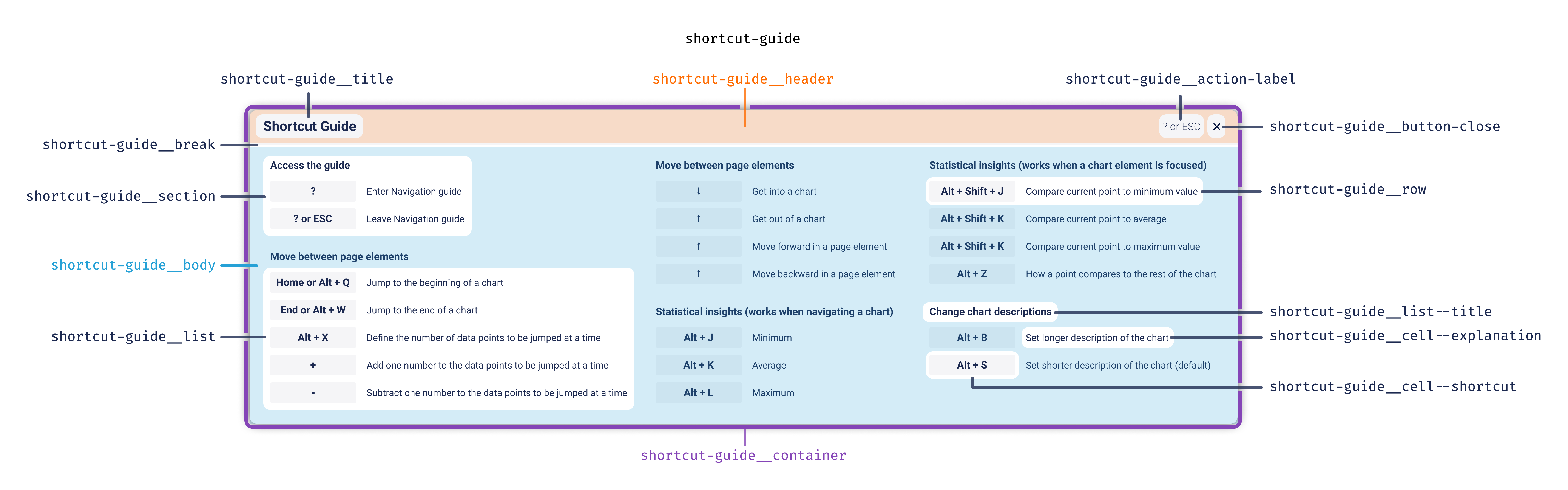

Shortcut Guide

Activation Key(s)	Description
?	Enter shortcut guide
? or Esc	Leave shortcut guide
↓	Get into a chart
↑	Get out of a chart
→	Move forward in a page element
←	Move backward in a page element
Alt (option) + M	Move between series of data inside the chart
Home or Alt (option) + Q	Jump to the beginning of a chart
End or Alt (option) + W	Jump to the end of a chart
Alt (option) + X	Define the number of data points to be jumped at a time
+	Add one number to the data points to be jumped at a time
-	Subtract one number to the data points to be jumped at a time
Alt (option) + J	Minimum value
Alt (option) + K	Average value
Alt (option) + L	Maximum value
Alt (option) + Shift + J	Compare current point to minimum value of the visualization
Alt (option) + Shift + K	Compare current point to average value of the visualization
Alt (option) + Shift + L	Compare current point to maximum value of the visualization
Alt (option) + Z	How a point compares to the rest of the chart
Alt (option) + B	Set longer description of the chart
Alt (option) + S	Set shorter description of the chart (default)
