@cap-js/cap-operator-plugin

CAP Operator Plugin

CAP Operator Plugin provides an easy way to generate CAP Operator resources to deploy multitenant CAP Applications.

Requirements

The CAP Operator plugin requires @sap/cds-dk: ">=7.8.1". If @sap/cds-dk is installed globally, please ensure that the installed version is greater than or equal to 7.8.1.

Setup

To integrate the CAP Operator Plugin into your project, follow these steps:

1. Add this self-configuring plugin package to your project:

 npm add @cap-js/cap-operator-plugin -D

2. After installation, execute one of the following commands based on your requirements:

   • To add a basic chart folder, use:

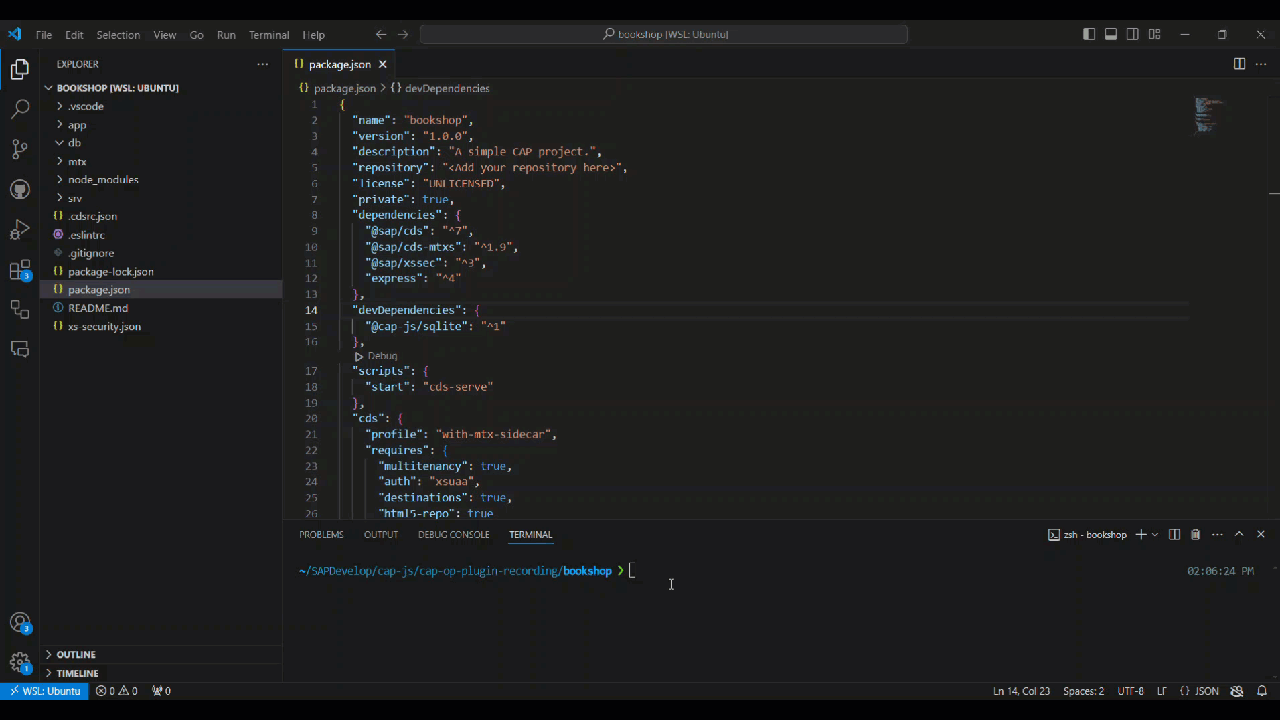

     cds add cap-operator

     During cds build, the plugin will automatically inject the templates folder into the final chart.

   • To add a chart folder with templates included, use:

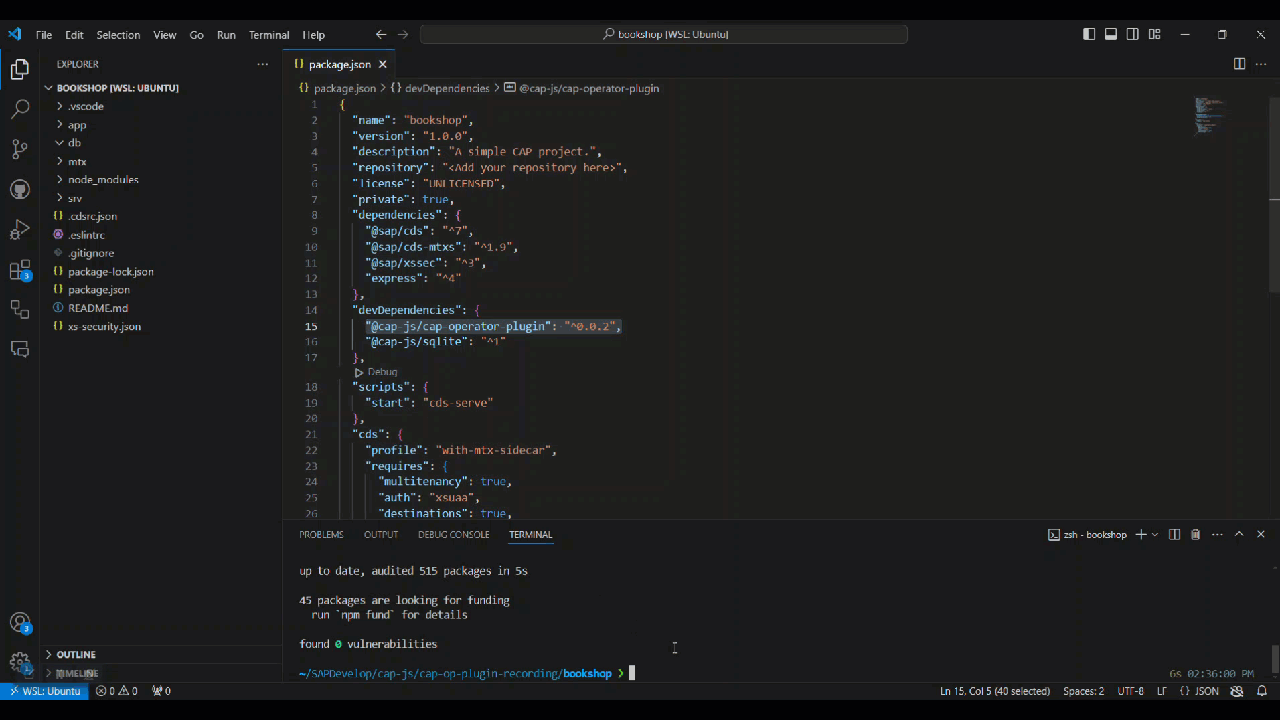

     cds add cap-operator --with-templates

     During cds build, the plugin will copy the templates folder into the final chart.

   ⚠️ Experimental

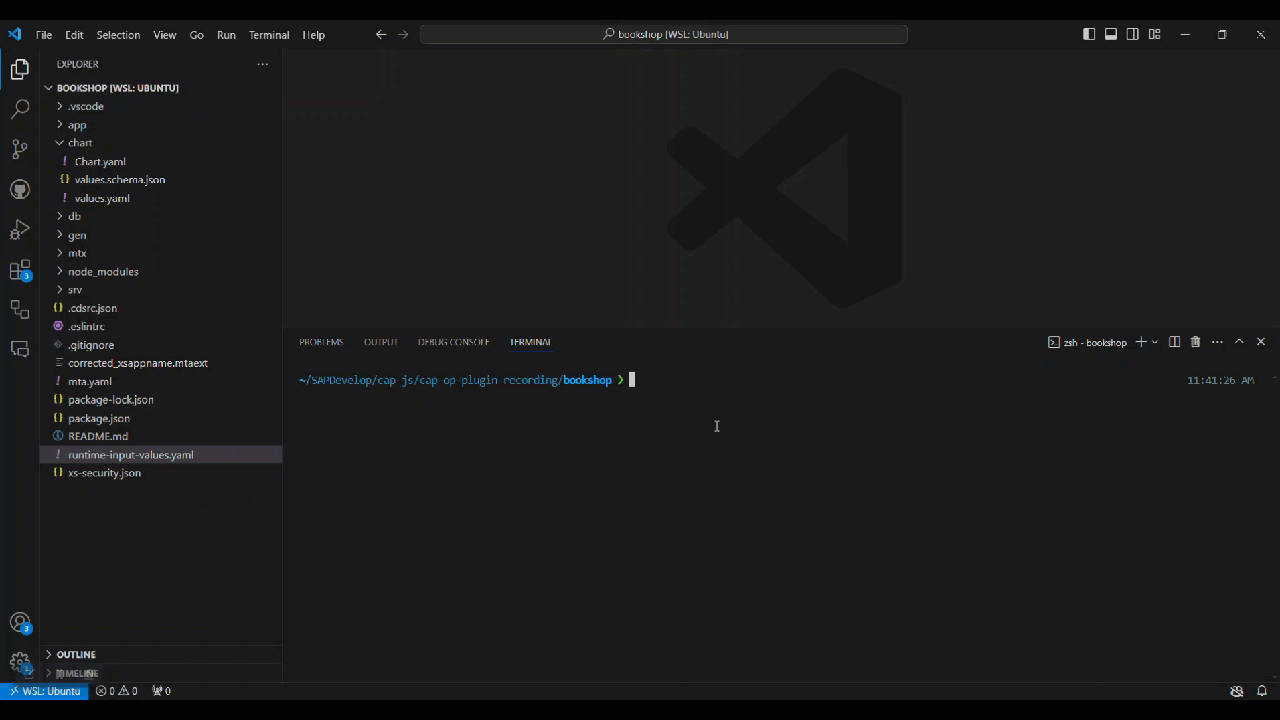

   To add a chart folder with the values.yaml prefilled with the design-time deployment details from the mta and mta extensions, use:

   cds add cap-operator --with-mta <mta-yaml-file-path> --with-mta-extensions <mta-ext-yaml-file-path>

   If you have multiple mta extensions, you can pass them as a comma-separated string to merge them.

3. Once executed, the chart folder or chart folder with templates will be added to your project directory.

4. The values.yaml requires two types of details:

   • Design-time deployment details
     • serviceInstances
     • serviceBindings
     • workloads - There are two types of workloads:
       • Deployment definition
       • Job definition
     • tenantOperations
     • contentJobs
   • Runtime deployment details
     • app
     • btp
     • imagePullSecrets
     • env information inside workloads like database instance ID

   As a developer, you must fill in the design-time deployment details in the values.yaml file, which can then be pushed to your repository. The plugin will auto-populate some of these details based on the project configuration, but verifying them and manually filling in any missing information is essential. You can refer to values.schema.json file for the structure of the values.yaml file.

   You can utilize a YAML schema validation extension such as YAML, or run the following command to validate the values.yaml file. You can ignore the errors from runtime values as they are not filled in yet.

   helm lint <chart-path>

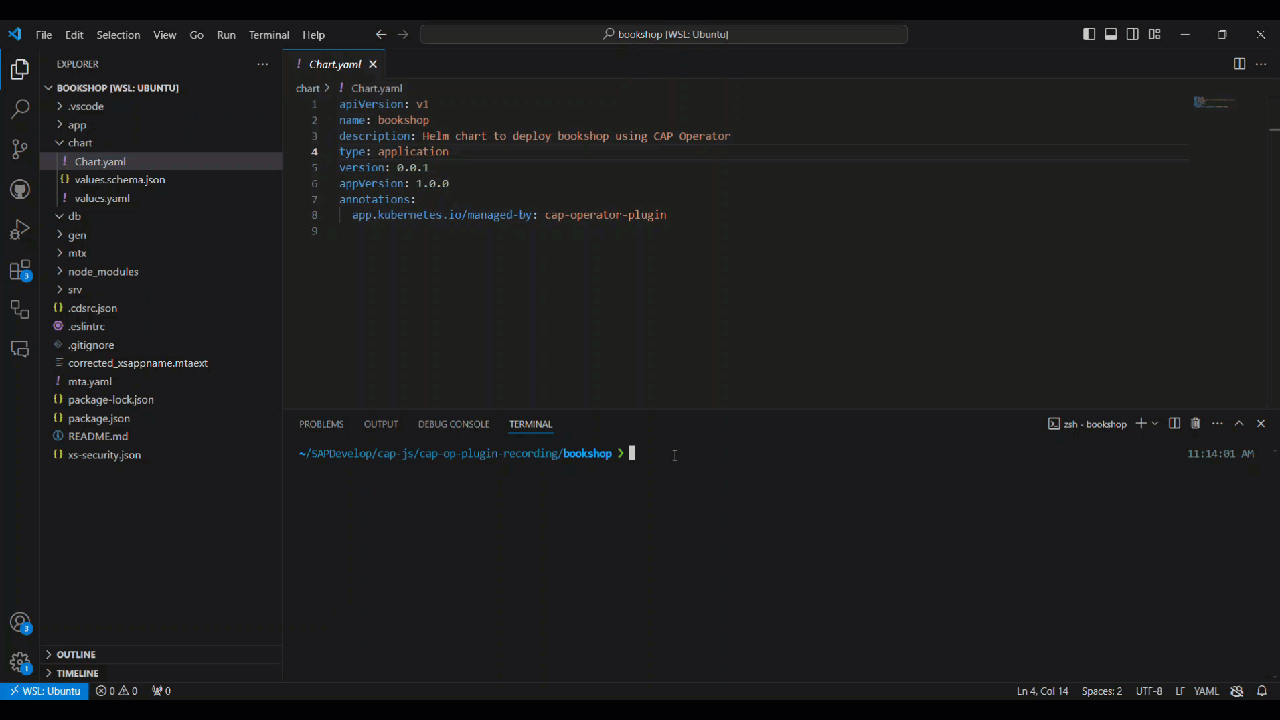

5. After filling all the design-time information in values.yaml, run cds build. The final chart will be generated in the gen folder within your project directory.

6. Now to deploy the application, you can pass the runtime values in a separate runtime-values.yaml file and deploy the chart using the following command:

   helm upgrade -i -n <namespace> <release-name> <project-path>/gen/chart -f <runtime-values.yaml-path>

As a reference, you can check out the CAP Operator helm chart in the sample incident app. And also the corresponding runtime-values.yaml file.

❗Things to Note

• If you are adding the basic chart folder using the cds add cap-operator command, do not modify the values.schema.json file. The templates injected automatically during cds build are tightly coupled with the structure in values.schema.json. If schema changes are needed, use option --with-templates to add the templates folder and adjust them accordingly.

• When defining environment variables for workloads in the values.yaml file, it's important to mirror these definitions in the runtime-values.yaml file. This ensures consistency and avoids potential conflicts, as Helm does not merge arrays. If you're introducing new environment variables in runtime-values.yaml for a workload, remember to include existing variables from values.yaml to maintain coherence.
