@arturwojnar/hermes-postgresql

Hermes PostgreSQL

A mythical god who brings reliability to your system 🫒 by implementing the Outbox pattern, so you don't have to think of it too much.

You don't have to pray for the gifts of nature. Just run npm and type:

npm i hermes hermes-postgresql

If you look for a full example, then here you go! 🎉🎉🎉

You can join the community of Hermes-PostgreSQL at Discrod.

Features

• Hermes PostgreSQL relies on the thin and fast Postgres.js

• Hermes PostgreSQL creates a subscription to PostgreSQL Replication Stream (WAL)

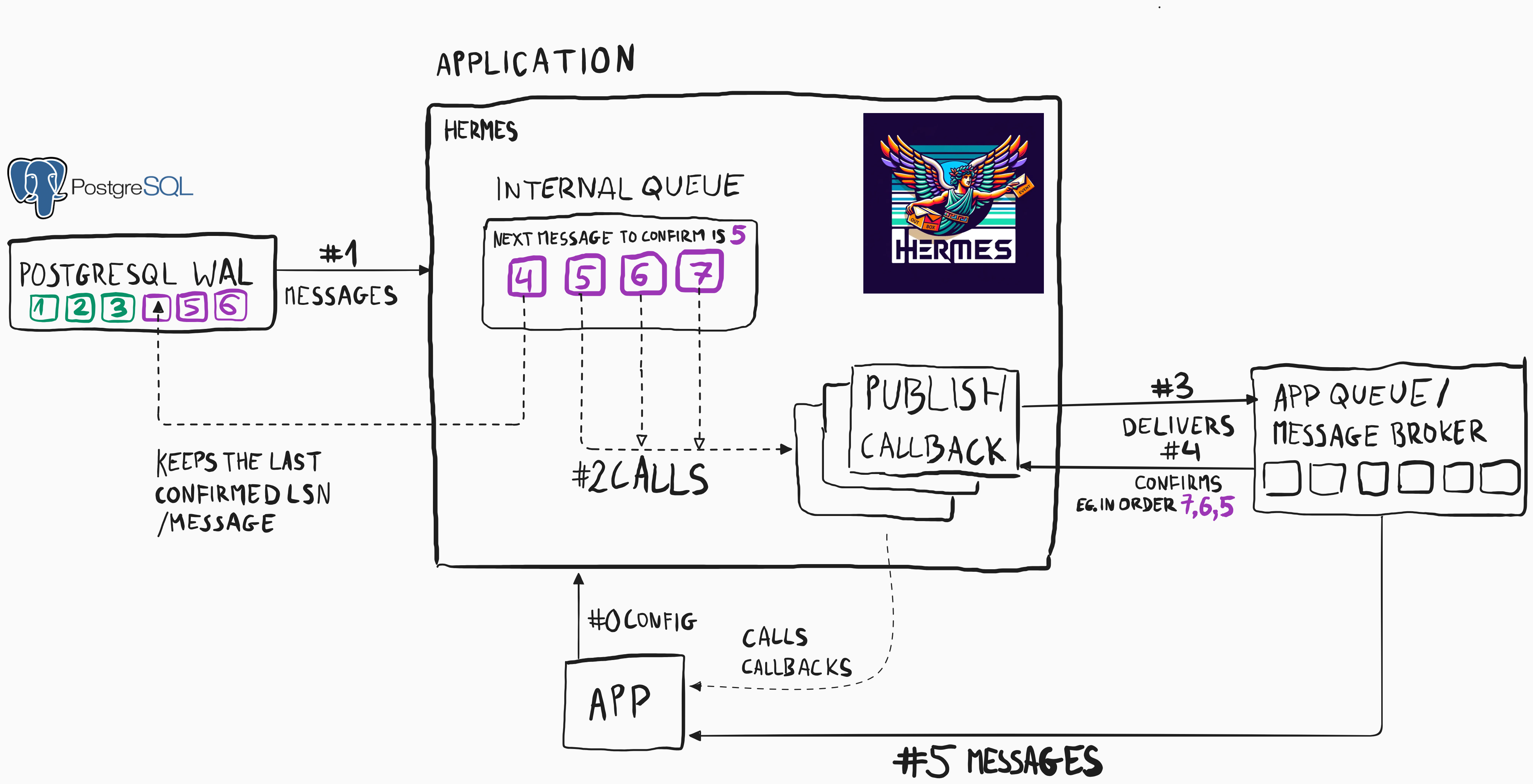

As you can see, Hermes PostgreSQL relies on the WAL (Write-Ahead Log) of the database cluster exposed by the PostgreSQL Logical Replication protocol. Thanks to that, it's fast and reliable; you won't lose any message as it can happen in a classical Outbox implementation.

By default, Hermes PostgreSQL calls a publish callback immediately when a message appears in the PostgreSQL Logical Replication stream. It happens in order of commits.

This means that if messages of numbers 5, 6, and 7 were committed more or less at the same time, then - depending on the callback processing time - they could be processed simultaneously. But Hermes PostgreSQL acknowledges messages to PostgreSQL Logical Replication in order. So, even though the seventh message finished processing first, before the fifth, an acknowledgement will be done only when the fifth is completed successfully.

If the app goes down before the acknowledgment of the fifth message, then after the restart all messages, that is 5, 6 and 7 will be called to be processed again.

Remember, that is what is called at-least-once delivery guarantee 🥰

Check an example how to use the PostgreSQL Logical Replication:

import { DeepReadonly } from 'ts-essentials'
import { addDisposeOnSigterm, type Flavour } from '@arturwojnar/hermes'
import { type HermesMessageEnvelope, type MessageEnvelope, createOutboxConsumer } from '@arturwojnar/hermes-postgresql'

/* Types definition */
type DomainEvent<
  EventType extends string = string,
  EventData extends Record<string, unknown> = Record<string, unknown>,
> = Flavour<
  DeepReadonly<{
    type: EventType
    data: EventData
  }>,
  'DomainEvent'
>
type PatientRegisteredSuccessfully = DomainEvent<
  'PatientRegisteredSuccessfully',
  {
    patientId: PatientId
    patientSub: Subject
  }
>
type PatientRegistrationFailed = DomainEvent<
  'PatientRegisteredSuccessfully',
  {
    email: Email
  }
>
type RegisterPatientEvent = PatientRegisteredSuccessfully | PatientRegistrationFailed

/* Initialization */
const publishOne = async (envelope: HermesMessageEnvelope<RegisterPatientEvent>) => {
  const { message, messageId, redeliveryCount } = envelope

  // Handling the message...
}
const outbox = createOutboxConsumer<RegisterPatientEvent>({
  getOptions() {
    return {
      host: 'localhost',
      port: 5434,
      database: 'hermes',
      user: 'hermes',
      password: 'hermes',
    }
  },
  publish: async (message) => {
    // if this function passes, then the message will be acknowledged;
    // otherwise, in case of an error the message won't be acknowledged.
    if (Array.isArray(message)) {
      for (const nextMessage of message) {
        await publishOne(nextMessage)
      }
    } else {
      await publishOne(message)
    }
  },
  consumerName: 'app',
})

/* How to run the Hermes PostgreSQL */
const stopOutbox = await outbox.start()
addDisposeOnSigterm(stopOutbox)

/* How to use the Hermes PostgreSQL */
const patientRegisterdEvent: MessageEnvelope<PatientRegisteredSuccessfully> = {
  message: {
    type: 'PatientRegisteredSuccessfully',
    data: { patientId: data.systemId, patientSub: data.sub },
  },
  messageId: constructMessageId('PatientRegisteredSuccessfully', data.sub),
  messageType: 'PatientRegisteredSuccessfully',
}

// One transaction that wraps two I/O-distinct operations.
// Now, you are sure that the `PatientRegisteredSuccessfully` will be published at-least-once.
await sql.begin(async (sql) => {
  await storePatient(data.systemId, data.sub, sql)
  // We pass the transaction to the `queue`.
  await outbox.queue(patientRegisterdEvent, { tx: sql })
})

• It is based on a stream, not the pulling. So, it is less I/O operations

• You won't lose any message like it can happen in the classic implementation

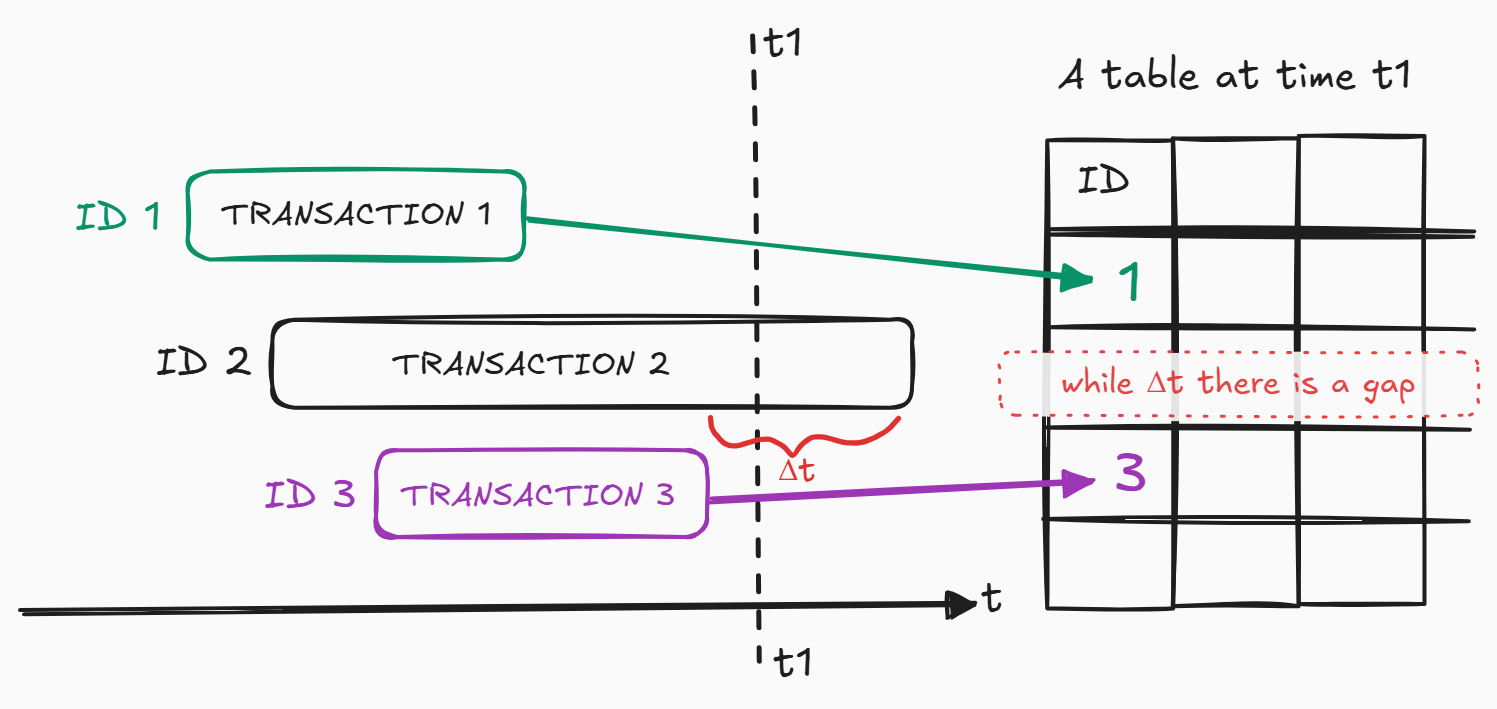

The classic implementation is based on a periodic pull. While doing so, it can happen that we will lose a message, which commiting takes longer than others.

It's the case because the autoincrement identifiers are establish before starting a transaction.

• You can make Hermes PostgreSQL to call only one publish callback at once, the rest will wait for it to be called

const outbox = createOutboxConsumer<RegisterPatientEvent>({
  // ...rest the same as before
  serialization: true,
})

• You can't start two consumers (Hermes PostgreSQL instances) of the same name. It will throw an HermesConsumerAlreadyTakenError

• You can run two consumers of the same name but with a different partition key

const outbox = createOutboxConsumer<RegisterPatientEvent>({
  // ...rest the same as before
  partitionKey: `partition-for-tenant-XYZ`,
})

This is the way you can scale Hermes PostgreSQL horizontally.

• You can use Hermes PostgreSQL without a message broker,

then, the delivering and processing a message is a part of the same operation and can be confirmed only when the message's handler finishes successfully.

If you'd like to perform, e.g. a compensation, then you can use a special Hermes PostgreSQL feature - asynchronous outbox consumer. This is a separate stack of messages which execution and delivering time doesn't matter. It has to happen at one time.

That's so that we don't occupy PostgreSQL WAL when it's not needed.

import { useBasicAsyncOutboxConsumerPolicy } from '@arturwojnar/hermes-postgresql'

const outbox = createOutboxConsumer<RegisterPatientEvent>({
  // ...rest the same as before
  asyncOutbox: useBasicAsyncOutboxConsumerPolicy(),
})

const revertRegistration = async (params: _RevertPatientRegistration['data'], email: Email) => {
  const revertCommand = literalObject<MessageEnvelope<_RevertPatientRegistration>>({
    message: {
      type: '_RevertPatientRegistration',
      data: params,
    },
    messageId: constructMessageId('_RevertPatientRegistration', params.sub.toString()),
    messageType: '_RevertPatientRegistration',
  })

  // `send`, in contrast to the `queue`, puts a message in the asynchronous stack.
  await outbox.send(revertCommand)
}

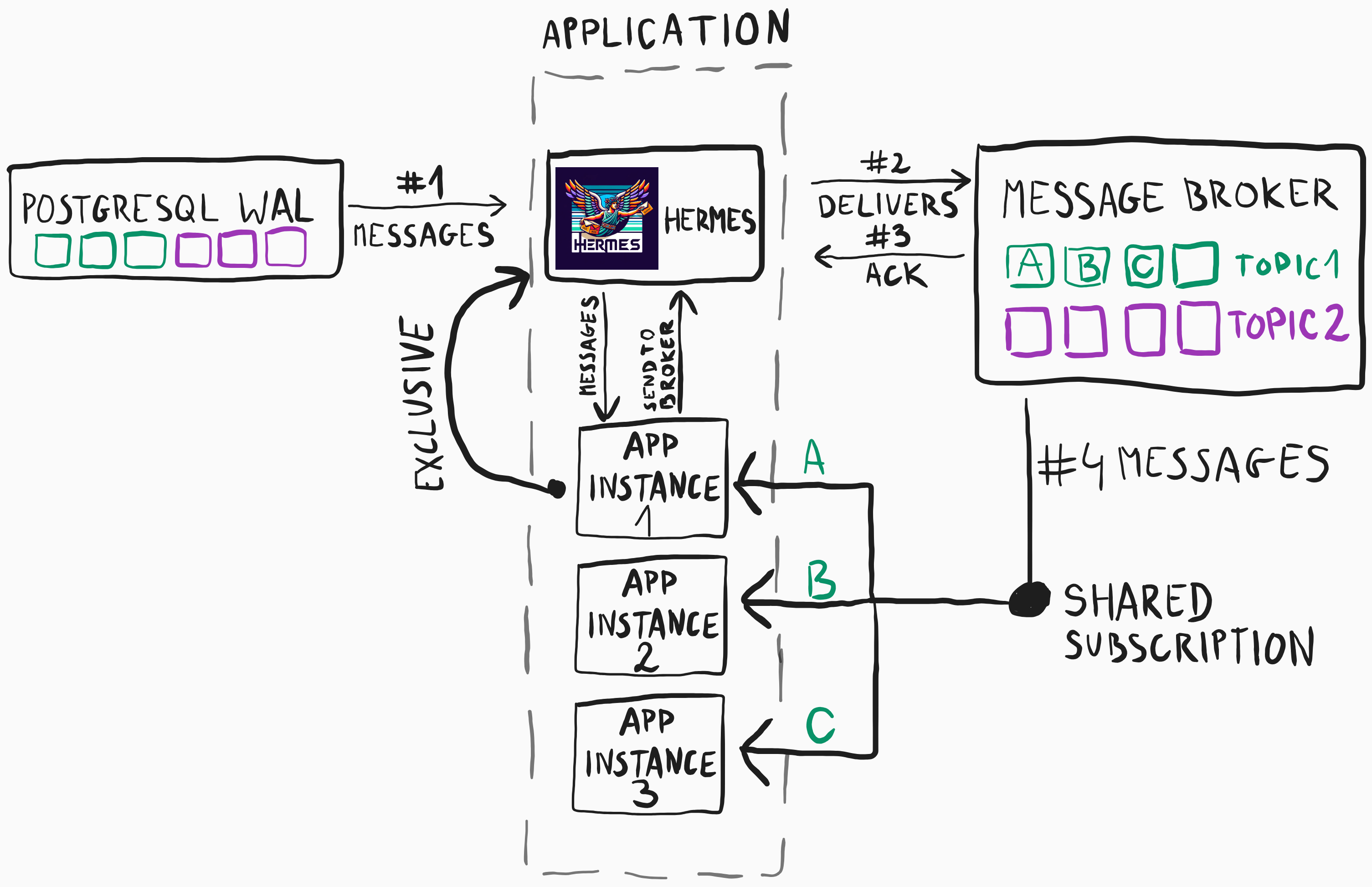

• Run multiple instances of your app and distribute the messages to them

Hermes PostgreSQL keeps one instance of your app exclusively and all messages from Logical Replication go to that instance.

If you want to run multiple instances of the app, you'd probably also wish to distribute messages evenly evenly. If so, you must utilize a message broker's feature to create a shared subscription.
