rn-voice-call

React Native Voice Call

Package to receive voice calls in React Native using Zoom Video SDK and Agora React Native SDK.

Installation

Install rn-voice-call:

npm install rn-voice-call

Go to your ios folder and run:

pod install

A) Zoom Integration

Download Zoom Video SDK

1- Create a Zoom Account.

2- Login to Zoom Developer Platform and then click Build App.

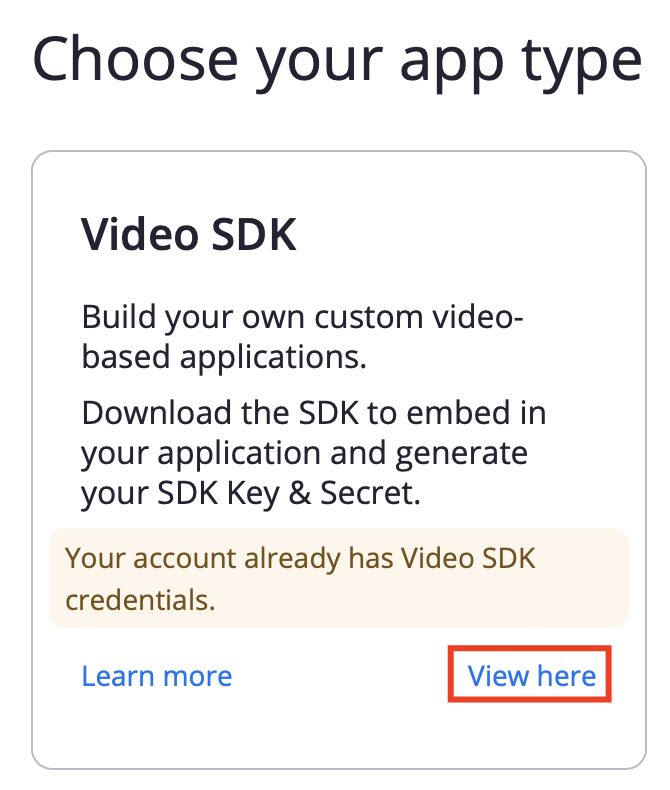

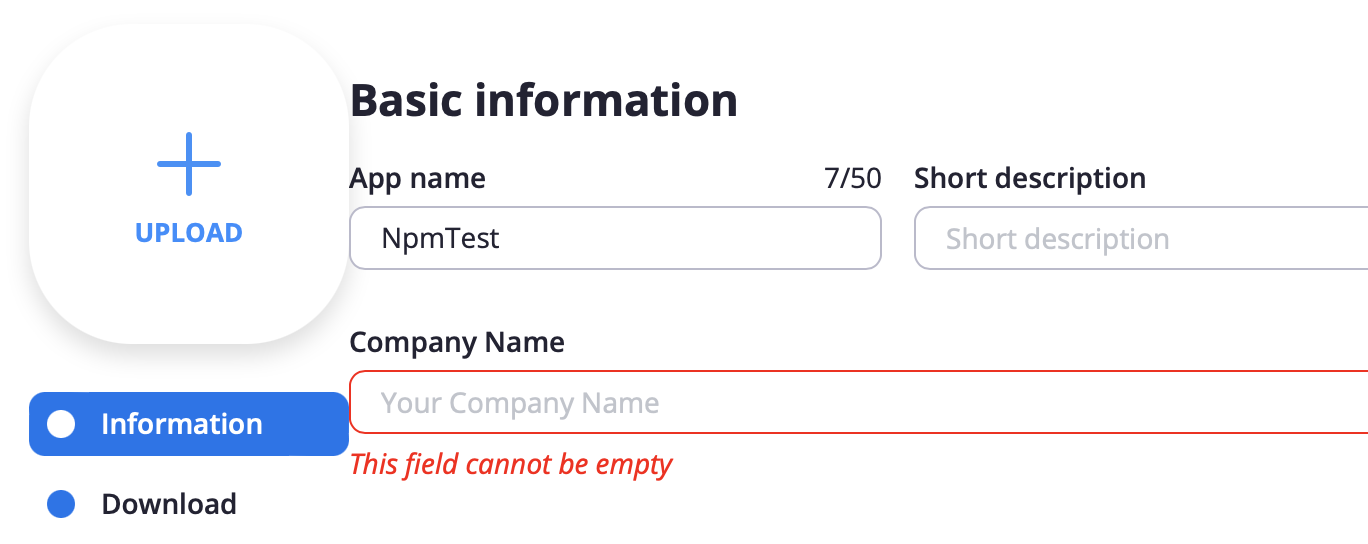

3- Click "View Here" on the page that opens and enter the company name in the information tab.

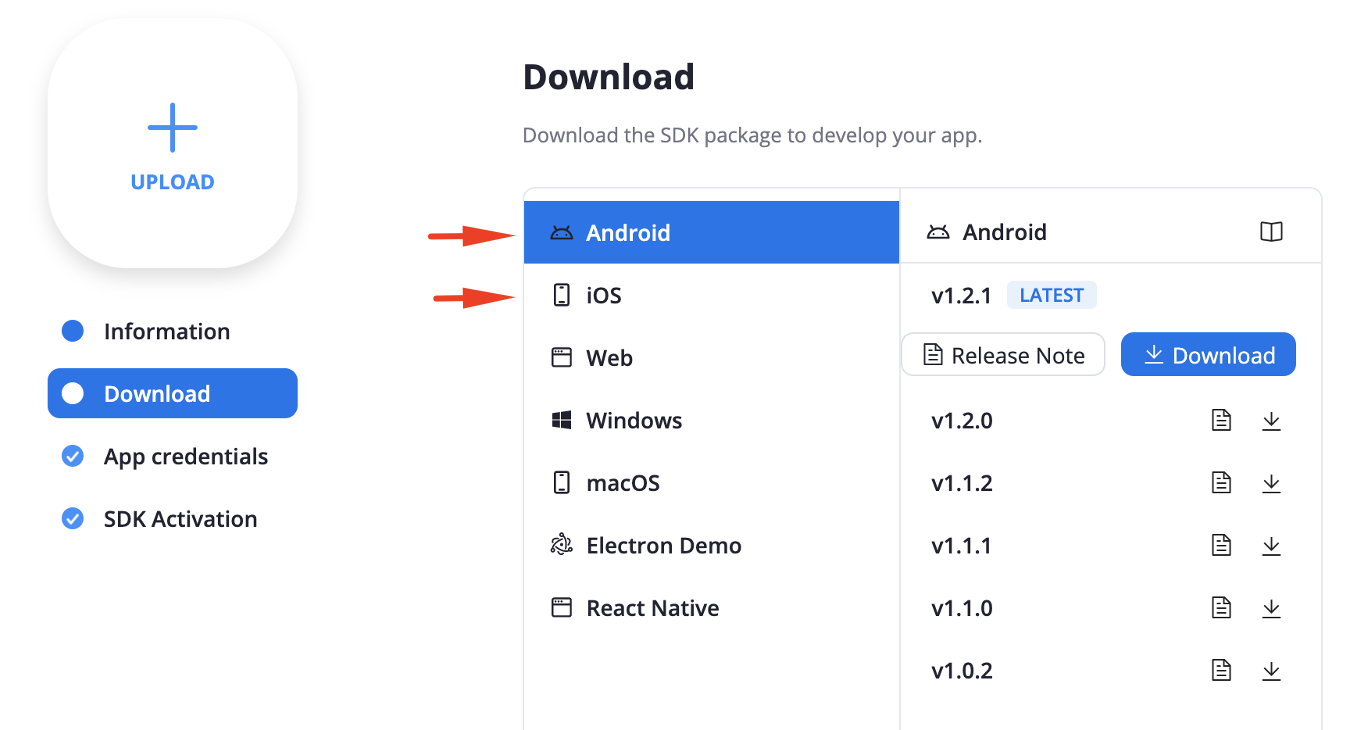

4- Download Android and iOS SDK packages in the download tab. These will be used to integrate the SDK into the application.

Zoom SDK Integration

Install the React Native Video SDK in your project.

npm install @zoom/react-native-videosdk

Go to your ios folder and run:

pod install

After package installation, the app will give an error. Since the React Native package is a wrapper, you must then add the iOS and/or Android Video SDK to your project so the wrapper can access it.

Android

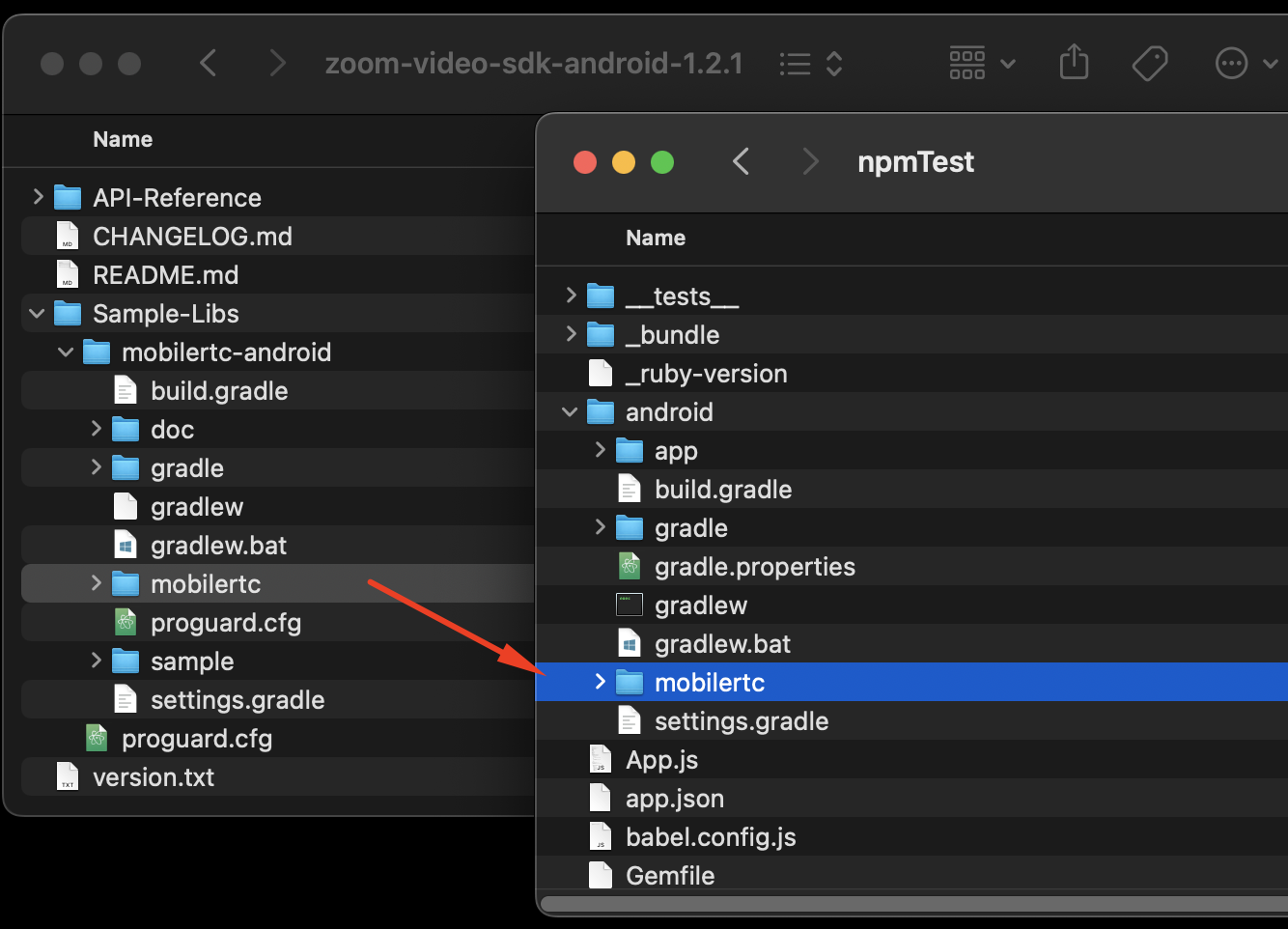

1- Copy the mobilertc folder in the Sample&Libs/mobilertc-android/ directory of the downloaded library to the android folder in your project.

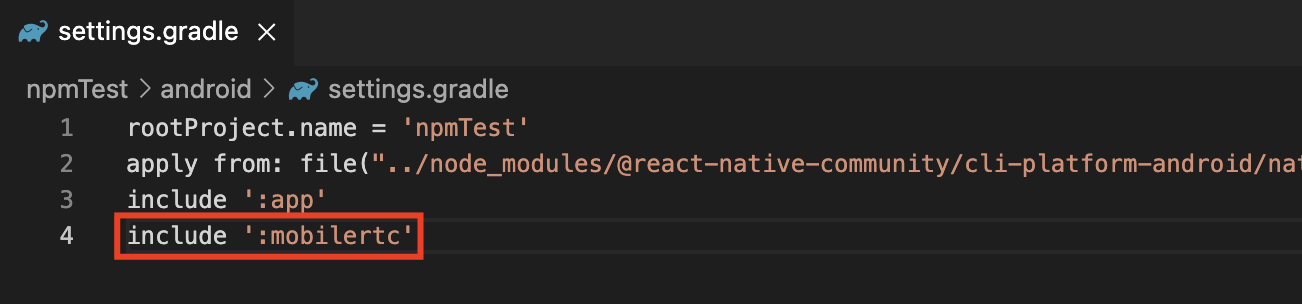

2- Open android/settings.gradle and include mobilertc in the project.

3- In android/app/build.gradle add mobilertc as a dependency for the project.

dependencies {
    // Add these
    implementation 'androidx.security:security-crypto:1.1.0-alpha02'
    implementation 'com.google.crypto.tink:tink-android:1.5.0'
    implementation 'androidx.appcompat:appcompat:1.0.0'
    implementation 'androidx.constraintlayout:constraintlayout:1.1.3'
    implementation 'androidx.recyclerview:recyclerview:1.0.0'
    implementation 'androidx.legacy:legacy-support-v4:1.0.0'
    implementation 'com.github.chrisbanes:PhotoView:2.3.0'
    implementation project(':mobilertc')
    ...
}

4- Add the following to the android section of android/app/build.gradle.

android {
    // Add this
    packagingOptions {
         pickFirst '**/*.so'
     }
    ...
}

5- Add required permission to the android/app/src/main/AndroidManifest.xml

<uses-permission android:name="android.permission.RECORD_AUDIO" />

Android Troubleshooting

1- The Error Log: zoom_react-native-videosdk:compileDebugJavaWithJavac

Add the following to the node_modules/@zoom/react-native-videosdk/android/src/main/java/com/reactnativezoomvideosdk/RNZoomVideoSdkModule.java

// Import these
import us.zoom.sdk.ZoomVideoSDKPhoneFailedReason;
import us.zoom.sdk.ZoomVideoSDKPhoneStatus;

public class RNZoomVideoSdkModule extends ReactContextBaseJavaModule implements ZoomVideoSDKDelegate, LifecycleEventListener {

  // Add this
  @Override
  public void onInviteByPhoneStatus(ZoomVideoSDKPhoneStatus zoomVideoSDKPhoneStatus, ZoomVideoSDKPhoneFailedReason zoomVideoSDKPhoneFailedReason) {
  }
...
}

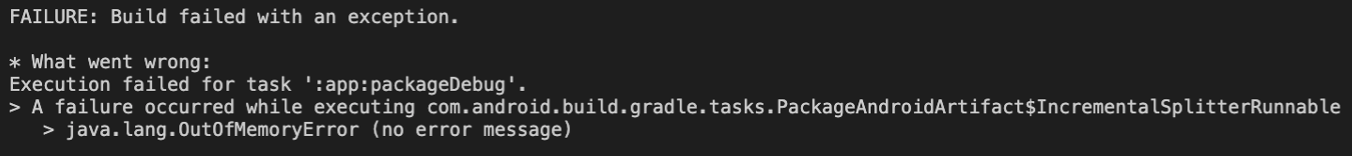

2- The Error Log: java.lang.OutOfMemoryError

Add the following to the android/gradle.properties.

org.gradle.jvmargs=-Xmx4096m -XX:MaxPermSize=4096m -XX:+HeapDumpOnOutOfMemoryError
org.gradle.daemon=true
org.gradle.parallel=true
org.gradle.configureondemand=true

iOS

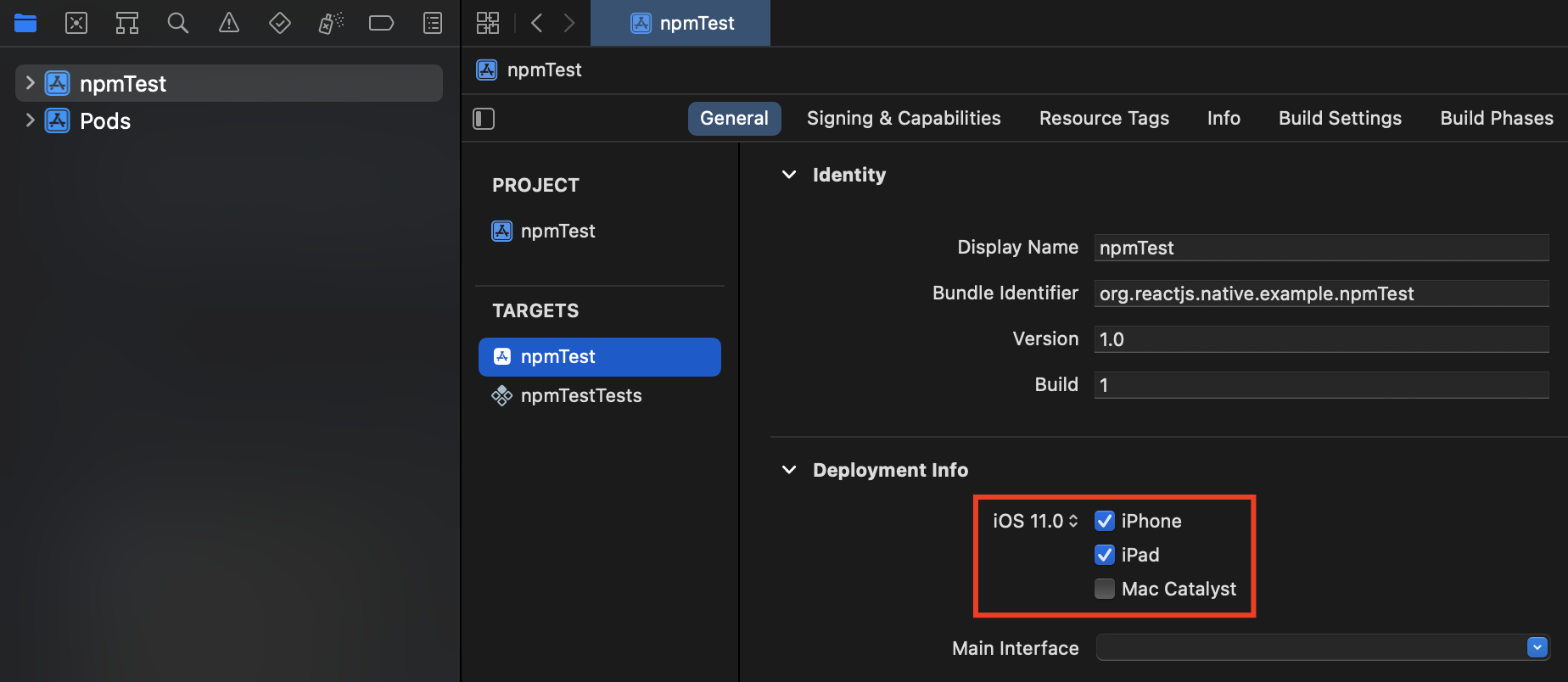

1- Open your project in Xcode and select the current target. Set iOS deployment target to iOS 8.0 or later.

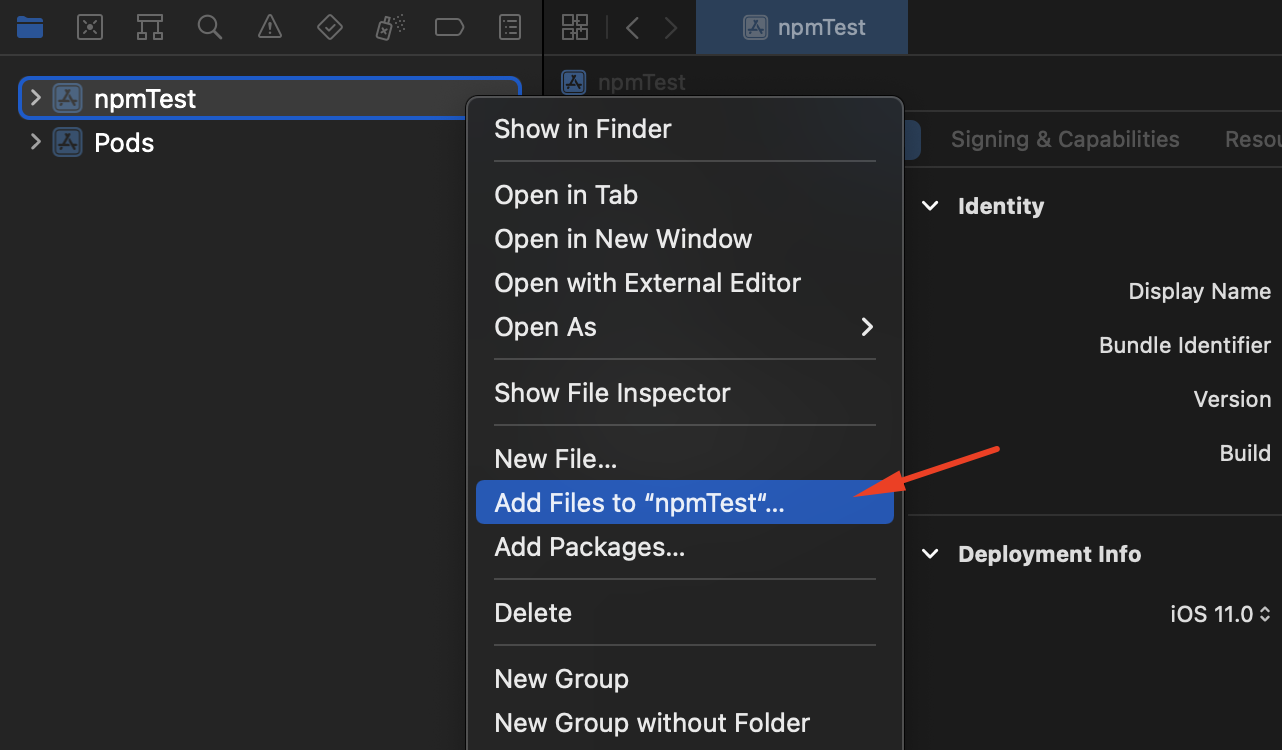

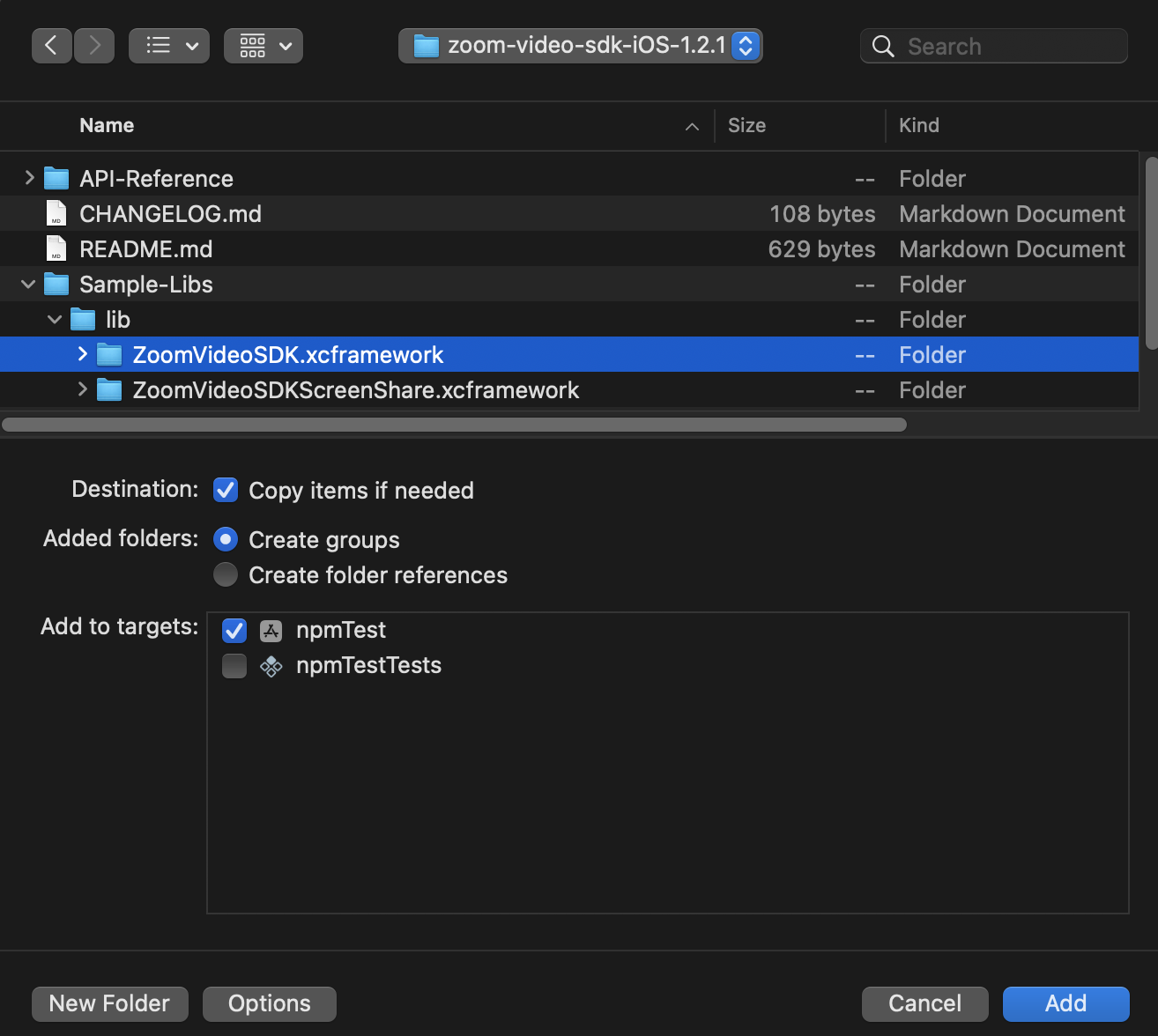

2- Copy the ZoomVideoSDK.xcframework in the Sample&Libs/libs directory of the downloaded library into your Xcode project folder.

3- Include the iOS Video SDK in the project by clicking the + button under the Embedded Binaries.

4- Add required permission to the Info.plist

<key>NSMicrophoneUsageDescription</key>
<string></string>

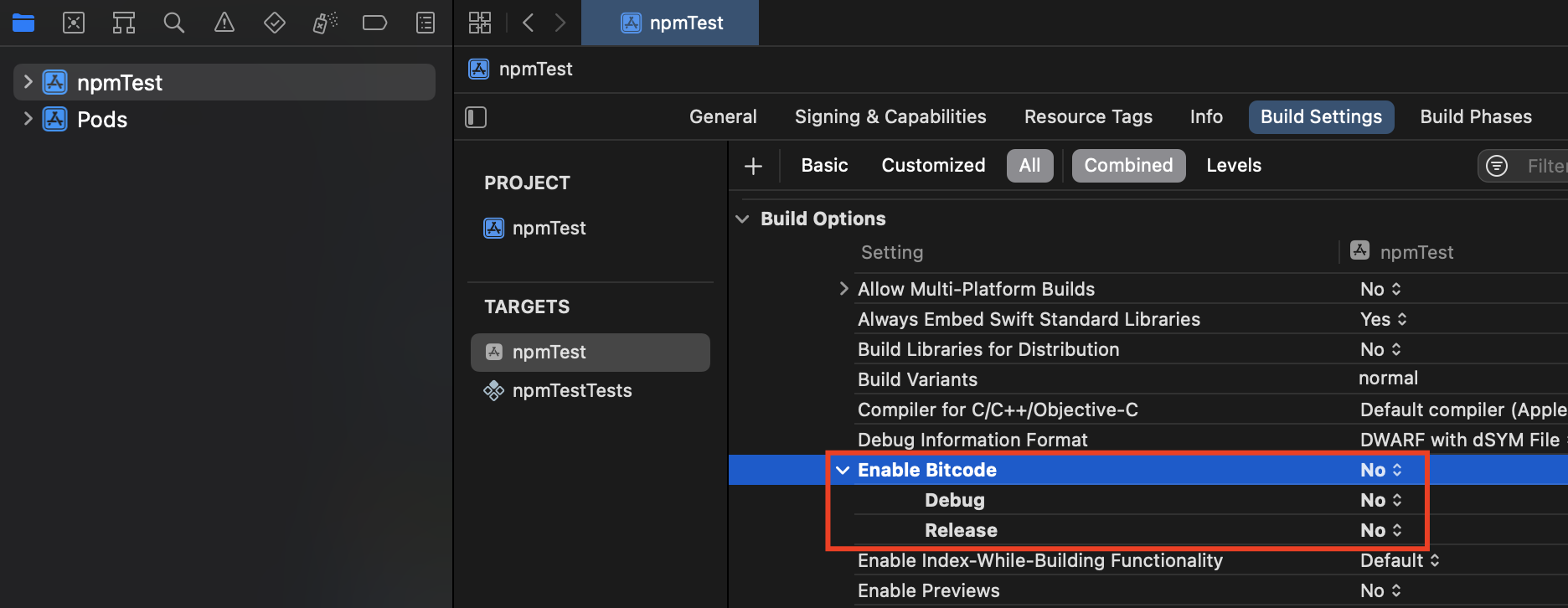

5- Set "Enable Bitcode" in Build Settings > Build Options to No

For more information: Zoom.us

B) Agora Integration

In your React Native project, install the Agora React Native SDK.

npm install react-native-agora

Go to your ios folder and run:

pod install

The Agora React Native SDK uses Swift in native modules, and therefore your project must support compiling Swift. Otherwise, you will get errors when building the iOS app.

1- Open the project with Xcode.

cd ios
open ProjectName.xcworkspace

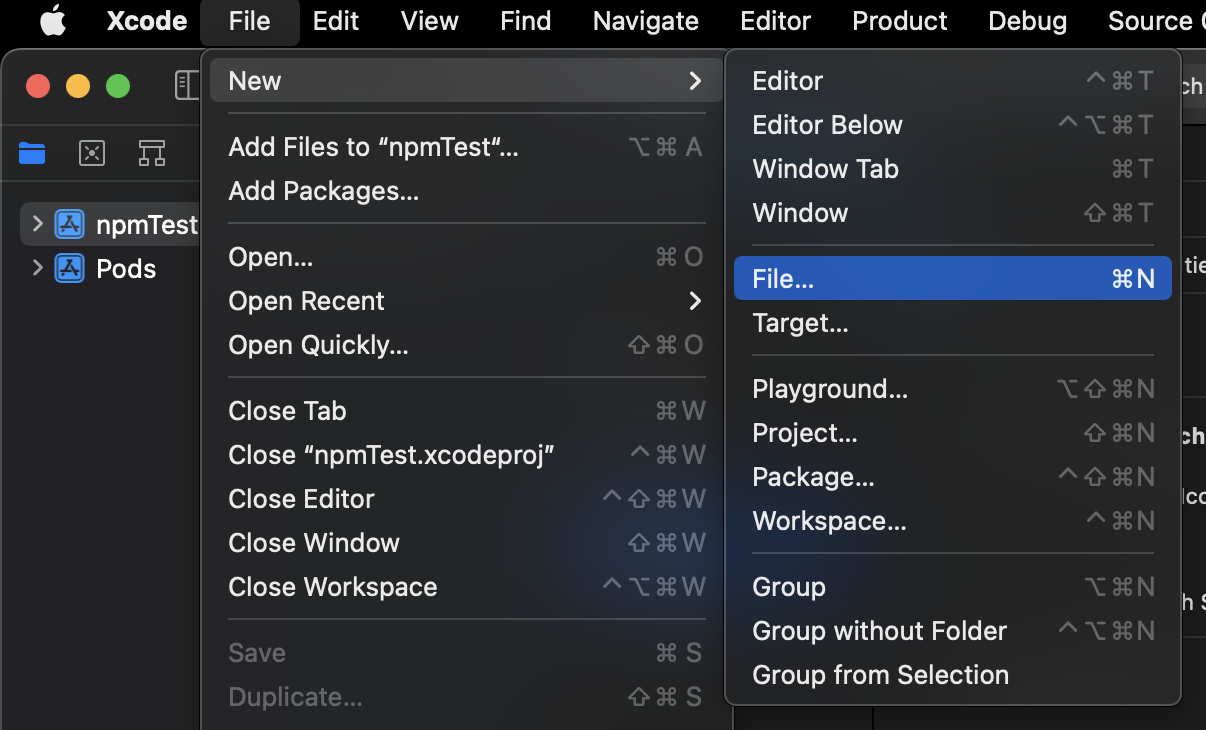

2- Click File > New > File.

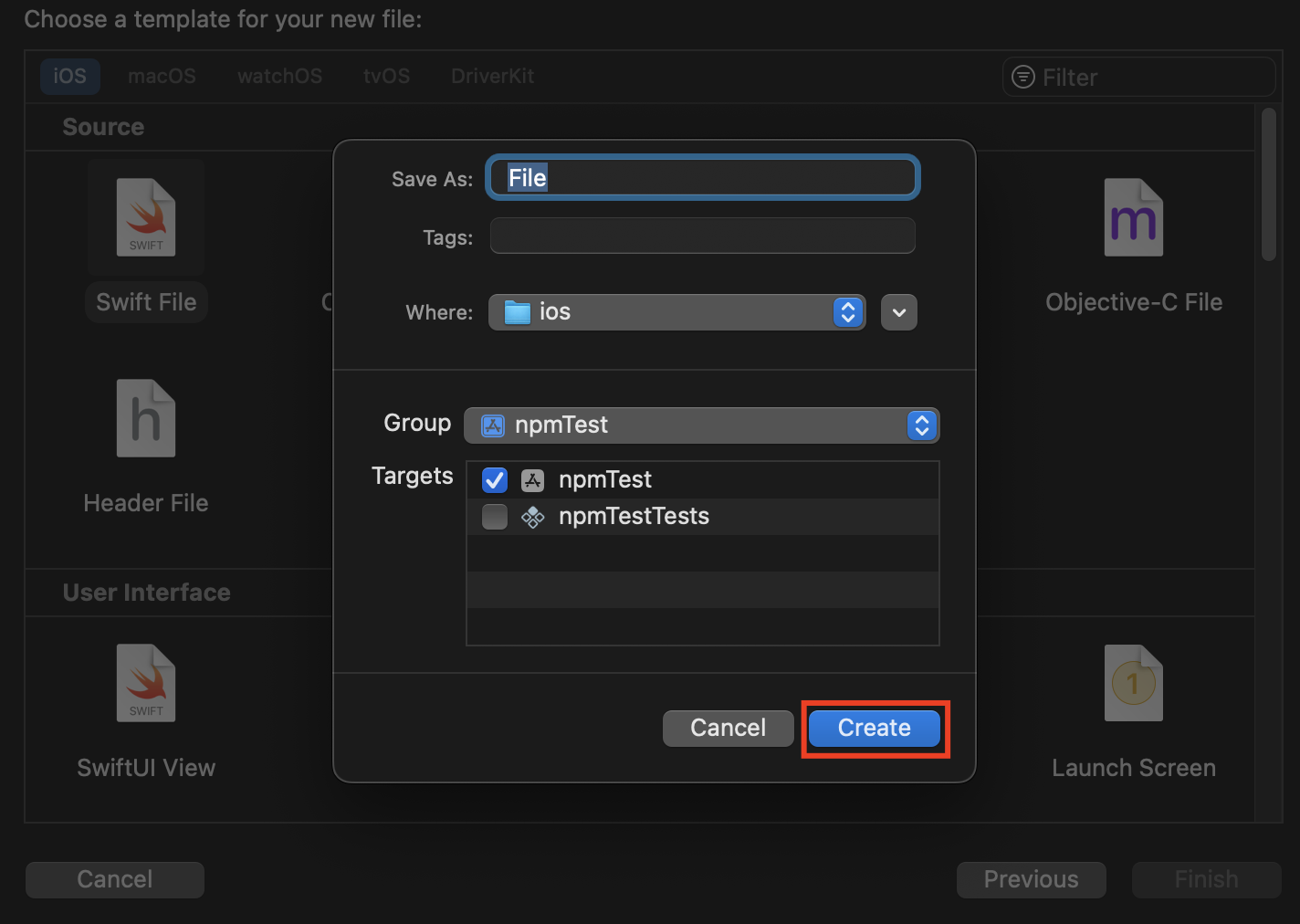

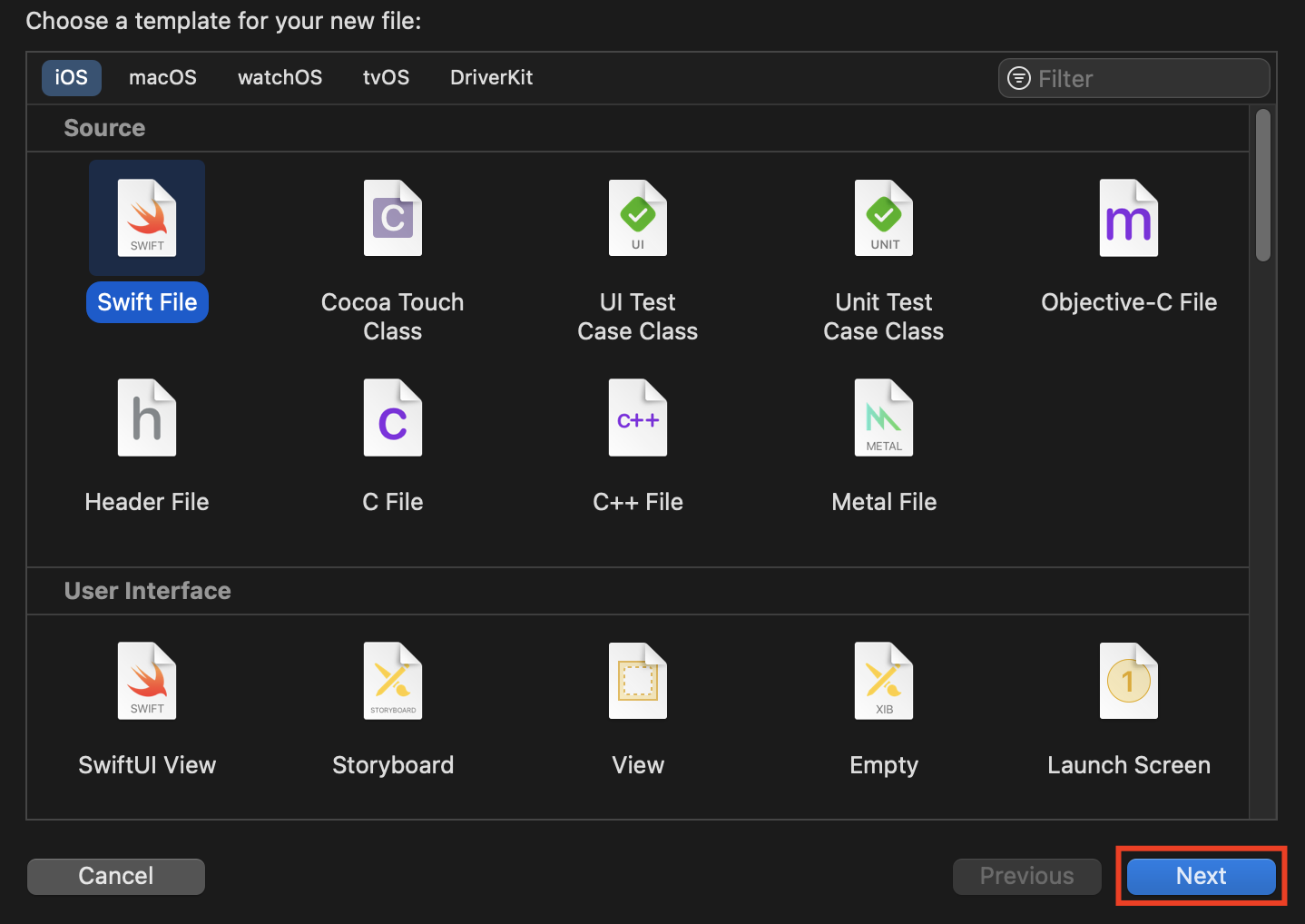

Select iOS > Swift File, and then click Next > Create to create a new File.swift file.

For more information: Agora.io

Usage

Note: Don't forget to ask for microphone permission at runtime before the call starts. You can use the react-native-permissions package for this. In addition, the application must have navigation installed.

1- For Zoom SDK wrap your application with ZoomVideoSdkProvider and set the required configuration properties. You don't need to do anything for Agora.

2- Import the VoiceCall and navigationRef from the package to the main navigation. Add VoiceCall as a component to the navigator and add navigationRef as a ref to the NavigationContainer.

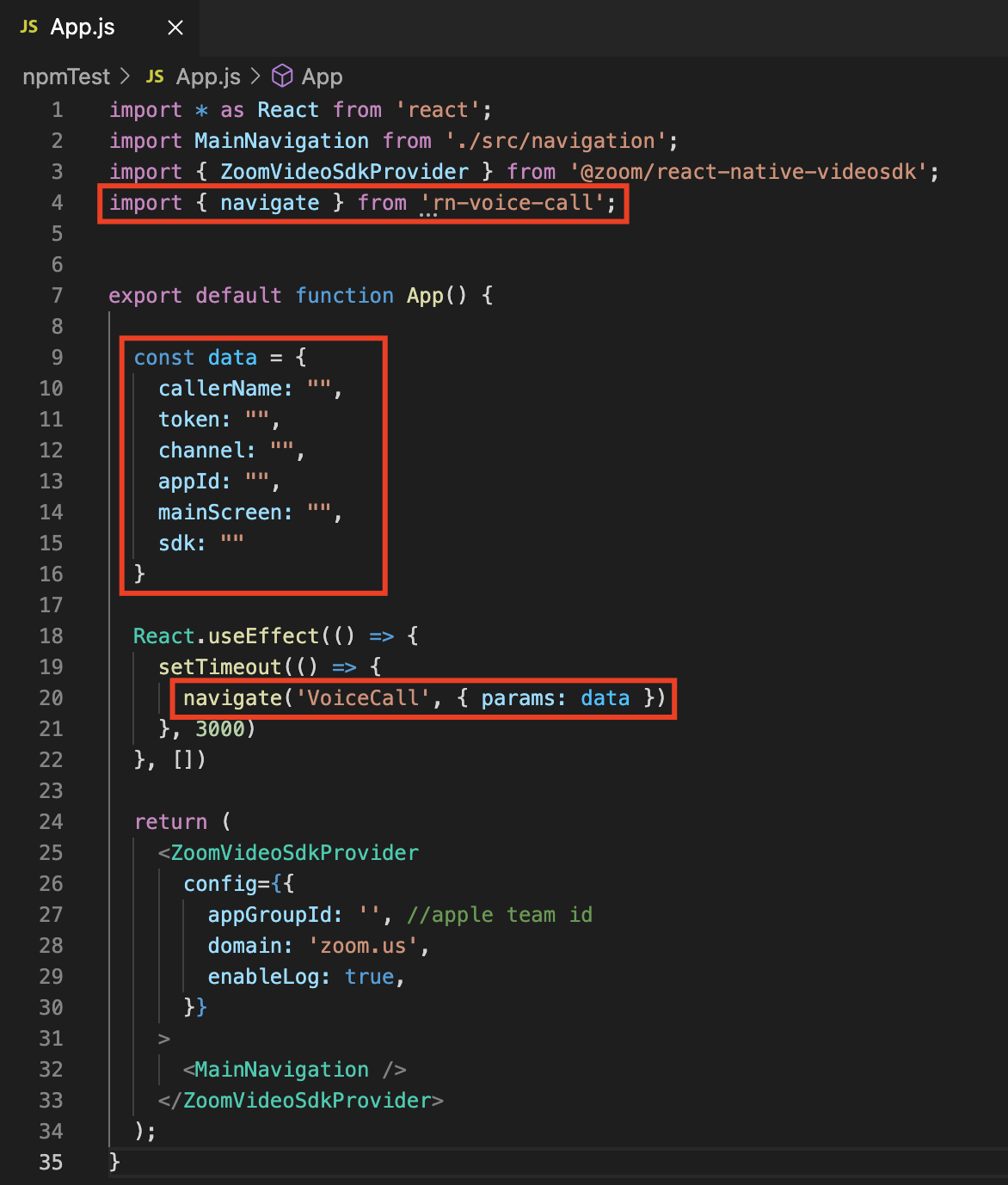

3- You can receive Zoom or Agora calls from any screen. Specify a screen and import the navigate from the package and get the necessary parameters for Zoom or Agora with a notification on that screen. Send the parameters to the VoiceCall component with the params key.

Send the following parameters for Agora or Zoom to your application with a notification:

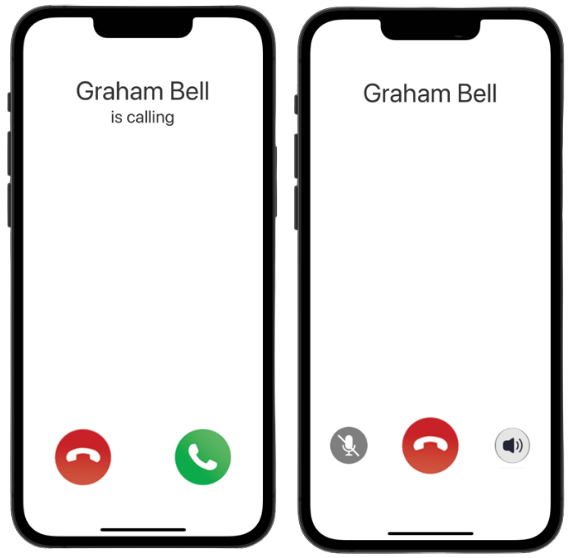

callerName: The name that will appear on the screen when the call starts.

token: Token generated by the initiator of the Zoom Meeting or Agora Token.

channel: Zoom session name specified by the Zoom Meeting initiator, or Agora channel name specified when generating the Agora token.

appId: Agora App ID. Can be blank if this is a Zoom call.

mainScreen: Any screen name in the navigation to return to after completing the call.

sdk: This has to be "zoom" if it's a Zoom call and "agora" if it's an Agora call.

Testing the package

You can use ZoomHost and AgoraCall apps to test your app. With both applications, you can initiate a call and get the necessary parameters for the package.
