    Rhodonite

    Rhodonite

    Rhodonite is a WebGL library written in TypeScript.

    npm license

    Feature

    • Entity Component System
    • Blittable Memory Architecture (Original GPU data storage system with floating point texture)

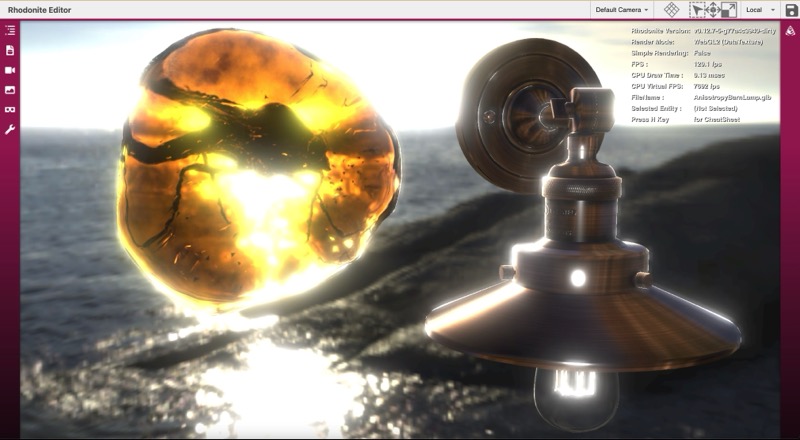

    • Physically based Rendering with Image Based Lighting
    • Support loading the following 3D model files: glTF2, glTF1, VRM
    • Support Draco compression, Basis Universal and KTX2, etc

    What's the "Blittable Memory Architecture"

    With the Blittable Memory Architecture, Rhodonite stores almost all of its data in a large pre-allocated ArrayBuffer. Data storage for matrix or vector classes in Rhodonite's component classes and materials are assigned from the memory pool, which means most of the data are on that memory pool, transferred to the GPU every frame as a floating-point texture. This architecture allows all shaders always to access a vast amount of data.

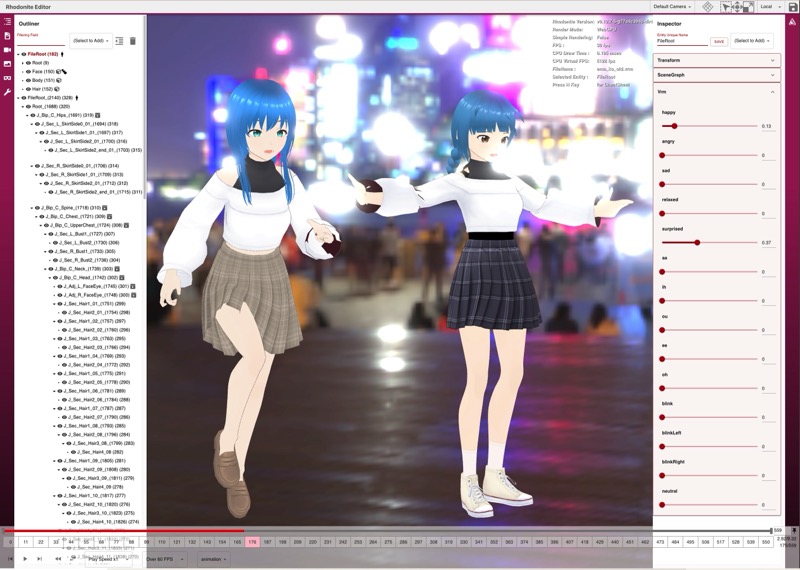

    For example, Rhodonite can handle and blend all morph targets (38 targets) of VRM characters simultaneously in the shader.

    Viewer

    You can try our library via https://editor.librn.com/ . This viewer supports glTF/VRM files Drag & Drop to display. (Drag & Drop all files if glTF data is consists of multiple files.)

    poly

    Supported Browsers

    Google Chrome, Firefox, Safari, Microsoft Edge (chromium-based), and other modern browsers are supported. IE11 is not supported.

    Install

    You can install the esm version of Rhodonite easily.

    $ yarn add rhodonite

    You can install yarn as following,

    $ npm install -g yarn

    You can use npm of course, but we recommend yarn because we use it usually.

    $ npm install rhodonite

    Note

    If you get an error like "webxr-input-profiles not found" when building a project using Rhodonite, Try "npm install" or "yarn install again.

    Coding with Rhodonite

    In JavaScript

    <body>
      <canvas id="world"></canvas>
      <script src="../../../dist/umd/rhodonite.min.js"></script>
      <script>
      async function load() {
        // All Rhodonite classes you need are in window.Rn object.
        await Rn.System.init({
          approach: Rn.ProcessApproach.UniformWebGL2,
          canvas: document.getElementById('world')
        });
        const entityRepository = Rn.EntityRepository.getInstance();
        ...
        (After that, please refer to the sample codes.)
        ...
      }
      </script>
    </body>

    In TypeScript

    There are three package versions of Rhodonite: CommmonJS, ESModule and UMD.

    Using CommonJS package

    You need a bundler (e.g. Webpack) to import the Rhodonite CommonJS package.

    import Rn from 'rhodonite';

    async function load() {
      await Rn.System.init({
        approach: Rn.ProcessApproach.UniformWebGL2,
        canvas: document.getElementById('world') as HTMLCanvasElement
      });

      // Camera
      const cameraEntity = Rn.EntityHelper.createCameraControllerEntity();
      const cameraComponent: Rn.CameraComponent = cameraEntity.getCamera();

      ...
      (After that, please refer to the sample codes.)
      ...
    }

    Using ESModule package

    You don't need any bundler.

    <script type="module" src="main.js">
    // main.ts
    import Rn from 'rhodonite/dist/esm/index.mjs';

    async function load() {
      await Rn.System.init({
        approach: Rn.ProcessApproach.UniformWebGL2,
        canvas: document.getElementById('world') as HTMLCanvasElement
      });

      // Camera
      const cameraEntity = Rn.EntityHelper.createCameraControllerEntity();
      const cameraComponent: Rn.CameraComponent = cameraEntity.getCamera();

      ...
      (After that, please refer to the sample codes.)
      ...
    }
    // tsconfig.json
    {
      ...
      "compilerOptions": {
        "module": "ESNext",
        ...
      }
      ...
    }


    Using UMD package

    See the last part of https://github.com/actnwit/RhodoniteTS/wiki/Install .

    Building Rhodonite

    Prerequisites

    • Node.js 14.15.5 or later

    Setup Project

    $ yarn install

    You can use yarn instead.

    Build command for Rhodonite library

    $ yarn build

    Build command for samples

    $ yarn build-samples

    Try Samples

    After building Rhodonite, try:

    $ yarn watch-samples

    Then, access http://localhost:8082/ with your web browser. When you are finished, press ctrl + c.

    Build command for API documents

    $ yarn doc

    Testing Rhodonite

    $ yarn test

    You can execute a part of tests like this.

    For unit test

    $ yarn test-unit-part -- ./src/foundation/core
    $ yarn test-unit-part -- ./src/foundation/core/Entity.test.ts

    For E2E (visual) test

    $ yarn test-e2e-part -- ./samples/test_e2e/FastestInstancedDrawingWebGL1

    For M1 Mac in E2E test

    If you have trouble with the E2E test in your M1 Mac, Try to install Chromium.

    $ brew install chromium

    Then try these environment variables.

    export PUPPETEER_SKIP_CHROMIUM_DOWNLOAD=true
    export PUPPETEER_EXECUTABLE_PATH=`which chromium`


    See https://stackoverflow.com/questions/65928783/puppeteer5-5-0-install-node-install-js-on-m1 for more detail.

    And you can try to uncomment the "executablePath" line.

    // config/test/jest-puppeteer.config.js
    module.exports = {

      ...

      launch: {
        headless: true,
        devtools: false,
        // executablePath: "/Applications/Chromium.app/Contents/MacOS/Chromium", // Try to uncomment this line if you got error in M1 Mac

        args: ["--start-maximized", "--no-sandbox", "--disable-gpu"],
      },
    };

    Development using VSCode devcontainer

    This project supports the VSCode devcontainer for any docker-installed OS.

    Input the following command in the VSCode command palette.

    > Remote-Containers: Reopen in Container

    After a new dev container window opens, You can work in the Debian Linux container environment. All dependencies (node, npm, yarn, typescript, chromium, and all packages for Rhodonite) are already set up.

    Debugging inside VSCode (Step execution in VSCode Debug tab)

    1. Install the "Debugger for Chrome" VSCode Extension.
    2. Start the local server with $ yarn start.
    3. Push the run icon by choosing "Launch Chrome to debug Rhodonite samples" in the RUN tab of VSCode's left pane to start debugging.

    If you use the VSCode devcontainer environment, You should open the another RhodoniteTS VSCode window locally and do debug ops on it instead of the devcontainer VSCode window.

    License

    MIT License

    Acknowledgements

    Libraries & Tools

    Our library uses the following libraries and tools and more. Thank you.

    Check the complete list on package.json.
