    Relational Tags

    See original dev.to post for initial theory and motivation.

    This repository contains implementations of relational tags organization in various languages.

    Installation

    Python

    Available at test.pypi.org as an installable package.

    pip install -i https://test.pypi.org/simple relational-tags-owengall


    Javascript

    Available at npmjs.com as an installable package.

    npm install relational_tags


    Showcase

    A screen recording of examples/python/rt_webapp

    examples/python/rt_webapp

    Generated Documentation

    Python

    Generate docs at docs/pdocs/ using the src/python/pdocs.sh script, or something similar.

    Javascript

    Generate docs at docs/jsdocs/ using the src/javascript/jsdocs.sh script, or something similar.

    Usage

    The API aims to be as consistent across languages as possible. Below are scripts that generate equivalent relational tagging systems in each language. For more examples, see code samples in examples/ and test cases in tests/ (though be aware that the tests often circumvent the public API and use hidden members, or don't take advantage of things that were added to the library later).

    import relational_tags as rt
    from relational_tags import RelationalTagConnection

    # initial planned tags hierarchy
    rt.load(
        {
            'color': ['red', 'orange', 'yellow', 'green', 'blue'],
            'fruit': ['apple', 'banana', 'cherry', 'orange']
        },
        RelationalTagConnection.TYPE_TO_TAG_CHILD
    )

    # create some things

    class Thing:
        def __init__(self, name: str):
            self.name = name
    # end Thing

    glove = Thing('glove')
    ball = Thing('ball')

    # tag them

    rt.connect(rt.get('red'), glove)

    rt.get('orange').connect_to(ball)

    print(glove in rt.get('red').connections)
    # True; RelationalTag.connections is a Dict where each key is a target

    # use graph distance to measure likeness

    print(rt.graph_distance(rt.get('orange'), ball))
    # 1    # orange-ball

    print(rt.graph_distance(rt.get('color'), ball))
    # 2    # color-orange-ball

    print(rt.graph_distance(rt.get('fruit'), ball))
    # 2    # fruit-orange-ball

    print(rt.graph_distance(glove, ball))
    # 4    # glove-red-color-orange-ball

    # use search to find entities by tag
    rt.search_entities_by_tag('orange')
    # [ball]
    rt.search_entities_by_tag('color')
    # [glove, ball]
    rt.search_entities_by_tag('fruit')
    # [ball]

    # TODO use search to find tags of entity

    # TODO save and load via json
    const rt = require('relational_tags')
    const RelationalTagConnection = rt.RelationalTagConnection

    // initial planned tags hierarchy
    rt.load(
        {
            color: ['red', 'orange', 'yellow', 'green', 'blue'],
            fruit: ['apple', 'banana', 'cherry', 'orange']
        },
        RelationalTagConnection.TYPE_TO_TAG_CHILD
    )

    // create some things

    class Thing {
        constructor(name) {
            this.name = name
        }
    }

    glove = new Thing('glove')
    ball = new Thing('ball')

    // tag them

    rt.connect(rt.get('red'), glove)

    rt.get('orange').connect_to(ball)

    console.log(rt.get('red').connections.has(glove))
    // true; RelationalTag.connections is a Map where each key is a target

    // use graph distance to measure likeness

    console.log(rt.graph_distance(rt.get('orange'), ball))
    // 1    # orange-ball

    console.log(rt.graph_distance(rt.get('color'), ball))
    // 2    # color-orange-ball

    console.log(rt.graph_distance(rt.get('fruit'), ball))
    // 2    # fruit-orange-ball

    console.log(rt.graph_distance(glove, ball))
    // 4    # glove-red-color-orange-ball

    // use search to find entities by tag
    rt.search_entities_by_tag('orange')
    // [ball]
    rt.search_entities_by_tag('color')
    // [glove, ball]
    rt.search_entities_by_tag('fruit')
    // [ball]

    // use search to find tags of entity
    rt.search_tags_of_entity(ball)              // all transitively connected tags to ball
    // [orange, color, fruit]
    rt.search_tags_of_entity(glove, 'color', 'TO_TAG_PARENT', true)    // what color is glove?
    // {color => [orange, color]}
    rt.search_tags_of_entity(ball, /.*or.*/)    // ball tags containing or
    // [orange, color]

    // save and load via json
    let json = rt.save_json()
    rt.clear()
    rt.load_json(json)

    Theory

    Let's combine the best of two disparate organizational systems: tree hierarchy, and tags.

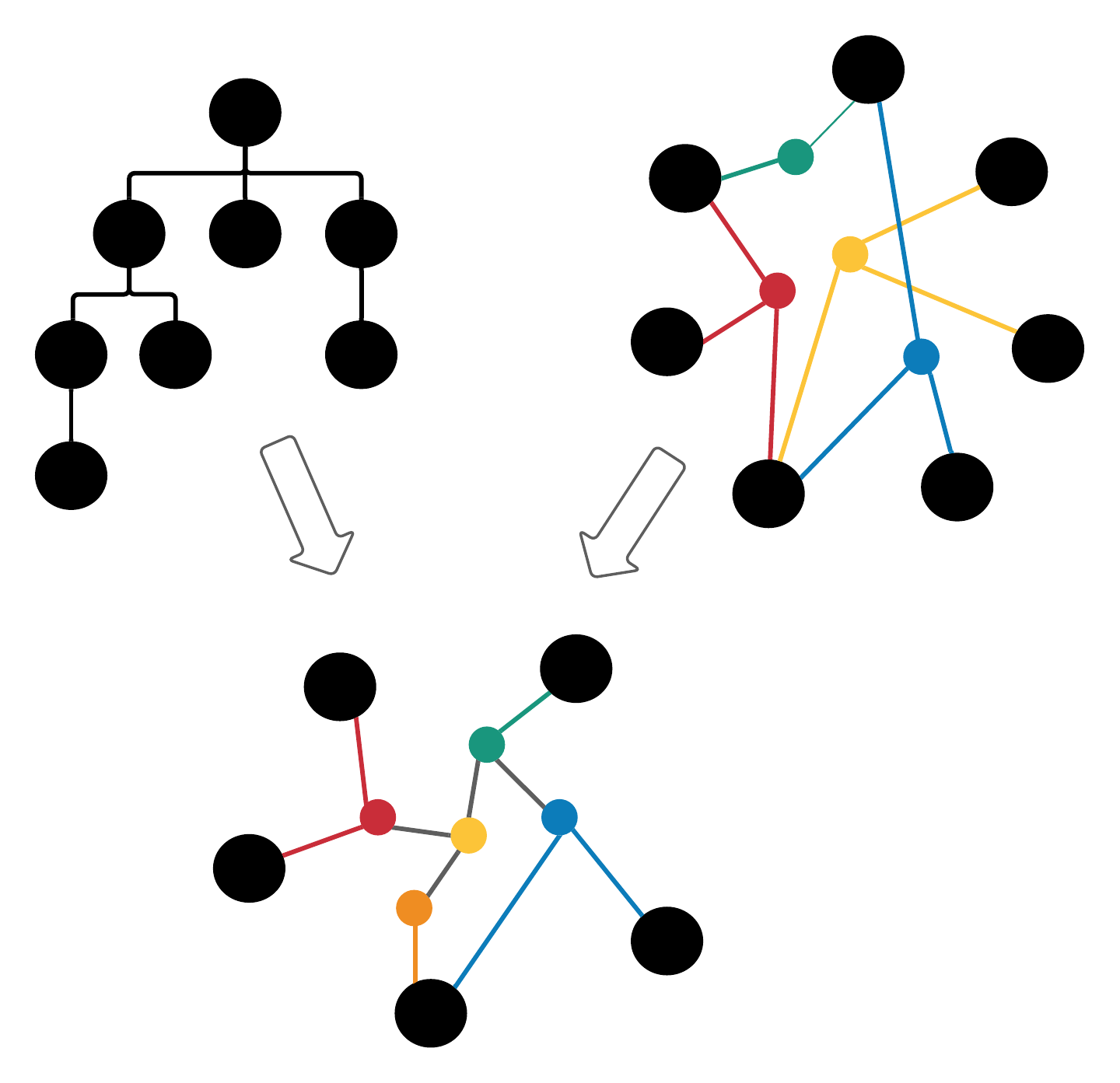

    tree hierarchy graph

    • tree
      • Very intuitive for grouping, and maintaining a spatial metaphor (ex. file system with folders, geolocation with quadrants).
      • Memorable relationships between entities, permitting easy search by incrementing specificity (users > myself > images > cats > fat_cat.png).
    • tags
      • More improvised/ad hoc approach, where organization evolves organically without knowing what is more or less specific.
      • Less rigid classification than the hierarchy tree, with loose relationships.

    Relational tags would have the flexibility of tags, with an additional layer of association by defining relationships between tags. I wonder if something like this concept is used in applications like knowledge graphs and mapping natural languages.

    For example, I’ll organize the following entities according to the three systems. Note there are certainly many ways to do so:

    apple, banana, cat, dandelion, grass,
    mouse, school bus, strawberry, Rudolph


    Tree example

    - alive
    	- plant
    	    - yellow
    			- banana
    			- dandelion
    		- red
    			- apple
    			- strawberry
    		- green
    			- grass
    	- animal
    		- cat
    		- mouse
    		- Rudolph
    - inanimate
    	- school bus


    Note, for example, that I didn’t put school bus in yellow because it’s only allowed to have one parent node. A filesystem typically gets around this with aliases/symbolic links/shortcuts/etc.

    Tags example

    - apple - fruit, plant, alive, red, sweet
    - banana - fruit, plant, alive, yellow, sweet
    - cat - animal, alive, mammal, carnivore
    - dandelion - plant, alive, yellow, flower, bitter
    - grass - plant, alive, green, bitter
    - mouse - animal, alive, mammal, herbivore
    - school bus - inanimate, yellow
    - strawberry - red, plant, red, sweet, alive
    - Rudolph - alive, animal, red, fiction, herbivore, mammal


    Note here that adding new entities to this system becomes tedious, and entity-tag assignments are easily forgotten.

    Relational tags example

    Tag relationships

    These could be directed or not; I’m not sure which is more useful.

    alive --> animal, plant, animate
    inanimate
    color --> red, yellow, green
    animal --> mammal, carnivore, herbivore
    plant --> fruit, vegetable, flower
    fruit --> sweet
    flavor --> sweet, bitter
    existence --> reality, fiction


    Entity-tag assignments

    Apple - plant, fruit, red
    Banana - fruit, yellow
    Cat - mammal, carnivore
    Dandelion - flower
    Grass - plant
    Mouse - mammal
    School bus - yellow, inanimate
    Strawberry - fruit, red
    Rudolph - animal, fictional


    Hooray! Now, an entity can belong to any number of tags, and tags have relationships with each other, so I don’t need to remember to add alive and plant to all of my fruit entities.

    If I change my mind about the tag relationships, I can easily redefine them.

    If I want to search for entities, I can search by tags and the tag relationships will pull in entities assigned to related tags as well.
