    node-red-contrib-boolean-logic-ultimate

    Sample Node

    NPM version NPM downloads per month NPM downloads total MIT License JavaScript Style Guide Donate via PayPal Facebook

    A set of Node-RED enhanced boolean logic, with persisten values after reboot and more.

    Wellcome! First of all thank you for your interest in my nodes. This is a set of logic nodes, to overcome the simplicity of the default node-red boolean logic nodes. Hope you enjoy that and if you're in trouble, please ask!

    CHANGELOG

    BOOLEAN LOGIC

    CLICK HERE, copy and paste it into your flow [{"id":"1a90a718.5c0409","type":"BooleanLogicUltimate","z":"adb2ee5c.0bf6e","name":"","filtertrue":"both","persist":true,"sInitializeWith":"WaitForPayload","triggertopic":"trigger","outputtriggeredby":"all","inputCount":2,"topic":"result","x":380,"y":160,"wires":[["5f9fbfcc.d2c34"],[],[]]},{"id":"81ef6fec.5d413","type":"inject","z":"adb2ee5c.0bf6e","name":"Night","topic":"Dark","payload":"true","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":170,"y":180,"wires":[["1a90a718.5c0409"]]},{"id":"e0d5d620.966478","type":"inject","z":"adb2ee5c.0bf6e","name":"Daylight","topic":"Dark","payload":"false","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":160,"y":140,"wires":[["1a90a718.5c0409"]]},{"id":"1c2f8e73.2c22ba","type":"inject","z":"adb2ee5c.0bf6e","name":"Motion detect true","topic":"Motion","payload":"true","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":130,"y":240,"wires":[["1a90a718.5c0409"]]},{"id":"5f9fbfcc.d2c34","type":"debug","z":"adb2ee5c.0bf6e","name":"Garden Light","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"true","targetType":"full","x":580,"y":160,"wires":[]},{"id":"201baa3d.7c63ae","type":"inject","z":"adb2ee5c.0bf6e","name":"Motion detect false","topic":"Motion","payload":"false","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":130,"y":280,"wires":[["1a90a718.5c0409"]]},{"id":"b65f4ff4.bfe2c8","type":"comment","z":"adb2ee5c.0bf6e","name":"Motion sensor turns on lights, when it's dark. The light turns off itself at day","info":"","x":290,"y":100,"wires":[]}]

    CLICK HERE, copy and paste it into your flow [{"id":"53a10a7a.cf1894","type":"BooleanLogicUltimate","z":"a76c6a12.37379","name":"","filtertrue":"onlytrue","persist":true,"sInitializeWith":"true","triggertopic":"Pushbutton","outputtriggeredby":"onlyonetopic","inputCount":2,"topic":"result","x":340,"y":220,"wires":[["cd9244ea.471b78"],[],[]]},{"id":"9318320b.670af8","type":"inject","z":"a76c6a12.37379","name":"","topic":"Pushbutton","payload":"true","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":120,"y":220,"wires":[["53a10a7a.cf1894"]]},{"id":"20a981b9.552b4e","type":"inject","z":"a76c6a12.37379","name":"","topic":"IsNight","payload":"true","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":110,"y":320,"wires":[["53a10a7a.cf1894"]]},{"id":"da0dff55.d7888","type":"inject","z":"a76c6a12.37379","name":"","topic":"IsNight","payload":"false","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":110,"y":360,"wires":[["53a10a7a.cf1894"]]},{"id":"7129d101.1fb7d8","type":"comment","z":"a76c6a12.37379","name":"Pushbutton to switch on light stairs, only if it's night.","info":"","x":210,"y":180,"wires":[]},{"id":"cd9244ea.471b78","type":"debug","z":"a76c6a12.37379","name":"Temporized Stairs Lightbulb","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","x":580,"y":220,"wires":[]},{"id":"ad5a62a1.7ad81","type":"comment","z":"a76c6a12.37379","name":"Brightness sensor","info":"","x":110,"y":280,"wires":[]}]

    The node performs Boolean logic on the incoming payloads.
    The node expects a fixed number of topics (configured in the settings) on which it will operate. It will only output a value when it has seen the expected number of topics. If it ever sees more than the configured number of topics it will log a message then reset its state and start over.
    The input message is preserved and passed to the output pin, changing only the topic and the payload.

    The node performs some checks on the incoming boolean payloads and outputs all results at the same time, as follow:

    • Output "AND": true or false
    • Output "OR": true or false
    • Output "XOR": true or false

    If you need "NAND" or "NOR" gate, just put an InvertUltimate node respectively after the "AND" or "OR" pin.

    The node can have a persistent input: the input values are retained after a node-red reboot. That means, that if you reboot your node-red, you don't need to wait all inputs to arrive and initialize the node, before the node can output a payload.
    You can also set the default values of the topic inputs.

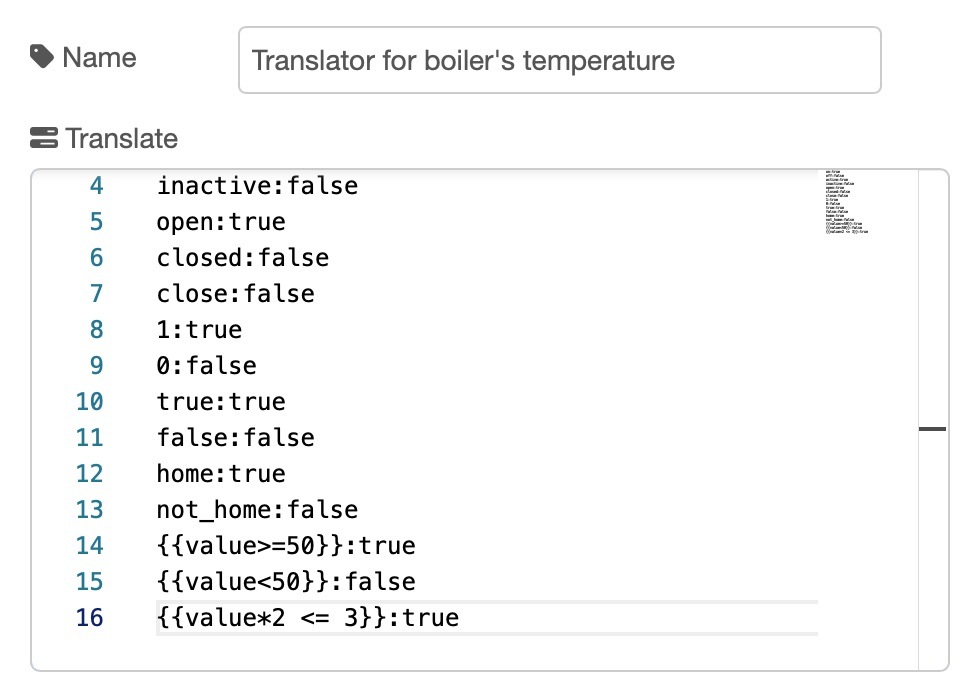

    The node can convert arbitrary input values to true/false. It supports Homeassistant "on" and "off" as well. For enabling auto conversion, please be sure to disable Reject non boolean (true/false) input values

    CONFIGURATION

    Inputs count

    Set the number of different topics to be evaluated. The node will output a message to the flow, after this number of different topics arrives.
    Remember: each input topic must be different. For example, if you set this field to 3, the node expects 3 different topics.

    Filter output result

    • Output both 'true' and 'false' results: Standard behaviour, the node will output true and false whenever it receives an input and calculate the boolean logics as output.
    • Output only 'true' results: whenever the node receives an input, it outputs a payload true only if the result of the logic is true. False results are filtered out.

    Trigger mode

    • All topics: standard behaviour, the node will evaluate each input topic and ouputs the values. At each input change, it will output a msg on the flow.
    • Single topic + eval other inputs: the node evaluates all the input topics, but only whenever it receives a msg input with the specified topic, it outputs a msg to the flow.

    If input states are undefined

    Every time you create a node or modify the node, all inputs are set to undefined. This means that the node will wait the arrive of all topics (for example 3 topics, if you've selected 3 topics in the option), before it can output a payload. This can be a problem if your logic must be operative as soon as you deploy the flow. To overcome this problem, you can "initialize" all the undefined inputs with True or False.

    • Leave undefined: Standard behaviour, the node will wait all the "undefined" topics to arrive, then starts a flow with the result.
    • True or False: The node is immediately operative, by force the initialization of the "undefined" inputs with "true" or "false".

    Remember latest input values after reboot

    If checked, the input values are retained after a node-red reboot. That means, that if you reboot your node-red, you don't need to wait all inputs to arrive and initialize the node, before the node can output a payload.
    Every time you modify the node's config, the retained values are cleared.

    Reject non boolean (true/false) input values

    If checked, the node will accept only boolean true/false values. Otherwise, it will try to convert the payload to a logic value true/false (including "on" and "off" values, sent, for example, from HomeAssistant).

    INPUT MSG TO THE NODE

    msg.reset = true; Resets all inputs to undefined.




    INTERRUPT FLOWS ULTIMATE

    Whenever this node receives a payload = false from a specific topic, it stops output messages to the flow. As soon it receives payload = true from this topic, the output messages start to flow out again.
    The node tries to convert any arbitrary input value to a valid boolean value. It converts Homeassistant "on" and "off" to true/false values as well.

    CLICK HERE, copy and paste it into your flow [{"id":"1fd91f1f.c1fae9","type":"InterruptFlowUltimate","z":"a76c6a12.37379","name":"Interrupt Flow","triggertopic":"IsNight","x":360,"y":440,"wires":[["b9844c7f.0f306"]]},{"id":"eaa32462.398808","type":"comment","z":"a76c6a12.37379","name":"Pushbutton to switch on stairs light, only if it's night, using flow interruption","info":"","x":300,"y":400,"wires":[]},{"id":"10787f38.edfe81","type":"inject","z":"a76c6a12.37379","name":"","topic":"IsNight","payload":"true","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":130,"y":540,"wires":[["1fd91f1f.c1fae9"]]},{"id":"a6092a15.1c592","type":"inject","z":"a76c6a12.37379","name":"","topic":"IsNight","payload":"false","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":130,"y":580,"wires":[["1fd91f1f.c1fae9"]]},{"id":"21ba9c30.02abbc","type":"comment","z":"a76c6a12.37379","name":"Brightness sensor","info":"","x":130,"y":500,"wires":[]},{"id":"af131ae5.a1bfb8","type":"inject","z":"a76c6a12.37379","name":"","topic":"Pushbutton","payload":"true","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":120,"y":440,"wires":[["1fd91f1f.c1fae9"]]},{"id":"b9844c7f.0f306","type":"debug","z":"a76c6a12.37379","name":"Temporized Stairs Lightbulb","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","x":600,"y":440,"wires":[]}]

    In this other example, you can see the property "play" in action. This property allow you to replay the last previously stored message.
    This allow to save the state of a node and then replay it back whenever you want.

    CLICK HERE, copy and paste it into your flow [{"id":"9839dd47.81b2c8","type":"InterruptFlowUltimate","z":"1b769f85.fba14","name":"Interrupt Flow","triggertopic":"trigger","x":520,"y":260,"wires":[["d371d690.1e2fe8"]]},{"id":"568deb73.394fb4","type":"comment","z":"1b769f85.fba14","name":"1) Push buttons to change values","info":"","x":130,"y":100,"wires":[]},{"id":"e1c9f10a.0ba518","type":"inject","z":"1b769f85.fba14","name":"ALLOW","topic":"trigger","payload":"true","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":70,"y":320,"wires":[["9839dd47.81b2c8"]]},{"id":"82ba24f9.0f0bd8","type":"inject","z":"1b769f85.fba14","name":"INTERRUPT","topic":"trigger","payload":"false","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":90,"y":280,"wires":[["9839dd47.81b2c8"]]},{"id":"23ba4f9c.86de9","type":"comment","z":"1b769f85.fba14","name":"2) Push INTERRUPT, then try again to change value (1)","info":"","x":200,"y":240,"wires":[]},{"id":"24671ef2.4519e2","type":"inject","z":"1b769f85.fba14","name":"","topic":"","payload":"true","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":70,"y":140,"wires":[["9839dd47.81b2c8"]]},{"id":"d371d690.1e2fe8","type":"debug","z":"1b769f85.fba14","name":"Debug","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","x":690,"y":260,"wires":[]},{"id":"409ec415.735d74","type":"inject","z":"1b769f85.fba14","name":"REPLAY","topic":"trigger","payload":"","payloadType":"str","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":80,"y":420,"wires":[["6653ed0.7186014"]]},{"id":"6653ed0.7186014","type":"change","z":"1b769f85.fba14","name":"Play","rules":[{"t":"set","p":"play","pt":"msg","to":"true","tot":"bool"}],"action":"","property":"","from":"","to":"","reg":false,"x":210,"y":420,"wires":[["9839dd47.81b2c8"]]},{"id":"e957a069.0ac458","type":"inject","z":"1b769f85.fba14","name":"","topic":"","payload":"false","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":70,"y":180,"wires":[["9839dd47.81b2c8"]]},{"id":"8f0af608.8fb45","type":"comment","z":"1b769f85.fba14","name":"3) Replay last message stored by the node","info":"","x":160,"y":380,"wires":[]},{"id":"46e6f455.0023ac","type":"comment","z":"1b769f85.fba14","name":"You can use Interruptflow, to save the state of a node, and then replay the last state as you want.","info":"","x":330,"y":60,"wires":[]}]





    INVERT ULTIMATE

    Outputs the inverted input. For example true -> false
    The input message is preserved and passed to the output pin, changing only the topic and the payload. If the input message has it's own topic, it'll be preserved as well.
    The node tries to convert any arbitrary input value to a valid boolean value. It converts Homeassistant "on" and "off" to true/false values as well.






    FILTER ULTIMATE

    This node has 2 outputs.
    If the input payload is true, the node will send true on output 1 and nothing on oputput 2
    If the input payload is false, the node will send nothing on output 1, and false on oputput 2
    The input message is preserved and passed to the output pin, changing only the topic and the payload. If the input message has it's own topic, it'll be preserved as well.
    The node tries to convert any arbitrary input value to a valid boolean value. It converts Homeassistant "on" and "off" to true/false values as well.






    BLINKER ULTIMATE

    The pourpose of this node is to blink a led or something.
    Output PIN1 : outputs the value true/false
    Output PIN2 : outputs the inverted value false/true

    Pass msg.payload = true to start blinking Pass msg.payload = false to stop blinking Pass msg.interval = 2000 to change the blinking interval

    • PIN1 stop behavior : when the blinker receives the stop message, you can select the behavior of the pin1
    • PIN2 stop behavior : when the blinker receives the stop message, you can select the behavior of the pin2

    CLICK HERE, copy and paste it into your flow [{"id":"33d76f42.58e088","type":"BlinkerUltimate","z":"c3456bd7.8ee9d8","name":"Blinker","blinkfrequency":"500","x":260,"y":340,"wires":[["ad7488b.2a1d9f8"]]},{"id":"ac0d404f.70cc","type":"inject","z":"c3456bd7.8ee9d8","name":"","topic":"","payload":"true","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":90,"y":320,"wires":[["33d76f42.58e088"]]},{"id":"bfdc64c6.06e2d","type":"inject","z":"c3456bd7.8ee9d8","name":"","topic":"","payload":"false","payloadType":"bool","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":90,"y":360,"wires":[["33d76f42.58e088"]]},{"id":"ad7488b.2a1d9f8","type":"debug","z":"c3456bd7.8ee9d8","name":"Led","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","x":410,"y":340,"wires":[]},{"id":"865e29f9.4d1e98","type":"comment","z":"c3456bd7.8ee9d8","name":"Blink a signalling led","info":"","x":110,"y":280,"wires":[]}]





    SIMPLE OUTPUT ULTIMATE

    The pourpose of this node is to send a message with payload TRUE on the first pin and FALSE on second pin, independently from the msg input.
    This is useful if you need to simply send a true or false payload.

    CLICK HERE, copy and paste it into your flow [{"id":"e1149e22.c9b298","type":"inject","z":"81a64dae.012c18","name":"","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":100,"y":820,"wires":[["6a419c72.5a4e7c"]]},{"id":"6a419c72.5a4e7c","type":"SimpleOutputUltimate","z":"81a64dae.012c18","name":"T/F","x":290,"y":820,"wires":[["8ba3f611.26beb8"],["b469193b.950598"]]},{"id":"8ba3f611.26beb8","type":"debug","z":"81a64dae.012c18","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"true","targetType":"full","x":530,"y":800,"wires":[]},{"id":"b469193b.950598","type":"debug","z":"81a64dae.012c18","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"true","targetType":"full","x":530,"y":840,"wires":[]},{"id":"2451f593.04e62a","type":"comment","z":"81a64dae.012c18","name":"Whatever the input is, output msg with payload TRUE on first and FALSE on second pin.","info":"","x":330,"y":760,"wires":[]}]





    INJECT ULTIMATE

    The pourpose of this node is to send a message with payload TRUE on the first pin, FALSE on second pin and a TOGGLE (true/false) on the third pin, by pressing the pushbutton.
    This is useful if you need to simply test your flow. The node is simpler as the default node-red inject node.

    CLICK HERE, copy and paste it into your flow [{"id":"13faaec9.cd80b9","type":"InjectUltimate","z":"81a64dae.012c18","name":"True","x":110,"y":1000,"wires":[["6557d19.c71abb"],[],[]]},{"id":"6557d19.c71abb","type":"debug","z":"81a64dae.012c18","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","x":370,"y":1080,"wires":[]},{"id":"569b3820.b056e8","type":"InjectUltimate","z":"81a64dae.012c18","name":"False","x":110,"y":1080,"wires":[[],["6557d19.c71abb"],[]]},{"id":"189399f.c384f66","type":"InjectUltimate","z":"81a64dae.012c18","name":"Toggle","x":110,"y":1160,"wires":[[],[],["6557d19.c71abb"]]},{"id":"56119644.8c4bf8","type":"comment","z":"81a64dae.012c18","name":"Inject Ultimate. Simple and efficient.","info":"","x":180,"y":940,"wires":[]}]





    STATUS ULTIMATE

    The pourpose of this node is to show a status of the passingthrough message.

    Show msg.

    • Write here the property you want to get the status from. For example, "payload", "mycar.color", etc.

    CLICK HERE, copy and paste it into your flow [{"id":"8c1648bf.58e6","type":"StatusUltimate","z":"5c2de561.6a0de4","name":"Status","property":"testobject.color","x":90,"y":180,"wires":[["b96cd259.3f8398"]]},{"id":"3beb9c6.90d1e64","type":"function","z":"5c2de561.6a0de4","name":"Dummy msg","func":"msg.payload = \"The payload is \" + msg.payload;\nmsg.myproperty = \"This is my custom property\";\nmsg.testobject = {len : 100, color : \"blue\"};\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":230,"y":100,"wires":[["8c1648bf.58e6"]]},{"id":"84080b79.df3f38","type":"debug","z":"5c2de561.6a0de4","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"true","targetType":"full","statusVal":"","statusType":"auto","x":710,"y":180,"wires":[]},{"id":"b534d2ec.635398","type":"InjectUltimate","z":"5c2de561.6a0de4","name":"Inject","topic":"1","curVal":true,"x":90,"y":100,"wires":[[],[],["3beb9c6.90d1e64"]]},{"id":"9745c77a.0361b","type":"comment","z":"5c2de561.6a0de4","name":"View the status of a message passing through the StatusUltimate node","info":"","x":270,"y":40,"wires":[]},{"id":"b96cd259.3f8398","type":"StatusUltimate","z":"5c2de561.6a0de4","name":"Status","property":"payload","x":230,"y":180,"wires":[["ac2b784b.b44a48"]]},{"id":"ac2b784b.b44a48","type":"StatusUltimate","z":"5c2de561.6a0de4","name":"Status","property":"myproperty","x":450,"y":180,"wires":[["84080b79.df3f38"]]}]





    IMPULSE ULTIMATE

    The pourpose of this node is to send a sequence of pulsed commands to for example, open a garage door or to command an appliance requiring a set of timed commands.

    CLICK HERE, copy and paste it into your flow [{"id":"6fc25e59990d5955","type":"ImpulseUltimate","z":"5ed79f4a958a1f20","name":"Turn on the fan at level 1","commandText":"// Turn on the fan (must be sent as first command ever\n// even if the fan is already off)\nsend:true\nwait:300\nsend:false\nwait:3000\n// Reset the fan\nsend:true\nwait:2000\nsend:false\nwait:3000\n// Speed 1\nsend:true\nwait:300\nsend:false","x":410,"y":140,"wires":[["7a2ea180e17e513c"]]},{"id":"0d7de5c606ecaf92","type":"InjectUltimate","z":"5ed79f4a958a1f20","name":"START THE FAN","topic":"1","curVal":true,"x":130,"y":120,"wires":[["6fc25e59990d5955"],[],[]]},{"id":"7a2ea180e17e513c","type":"debug","z":"5ed79f4a958a1f20","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"true","targetType":"full","statusVal":"","statusType":"auto","x":620,"y":140,"wires":[]},{"id":"333733dffda4dc56","type":"InjectUltimate","z":"5ed79f4a958a1f20","name":"BLOCK SCRIPT","topic":"1","curVal":true,"x":130,"y":200,"wires":[[],["6fc25e59990d5955"],[]]},{"id":"cdae7e4bc0835e4f","type":"comment","z":"5ed79f4a958a1f20","name":"This example turns on a \"LucePlan Blow\" fan and set it's speed to 1","info":"","x":260,"y":60,"wires":[]}]

    Avaiable Commands
    Commands are to be wrote in the format: command:value. For example send:200, wait:2000. Each row represents a command.

    send
    sends a value. For example: send:true or send:100 or send:Hello

    wait
    wait for specified time (in milliseconds). For example wait:500 waits for 500 milliseconds

    restart
    Restart the sequence from the beginning. Use restart alone, without : and extra value. For example restart

    //
    comment. For example: // This opens the garage. The comment are ignored, so you can write what you want.

    Pass msg.payload = true to the node to start the sequence Pass msg.payload = false to the node to stop the running sequence

    • Output: the node outputs a message you specified in the command textbox

    Install

    npm i node-red-contrib-boolean-logic-ultimate
