ioBroker.zigbee

Number of Installations Number of Installations NPM version Downloads Tests

NPM

ioBroker adapter for Zigbee devices via TI cc2531/cc2530/cc26x2r/cc2538 and deCONZ ConBee/RaspBee.

With the Zigbee-coordinator based on Texas Instruments SoC cc253x (and others models) or deCONZ ConBee/RaspBee modules, it creates its own zigbee-network, into which zigbee-devices are connected. By work directly with the coordinator, the driver allows you to manage devices without additional application / gateways / bridge from device manufacturers (Xiaomi / TRADFRI / Hue / Tuya). About the device Zigbee-network can be read here (in English).

Hardware

Texas Instruments SoC

For work, you need one of the following devices, flashed with a special ZNP firmware: cc2531, cc2530, cc26x2r, cc2538

The necessary equipment for the firmware and the device preparation process are described here (in English) or here (in Russian)

Dresden Elektronik SoC

(experimental support)

ConBee I ConBee II RaspBee

Work with adapter

To start the driver, you must specify the name of the port on which the Zigbee-module (stick) is connected. Usually this is the port /dev/ttyACM0 or /dev/ttyUSB0 for the UART-connection. Or you can find with ls -l /dev/serial/by-id the device direct.

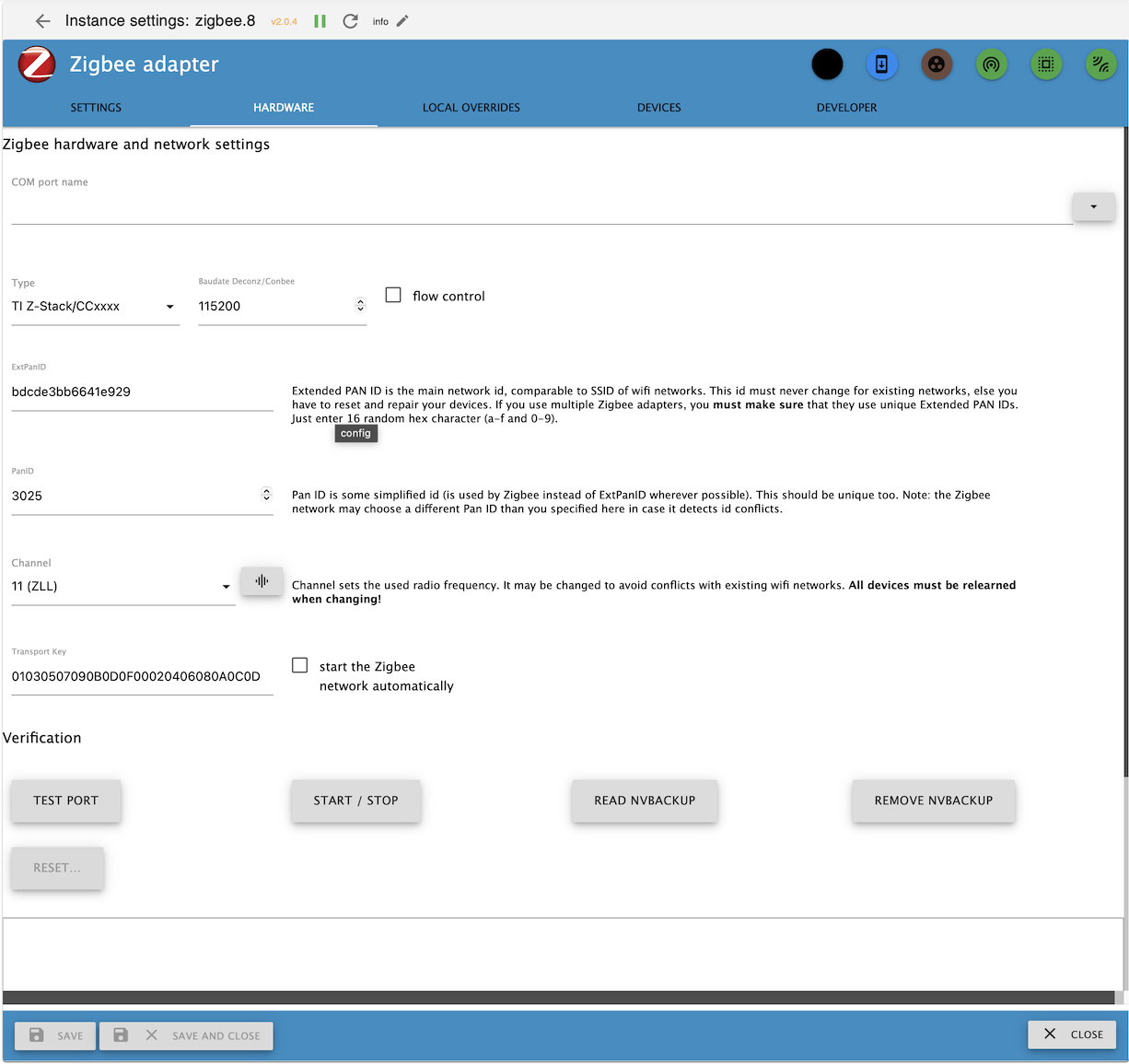

open the settings and change port

For Windows this will be the COM port number.

Starting from version 1.0.0 you can also use tcp connection for cases using esp8266 (or other microcontrollers) as serial-bridge. For example tcp://192.168.1.46:8880. Read more info here https://www.zigbee2mqtt.io/information/connecting_cc2530#via-an-esp8266

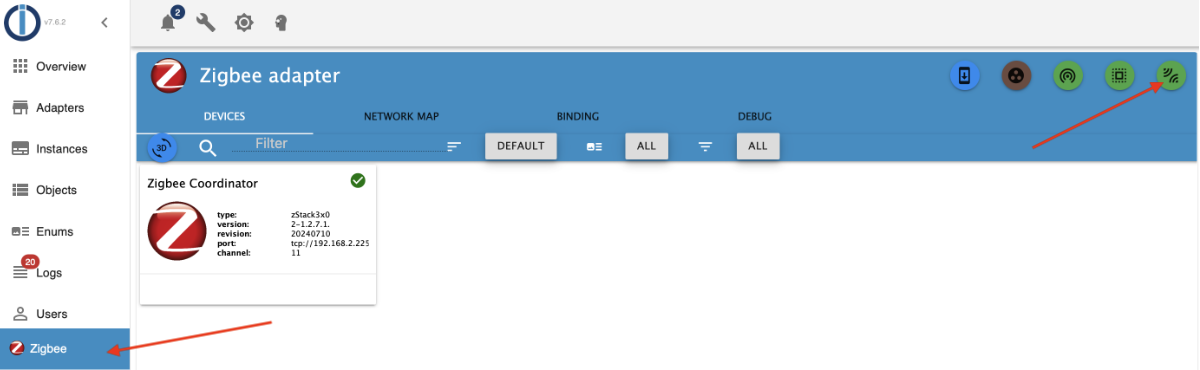

To connect devices, you need to switch the Zigbee-coordinator to pairing mode by pressing the green button. The countdown will begin (60 seconds) until the device connectivity is available. To connect Zigbee devices in most cases, just press the pairing button on the device itself. But there are features for some devices. More information about pairing with devices can be found here (in English)

After successful pairing, the device appears in the configuration panel. If the device appears in the configuration panel but has the type "undefined", then this is an unknown device and can not be work with it. If the device is in the list of available devices, but added as "undefined", then try to remove the device and add it again.

The devices connected to the Zigbee-network and inform the coordinator of their status and events (button presses, motion detection, temperature change). This information is reflected in the ioBroker object-states. Some ioBroker states have feedback and send commands to the zigbee-device when the value changes (switching the state of the outlet or lamp, changing the scene or the brightness of the lamp).

Device Groups

You may create groups of devices.

It is a Zigbee feature, intended for example to switch bulbs synchronized. Assign groups via device tabs edit button. A group will show as own "device" in Objects.

Note: Not all devices support groups (not supported by end devices like sensors).

Network Map

Binding

https://www.zigbee2mqtt.io/information/binding

Developer Tab

This is a tool for advanced users to test currently unsupported devices or enhance this adapters functionality. More instructions can be found on tab.

Additional info

There is a friendly project with similar functionality on the same technologies, where you can work with the same devices using the MQTT protocol. Therefore, if any improvements or support for new zigbee-devices occur in the Zigbee2MQTT project, we can transfer and add the same functionality to this adapter. If you notice this, then write the issue - we'll postpone it.

There are knowledge bases that can be useful for working with Zigbee-devices and equipment:

Supported devices

Works with devices from this list https://github.com/ioBroker/ioBroker.zigbee/wiki/Supported-devices

Donate

You can thank the authors by these links:

Changelog

1.3.0 (2020-10-)

  • More stable (zigbee-herdsman)
  • Backup prior database and nv-data (for z-stack 3) before start adapter
  • Allow to select bind cluster
  • Admin Tab support (experimental)
  • (UncleSamSwiss, DutchmanNL) Translation
  • New devices by: arteck, kirovilya, Shade, krumbholz, fre, Alex18081, ae, asgothian, Strunzdesign, kairauer, VLGorskij, Hesse-Bub, PaulchenPlump, blackrozes

1.2.1 (2020-08-16)

  • Fixes after changing device identify method
  • (Garfonso) Allow to unbind from coordinator

1.2.0 (2020-08-09)

  • Serialport 9.0.0. (zigbee-herdsman)
  • Drop support Node < 10 (zigbee-herdsman)
  • Device now identify (for zigbee-herdsman-converters) by model not zigbeeModel

Improvements and fixes:

  • (Strunzdesign) Fixed the mapping between bulb levels and adapter levels
  • (kirovilya) Fix ota for unavailable devices
  • (kirovilya) Lazy states - created only when an event arrives
  • (kirovilya) States generator - states are created depending on the device and its endpoints
  • (Shade) Fixed WXKG11LM clicks
  • (allofmex) Improved DeveloperTab logs
  • (allofmex) Add humidity and temperature calibration state to Tuya RH3052
  • (kirovilya) Fixed a typo due to which extPanID was not set
  • (allofmex) Retry reconnect gateway all the time for tcp connected gateway
  • (kirovilya) Allow to collect zigbee-herdsman logs to iobroker logs
  • (kirovilya) Additional states for QBKG12LM

New devices:

  • (kirovilya) BlitzWolf BW-IS3, Paulmann 500.67, Paulmann 798.09
  • (kirovilya) DiY Geiger counter https://modkam.ru/?p=1591
  • (kirovilya) DiY 8 Relays + 8 switches https://modkam.ru/?p=1638
  • (kirovilya) DiY Freepad https://github.com/diyruz/freepad
  • (kirovilya) Neo Zigbee Siren Alarm https://szneo.com/en/products/show.php?id=241
  • (Shade) RB 278 T
  • (arteck) TS0601_thermostat
  • (arteck) TS0121
  • (arteck) GL-D-004Z
  • (Shade) WXKG07LM
  • (drohne200) 1746430P7
  • (sebastian) 4058075816459
  • (itProfi) SGMHM-I1
  • (arteck) owvfni3
  • (arteck) TS0001, TS0111
  • (Daniel Dreier) Paulmann 500.45
  • (arteck) ZK-EU-2U
  • (Newan) Busch-Jaeger 6735/6736/6737
  • (andrico21) ZM-L03E-Z
  • (arteck) 915005106701, 9290018187B
  • (frankjoke) HGZB-20-UK, GL-W-001Z
  • (arteck) 4034031P7, 3435011P7
  • (arteck) TS0041
  • (agross) 5062231P7, 5062431P7
  • (kirovilya) TI0001-switch, TI0001-socket
  • (arteck) RB 178 T
  • (arteck) HGZB-07A, AV2010/22, AV2010/22A, TS0041, TS0043
  • (nbars) E1744
  • (Florian Look) GS361A-H04
  • (arteck) ICZB-IW11SW
  • (kirovilya) HS2WD-E
  • (Sacred-Shadow) FL 130 C
  • (arteck) HS3SA, 9290022169, 4096730U7, AC10787, SP 220, SP 222, SP 224, 07004D, BW-IS2, InstaRemote
  • (kirovilya) MCLH-08, MCLH-05
  • (Sacred-Shadow) 1746130P7
  • (mar565) GUNNARP panel round
  • (Erdnuss3003) 4090531P7

1.1.1 (2020-04-17)

  • (kirovilya) Critical. Fixed error starting adapter if cc-chip was only flashed
  • (kirovilya) Nue/3A FNB56-ZSW02LX2.0
  • (Strunzdesign) Added missing raw button events for Philips Hue Smart Button ROM001
  • (Sacred-Shadow) Fix Color for Outdoor Lantern W RGBW OSRAM

1.1.0 (2020-04-12)

new Zigbee-herdsman features:

  • ConBee/RaspBee (experimental support) https://github.com/Koenkk/zigbee-herdsman/issues/72
  • OTA update for some devices (IKEA, OSRAM and other) https://github.com/Koenkk/zigbee2mqtt/issues/2921
  • Touchlink reset and join https://github.com/Koenkk/zigbee2mqtt/issues/2396
  • Green Power devices support https://github.com/Koenkk/zigbee2mqtt/issues/3322
  • (peterfido) iCasa KPD14S und KPD18S hinzu
  • (kirovilya) Moes Zigbee Thermostatic Radiator
  • (kirovilya) LifeControl power plug MCLH-03, bulb MCLH-02, water leak MCLH-07, door sensor MCLH-04
  • (kirovilya) Philips LCT002, LCT011, LTW015, LWG004
  • (kirovilya) Gledopto GL-C-007 with with channel
  • (MultivitaminJuice) Iluminize 511.040
  • (Sacred-Shadow) Bitron 902010/24
  • (kirovilya) Color indication of LQI and Battery icon
  • (kirovilya) Device info modal dialog
  • (arteck) Philips LCT026
  • (obakuhl) Improvements Osram switch mini
  • (arteck) Nue / 3A FB56+ZSW1GKJ2.5, LXN-1S27LX1.0
  • (agross) Philips Signe Floor and Table
  • (arteck) TRADFRI bulb E14 WS 470lm, OSRAM PAR16 TW Z3
  • (kirovilya) Smart remote controller (4 buttons)
  • (allofmex) OTA updates
  • (kirovilya) Aqara opple change mode keys (for binding)
  • (palsch) Heiman HS2WD-E siren

1.0.4 (2020-03-14)

  • (kirovilya) Philips Hue Adore Bathroom Mirror Light
  • (kirovilya) Oujiabao Gas and carbon monoxide alarm
  • (kirovilya) Tuya SOS button
  • (Erdnuss3003) Schwaiger ZBT-DIMLight-GLS0800
  • (arteck) Smart Home Pty FB56-ZCW11HG1.4, LXT56-LS27LX1.7
  • (arteck) Xiaomi plug lumi.plug.mmeu01
  • (arteck) Innr RS 228 T, RS 230 C
  • (arteck) Gledopto GL-MC-001, GL-D-003ZS
  • (allmyjoes) Bitron AV2010/21A
  • (arteck) Osram Panel TW 595 UGR22
  • (kirovilya) IKEA SURTE door WS 38x64
  • (andigandi) Philips Hue LCG002, Hue LTG002
  • (arteck) iCasa ICZB-FC
  • (arteck) Osram A60 DIM Z3
  • (arteck) Paulmann 371000001
  • (DaCHRIS) Osram PAR16 DIM Z3
  • (DaCHRIS) Philips LWG001
  • (DaCHRIS) Illuminize 511.202
  • (SchumyHao) TERNCY-SD01 knob dimmer
  • (SchumyHao) Xiaomi lumi.lock.aq1
  • (kirovilya) New eWeLink devices: button, TH sensor, contact sensor, motion sensor
  • (kirovilya) Allow pairing to routers (again)
  • (Erdnuss3003) Philips Hue LCT021
  • (root) Trust ZWLD-100 water leak sensor
  • (smartpran) Bitron AV2010/32

1.0.3 (2020-02-09)

  • (Tw1nh34d) Hornbach FLAIR LED
  • (asgothian) Hue smart button, Heiman smoke sensor
  • (kirovilya) Philips LTC014, LTC015
  • (kirovilya) Power states for QBKG11LM
  • (Garfonso) Change role for occupancy state to 'sensor.motion'
  • (kirovilya) Change illuminance state to illuminance_lux (for lux value)
  • (arteck) Philips LCF002
  • (arteck) TRADFRI open/close remote
  • (kirovilya) Tuya sensor TS0201

1.0.2 (2020-01-29)

  • (kirovilya) All button events for Aqara Opple switch
  • (ma-john) OSRAM PAR16 RGBW Z3
  • (arteck) Phillips LWA004
  • (MiniMe6666) Heiman SmokeSendor-N-3.0
  • (kirovilya) Force remove device
  • (kirovilya) Fix some networkmap bugs
  • (kirovilya) Extended info button
  • (kirovilya) Long press for WXKG01LM

1.0.1 (2020-01-23)

  • fix for old z-stack firmware

1.0.0 (2020-01-22)

  • Powered by new zigbee-herdsman library and new converters database
  • Drop support NodeJS 6
  • Serialport 8.0.5 (in zigbee-herdsman)
  • More new devices
  • Some design update
  • Binding
