Currently in htmx there are methods for enabling drag and drop behaviour for sorting elements using client side arrangement (sorting example). However this relies on client side execution, plus does not allow for more rich interactions like dragging an item from one group to another triggering a server side update.
This extension uses two top-level hx- attributes, hx-drag and hx-drop to allow different information to be added to the request if the element was the one dragged or the one dropped. These two values are parsed identically to hx-vals (without support for js: dynamic calculation), and are included with the requests issued by the drag and dropped elements.
The requests created by the hx-[drag|drop] are only sent once both the dragstart, and drop events have been completed.
The hx-drag requests will then be sent based on the hx-[drag|drop]-action on each element if present via a PUT request by default (this can be overridden with hx-[drag|drop]-method).
By default these two requests are sent in parallel, but they can be made in series using hx-[drag|drop]-sync=[drag|drop]. Within this sync property you must specify which request you want to occur first.
These two requests will include a merger of the hx-drag + hx-drop + hx-vals values. In the event of a conflict the current element's hx-[drag|drop] will override the secondary (so the hx-drag will override hx-drop values on the hx-drag-action).
hx-drag intentionally does not rely on the hx-[get|post|put|delete|patch] attributes, to allow distinguishing between regular hx-trigger events, and the more detailed hx-drag requests.
<script src="https://unpkg.com/hx-drag@2.0.0"></script>When a hx-drag starts the class hx-drag will be added to the element, with hx-drag-over being added when you are hovering over a hx-drop, and then a hx-drop class is added when you finally drop the item. This can allow you to add styling to your preference for these drag events without any JS.
Also as soon as either the hx-drag or hx-drop actions have started both elements will get the htmx-request class, even though both request may have not yet started due to hx-[drag|drop]-sync.
This repo is a set of examples of using the hx-drag extension proposal.
To run the examples, simply
- Install
npm i - Start the server with
npm run dev - Open localhost:5173

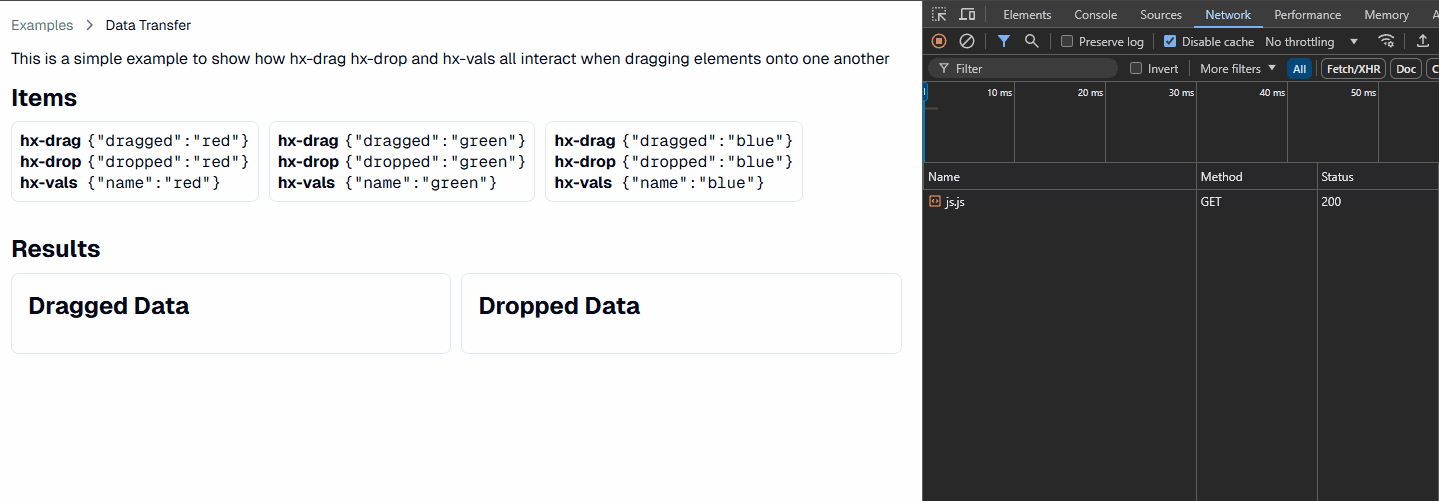

This example simply has three different divs all of which have hx-drag and hx-drop bindings to show how the value collisions hare handled.
There is a list of immutable animals at the top of the page, and user addable buckets below which animals can be dragged into, and out of, and deleted by dragging into the trash. In this example there is no server state, and all state is managed by the DOM.

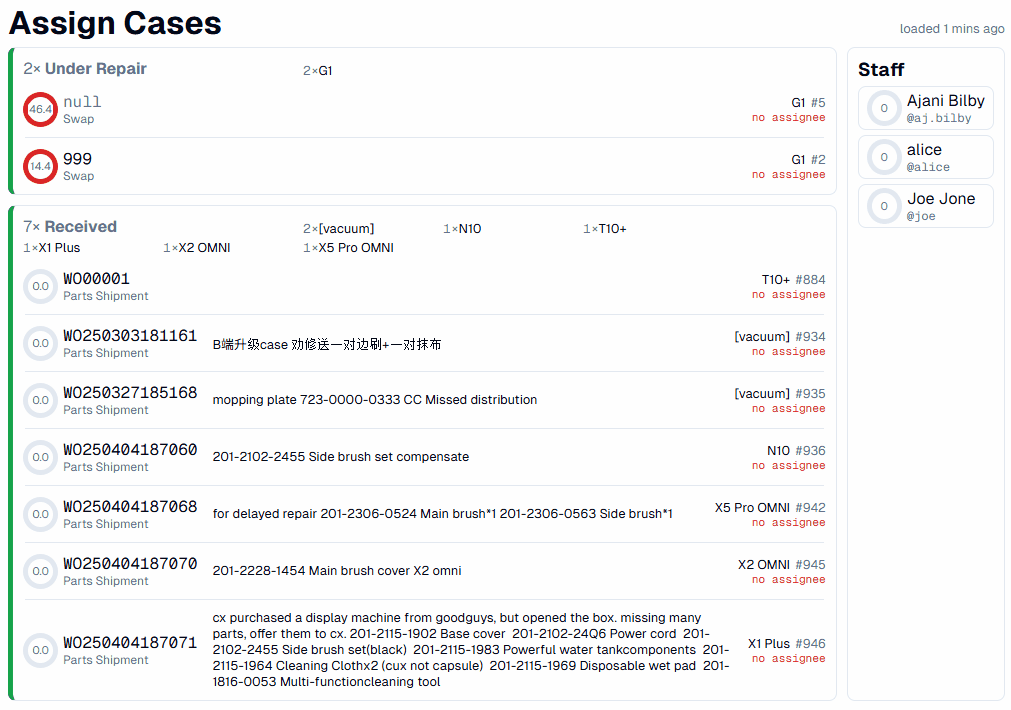

This is the most extravagant example with server and client state, with sync detection. When you drag any item onto another, the dragged item will moved to before the dropped item. This example utilizes a hx-include and hx-swap-oob to use a hidden <input name="hash"> value to detect when the client has gotten out of sync, in which case the server response with a hx-location: header, forcing the client to reload the current page using hx-boost allowing it to resync with the server state.
