@dschz/solid-lightweight-charts
TypeScript icon, indicating that this package has built-in type declarations

0.3.3 • Public • Published

solid-lightweight-charts

@dschz/solid-lightweight-charts

License Lightweight Charts npm Bundle Size JSR CI Discord

A fully typed SolidJS wrapper around TradingView's Lightweight Charts, providing declarative, reactive charting with support for time series, price, and yield curve data.

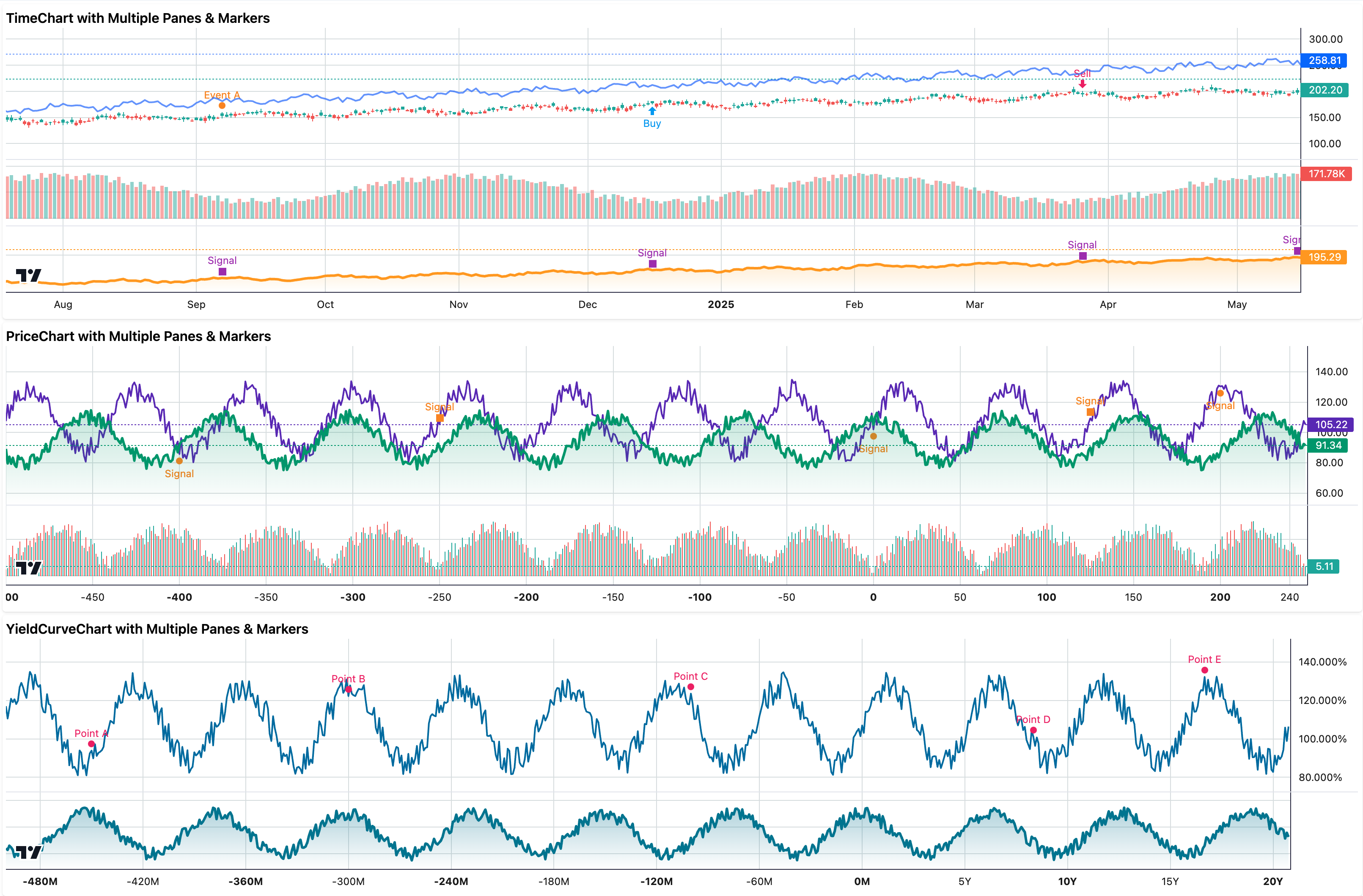

Solid Lightweight Charts Showcase

📋 Table of Contents

✨ Features

  • ⚡ SolidJS-native reactivity for all chart options and data updates
  • 🔀 Multiple chart types with specialized APIs:
    • TimeChart for time-based financial data
    • PriceChart for numeric-based price data
    • YieldCurveChart for rate curves and duration-based data
  • 📈 Built-in series support: Line, Area, Candlestick, Bar, Histogram, Baseline
  • 🎨 Custom series support with full TypeScript integration across all chart types
  • 📍 Series markers with declarative prop support and reactive updates
  • 📆 Namespaced APIs (e.g. <TimeChart.Series />, <PriceChart.Series />)
  • 📊 Multi-Pane support for advanced multi-series visualization
  • 🖼️ Pane/Series primitives for interactive drawings (trend lines, alerts, annotations)
  • 🔄 Lifecycle/Event hooks for chart, series data, primitives and markers.
  • 🔖 Core API compatibility - access underlying lightweight-charts APIs when needed
  • 🧹 Automatic cleanup and proper lifecycle management

🎉 What's New in v0.3.0

  • Major new features and improvements, including chart event subscription support, default class on chart containers, and improved sizing behavior.
  • For a full list of changes and details, see the CHANGELOG.md.

📆 Installation

Install via your favorite package manager:

npm install solid-js lightweight-charts @dschz/solid-lightweight-charts
pnpm install solid-js lightweight-charts @dschz/solid-lightweight-charts
yarn install solid-js lightweight-charts @dschz/solid-lightweight-charts
bun install solid-js lightweight-charts @dschz/solid-lightweight-charts

These are peer dependencies, so they must be installed manually:

  • solid-js
  • lightweight-charts

🚀 Quick Usage

TimeChart (Time-based Data)

import { TimeChart } from "@dschz/solid-lightweight-charts";

<TimeChart>
  <TimeChart.Series
    type="Line"
    data={[
      { time: "2023-01-01", value: 100 },
      { time: "2023-01-02", value: 105 },
    ]}
    lineWidth={2}
    color="#2962FF"
  />
</TimeChart>;

PriceChart (Numeric X-axis)

import { PriceChart } from "@dschz/solid-lightweight-charts";

<PriceChart>
  <PriceChart.Series
    type="Line"
    data={[
      { time: 0, value: 100 },
      { time: 1, value: 105 },
    ]}
    lineWidth={2}
    color="#2962FF"
  />
</PriceChart>;

YieldCurveChart (Duration-based)

import { YieldCurveChart } from "@dschz/solid-lightweight-charts";

<YieldCurveChart>
  <YieldCurveChart.Series
    type="Line"
    data={[
      { time: 0, value: 3.5 }, // 0M
      { time: 12, value: 3.8 }, // 12M
      { time: 60, value: 4.2 }, // 5Y
    ]}
    lineWidth={2}
    color="#2962FF"
  />
</YieldCurveChart>;

📏 Chart Sizing & Layout

Chart components (TimeChart, PriceChart, YieldCurveChart) do not apply any default sizing styles. You have complete control over how your charts are sized.

Understanding the Component Structure

It's important to understand that chart components have two levels of configuration:

<TimeChart
  class="h-[400px] w-full" // Applied to container div
  style={{ border: "1px solid red" }} // Applied to container div
  autoSize={true} // Passed to Lightweight Charts
  width={800} // Passed to Lightweight Charts (ignored if autoSize=true)
  height={400} // Passed to Lightweight Charts (ignored if autoSize=true)
>
  <TimeChart.Series type="Line" data={data} />
</TimeChart>

Container Level (class, style, id):

  • Controls the HTML div that wraps the chart
  • Handles sizing, positioning, borders, backgrounds, etc.
  • Uses standard CSS/HTML attributes

Chart Level (autoSize, width, height, chart options):

  • Passed directly to the underlying Lightweight Charts instance
  • Controls chart-specific behavior and rendering
  • Uses Lightweight Charts API

How to Size Your Charts

Option 1: CSS Classes (Recommended)

<TimeChart class="h-[400px] w-full">
  <TimeChart.Series type="Line" data={data} />
</TimeChart>

Option 2: Inline Styles

<TimeChart style={{ height: "400px", width: "100%" }}>
  <TimeChart.Series type="Line" data={data} />
</TimeChart>

Option 3: Fixed Dimensions (autoSize=false)

<TimeChart autoSize={false} width={800} height={400}>
  <TimeChart.Series type="Line" data={data} />
</TimeChart>

Understanding autoSize

  • autoSize: true (default): Chart fills its container div. The width and height props are ignored.
  • autoSize: false: Chart uses explicit width and height props for fixed dimensions.

Key Point: When autoSize={true}, the chart will automatically resize to match whatever size you've given the container div via class or style.

Container Class

All chart containers include the solid-lwc-container class for easy global styling:

.solid-lwc-container {
  height: 400px;
  width: 100%;
}

Common Patterns

Responsive with Tailwind:

<TimeChart class="h-[400px] w-full md:h-[500px]">
  <TimeChart.Series type="Line" data={data} />
</TimeChart>

Fixed size for specific use cases:

<TimeChart autoSize={false} width={600} height={300}>
  <TimeChart.Series type="Line" data={data} />
</TimeChart>

Parent container sizing:

<div class="h-[400px] w-full">
  <TimeChart style={{ height: "100%", width: "100%" }}>
    <TimeChart.Series type="Line" data={data} />
  </TimeChart>
</div>

Container styling + chart options:

<TimeChart
  class="h-[500px] w-full border rounded-lg shadow"
  rightPriceScale={{ visible: true }}
  timeScale={{ timeVisible: true }}
>
  <TimeChart.Series type="Line" data={data} />
</TimeChart>

Important: Charts need explicit dimensions to render. If you see a blank chart, make sure you've provided sizing through CSS classes, inline styles, or fixed dimensions.

📊 Chart Examples

Multiple Panes and Markers

import { TimeChart } from "@dschz/solid-lightweight-charts";

<TimeChart>
  {/* Main pane with price data and declarative markers */}
  <TimeChart.Series
    type="Candlestick"
    data={candleData}
    markers={(data) => [
      {
        time: data[10].time,
        position: "aboveBar",
        color: "#f68410",
        shape: "circle",
        text: "Buy",
      },
      {
        time: data[20].time,
        position: "belowBar",
        color: "#e91e63",
        shape: "arrowDown",
        text: "Sell",
      },
    ]}
    onSetMarkers={(markers) => console.log("Markers updated:", markers)}
  />

  {/* Secondary pane with volume */}
  <TimeChart.Pane>
    <TimeChart.Series
      type="Histogram"
      data={volumeData}
      priceScaleId="volume"
      color="rgba(76, 175, 80, 0.8)"
    />
  </TimeChart.Pane>
</TimeChart>;

Custom Series

import { TimeChart } from "@dschz/solid-lightweight-charts";

// Define your custom pane view
const customPaneView = {
  updateAllViews() {
    /* implementation */
  },
  paneViews() {
    /* implementation */
  },
  priceValueBuilder(plotRow) {
    /* implementation */
  },
  isWhitespace(data) {
    /* implementation */
  },
  defaultOptions() {
    /* implementation */
  },
};

<TimeChart>
  <TimeChart.CustomSeries
    paneView={customPaneView}
    data={customData}
    onCreateSeries={(series) => console.log("Custom series created:", series)}
  />
</TimeChart>;

Series Primitives

import { TimeChart, type SeriesPrimitive } from "@dschz/solid-lightweight-charts";
import type {
  ISeriesPrimitiveAxisView,
  IPrimitivePaneView,
  IPrimitivePaneRenderer,
  Time,
  SeriesAttachedParameter,
} from "lightweight-charts";

// Trend line primitive with proper TypeScript implementation
class TrendLinePrimitive implements SeriesPrimitive<"Line", Time> {
  private _paneViews: TrendLinePaneView[];
  private _point1: { time: Time; value: number };
  private _point2: { time: Time; value: number };

  constructor(point1: { time: Time; value: number }, point2: { time: Time; value: number }) {
    this._point1 = point1;
    this._point2 = point2;
    this._paneViews = [new TrendLinePaneView(this)];
  }

  updateAllViews() {
    this._paneViews.forEach((pv) => pv.update());
  }

  paneViews() {
    return this._paneViews;
  }

  attached(param: SeriesAttachedParameter<Time, "Line">) {
    // Implementation for when primitive is attached
  }

  detached() {
    // Cleanup when primitive is detached
  }

  getPoint1() {
    return this._point1;
  }
  getPoint2() {
    return this._point2;
  }
}

class TrendLinePaneView implements IPrimitivePaneView {
  private _source: TrendLinePrimitive;
  private _renderer: TrendLinePaneRenderer;

  constructor(source: TrendLinePrimitive) {
    this._source = source;
    this._renderer = new TrendLinePaneRenderer();
  }

  update() {
    this._renderer.setData({
      point1: this._source.getPoint1(),
      point2: this._source.getPoint2(),
    });
  }

  renderer() {
    return this._renderer;
  }

  zOrder() {
    return "normal" as const;
  }
}

class TrendLinePaneRenderer implements IPrimitivePaneRenderer {
  private _data: { point1: any; point2: any } | null = null;

  setData(data: { point1: any; point2: any } | null) {
    this._data = data;
  }

  draw(target: any) {
    if (!this._data) return;
    // Canvas 2D rendering implementation
    target.useBitmapCoordinateSpace((scope: any) => {
      const ctx = scope.context;
      // Draw trend line using this._data.point1 and this._data.point2
      // ... drawing logic
    });
  }
}

const trendLine = new TrendLinePrimitive(
  { time: "2023-01-01" as Time, value: 100 },
  { time: "2023-01-10" as Time, value: 120 },
);

<TimeChart>
  <TimeChart.Series
    type="Line"
    data={priceData}
    primitives={[trendLine]}
    onAttachPrimitives={(primitives) => console.log("Primitives attached:", primitives)}
  />
</TimeChart>;

Pane Primitives

import { TimeChart, type PanePrimitive } from "@dschz/solid-lightweight-charts";
import type {
  IPanePrimitivePaneView,
  IPrimitivePaneRenderer,
  PaneAttachedParameter,
  Time,
} from "lightweight-charts";

// Watermark primitive with proper TypeScript implementation
class WatermarkPrimitive implements PanePrimitive<Time> {
  private _paneViews: WatermarkPaneView[];
  private _text: string;
  private _color: string;
  private _fontSize: number;

  constructor(text: string, color = "rgba(128, 128, 128, 0.3)", fontSize = 48) {
    this._text = text;
    this._color = color;
    this._fontSize = fontSize;
    this._paneViews = [new WatermarkPaneView(this)];
  }

  updateAllViews() {
    this._paneViews.forEach((pv) => pv.update());
  }

  paneViews() {
    return this._paneViews;
  }

  attached(param: PaneAttachedParameter<Time>) {
    // Pane primitives can use this for initialization
  }

  detached() {
    // Cleanup if needed
  }

  getText() {
    return this._text;
  }
  getColor() {
    return this._color;
  }
  getFontSize() {
    return this._fontSize;
  }
}

class WatermarkPaneView implements IPanePrimitivePaneView {
  private _source: WatermarkPrimitive;
  private _renderer: WatermarkPaneRenderer;

  constructor(source: WatermarkPrimitive) {
    this._source = source;
    this._renderer = new WatermarkPaneRenderer();
  }

  update() {
    this._renderer.setData({
      text: this._source.getText(),
      color: this._source.getColor(),
      fontSize: this._source.getFontSize(),
    });
  }

  renderer() {
    return this._renderer;
  }

  zOrder() {
    return "bottom" as const;
  }
}

class WatermarkPaneRenderer implements IPrimitivePaneRenderer {
  private _data: { text: string; color: string; fontSize: number } | null = null;

  setData(data: { text: string; color: string; fontSize: number } | null) {
    this._data = data;
  }

  draw(target: any) {
    if (!this._data) return;

    target.useBitmapCoordinateSpace((scope: any) => {
      const ctx = scope.context;
      const { width, height } = scope.bitmapSize;

      ctx.save();
      ctx.font = `${this._data!.fontSize}px Arial`;
      ctx.fillStyle = this._data!.color;
      ctx.textAlign = "center";
      ctx.textBaseline = "middle";

      // Draw watermark in center of pane
      ctx.fillText(this._data!.text, width / 2, height / 2);
      ctx.restore();
    });
  }
}

const watermark = new WatermarkPrimitive("DEMO CHART");

<TimeChart>
  <TimeChart.Series type="Line" data={priceData} />

  <TimeChart.Pane
    primitives={[watermark]}
    onAttachPrimitives={(primitives) => console.log("Pane primitives attached")}
  >
    <TimeChart.Series type="Histogram" data={volumeData} />
  </TimeChart.Pane>
</TimeChart>;

💡 Complete Examples: For fully working primitive implementations with comprehensive TypeScript types, see the interactive examples in our playground:

🛠 Playground & Examples

See playground/App.tsx for a complete working showcase with live interactive examples:

Core Chart Types:

  • TimeChart with multiple panes (Candlestick+Line, Volume, Area) and series markers
  • PriceChart with multiple panes (Line+Area, Histogram) and series markers
  • YieldCurveChart with multiple panes (Line, Area) and series markers

Advanced Features (New in v0.2.0):

  • Series Primitives Example - Interactive trend lines, support/resistance levels, price alerts, and text annotations
  • Pane Primitives Example - Watermarks, custom grid overlays, and corner badges with live updates
  • Custom Series Integration - Complete examples with proper TypeScript interfaces
  • Dynamic Management - Real-time updates, lifecycle management, and memory optimization

Run the playground locally:

git clone https://github.com/dsnchz/solid-lightweight-charts
cd solid-lightweight-charts
bun install
bun start

📚 Resources

Full documentation and advanced guides coming soon.

📄 License

MIT © Daniel Sanchez

Readme

Keywords

Package Sidebar

Install

npm i @dschz/solid-lightweight-charts

Repository

github.com/dsnchz/solid-lightweight-charts

Homepage

github.com/dsnchz/solid-lightweight-charts#readme

Weekly Downloads

156

Version

0.3.3

License

MIT

Unpacked Size

96.4 kB

Total Files

6

Last publish

Collaborators

  • dsanc89
Try on RunKit
Report malware
