@appliedminds/amber-radiance-1

Amber Radiance 1 Control Interface

Unofficial Node.js API for controlling Raytheon/Amber Radiance 1 IR Cameras.

Features:

• Getting camera status
• Changing brightness / contrast
• Running calibrations
• Toggling cryo cooler
• Changing automatic gain control (AGC) modes
• Changing intensity transform table (ITT) modes
• Changing look-up table (LUT) modes
• Changing non-uniformity correction (NUC) modes

Contents

• Background
• Requirements
• Installation
• Examples
• API Docs
• License

Background

The Radiance 1 Infrared camera was developed by Amber Engineering, a engineering company started in 1981 and purchased in 1992 by Raytheon Missile Systems. Rebranded to Raytheon Amber, they released this camera around 1993.

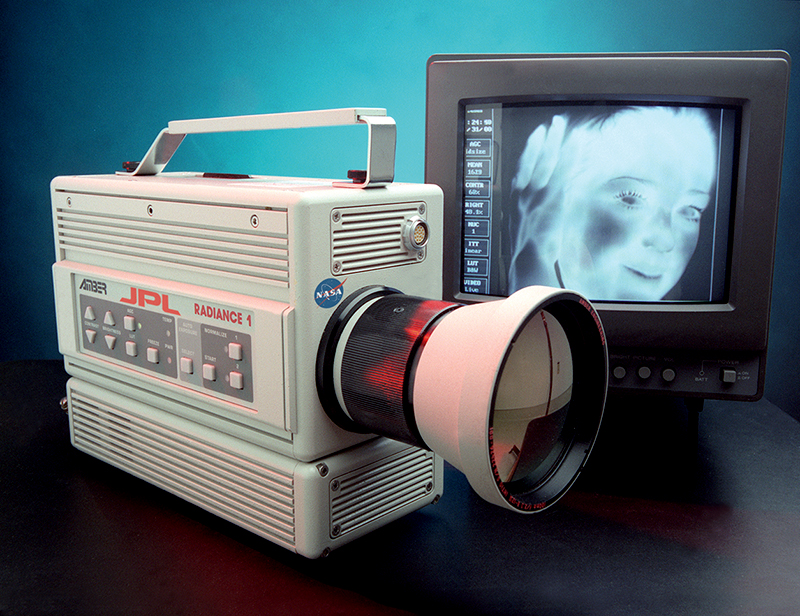

(Pictured: NASA Spinoff camera based on an Amber Radiance 1. Image credit: NASA)

In 1998, Raytheon Amber closed shop and merged with Hughes Defense, after which much of the tools and documentation for their cameras became more difficult to find.

Many of these cameras still exist and can provide impressive IR imaging, albeit in a relatively low resolution, but the software required to control it is long obsolete and requires a license that can no longer be obtained. Some of the functionality has been reverse-engineered and included in this library so others may breathe new life into these devices.

For more background stories on these cameras, see Fraser's Quest on EEVblog.

Requirements

• Node.js 20+

Installation

npm install @appliedminds/amber-radiance-1

Usage / Examples

Via Serial

import { Camera } from '@appliedminds/amber-radiance-1'

const camera = new Camera({ port: '/dev/tty21', transport: 'serial' })
await camera.connect()

// Set NUC mode
await device.setNUC('warm')

// Set LUT mode
await device.setLUT('black-and-white')

// Turn off Cryo Cooler
await device.setCooler(false)

Via TCP

This assumes you're using some sort of RS-232/TCP pass-through device, such as a Moxa NPort

import { Camera } from '@appliedminds/amber-radiance-1'

const camera = new Camera({ host: '192.168.100.50', port: 4001, transport: 'tcp' })
await camera.connect()

// Get power and cooler cycles
console.log(await camera.getStatus())

API Docs

new Camera({ port : String/Number, host?: String, verbose?: Boolean, transport?: String })

Constructor

• port:
  • When transport set to tcp: TCP port
  • When transport set to serial: Qualified path on MacOS/Linux (E.G. /dev/some/device/path), COM port on Windows (E.G. COM3)
• host: Host or IP address to connect to (only when transport set to tcp)
• verbose: Print additional debug logs
• transport: Method to connect to device (serial or tcp) (default: tcp)

camera.close() : <Promise>

Manually close connection. Resolves once the connection has been closed.

camera.connect() : <Promise>

Connect to camera. The returned promise will resolve once connected.

camera.getAGC() : <Promise<Boolean>>

Check if Automatic Gain Control is turned off or on.

camera.getITT() : <Promise<String>>

Return active intensity transform table mode (linear, inverse, s-curve or two-cycle)

camera.getLUT() : <Promise<String>>

Return active look-up table mode (black-and-white, color or sepia)

camera.getNUC() : <Promise<String>>

Return active non-uniformity correction mode (cold, mid, warm or hot)

camera.getStatus() : <Promise<Object>>

Return camera status information. Resolves to an object containing the following keys:

• numCoolerCycles: Number of times the cryo cooler has been cycled
• numPowerCycles: Number of times the device power has been cycled
• coolerTime: A timestamp indicating cooler time, although it's unclear how this is supposed to be interpreted.

camera.invertImage() : <Promise>

Vertically invert the output image.

camera.run1PointCalibration() : <Promise>

Initiate the single point calibration process for the current NUC mode.

camera.run2PointCalibration() : <Promise>

Initiate the two-point calibration process for the current NUC mode.

camera.setBrightness(delta : Number) : <Promise>

Change relative brightness

• delta: Increase brightness when > 0, otherwise decrease

camera.setCooler(enabled : Boolean) : <Promise>

Toggle cryo cooler operation.

camera.setContrast(delta : Number) : <Promise>

Change relative contrast

• delta: Increase contrast when > 0, otherwise decrease

camera.setAGC(mode : String) : <Promise>

Set automatic gain control mode

• mode: Set AGC to full, midsize, center, horizon or off to turn off.

camera.setITT(mode : String) : <Promise>

Set intensity transform table used for transforming the output values for display.

• mode: linear, inverse, s-curve, or two-cycle

camera.setLUT(mode : String) : <Promise>

Set the look-up table used for coloring the output image.

• mode: black-and-white, color or sepia

camera.setNUC(mode : String) : <Promise>

Set current non-uniformity correction mode.

• mode: cold, mid, warm or hot

camera.toggleColorBar(enabled : Boolean) : <Promise>

Toggle the on-screen color bar legend on or off.

camera.toggleFreezeFrame() : <Promise>

Toggle freeze frame mode.

camera.toggleOSD(enabled : Boolean) : <Promise>

Show or hide the on-screen display sidebar.
